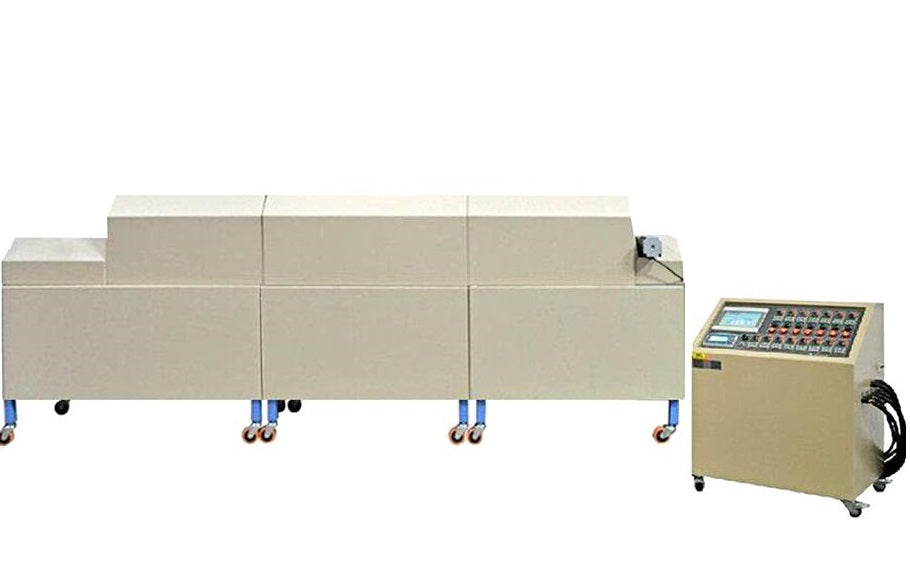

1000°C Seven Zones Conveyer Belt Furnace (W150x L2000 mm) w/ Temperature Control - KSL-1200X-BF6

The EQ-KSL-1200X-BF6 is a 6'' wide conveyor belt furnace with the concept of a continuous process of various materials. It is a perfect pilot-scale manufacturing tool for thick film, the electronic component firing process, photovoltaic cells pre/post-fabrications, and sintering of ceramics & metals materials. Working pieces are carried directly on a mesh type belt and been heat treated/process through the heating modules under a protective gas atmosphere.

SPECIFICATIONS:

Main Features	Max. Working Temperatures to 1000°C The highest quality Kanthal heating wire and Omega thermal couple Automatic feed loading and product unloading A large touch screen temperature controller provides individual temperature programming for the seven heating zones Dual thermocouple temperature monitoring & control mechanism  Easy to install the three modules

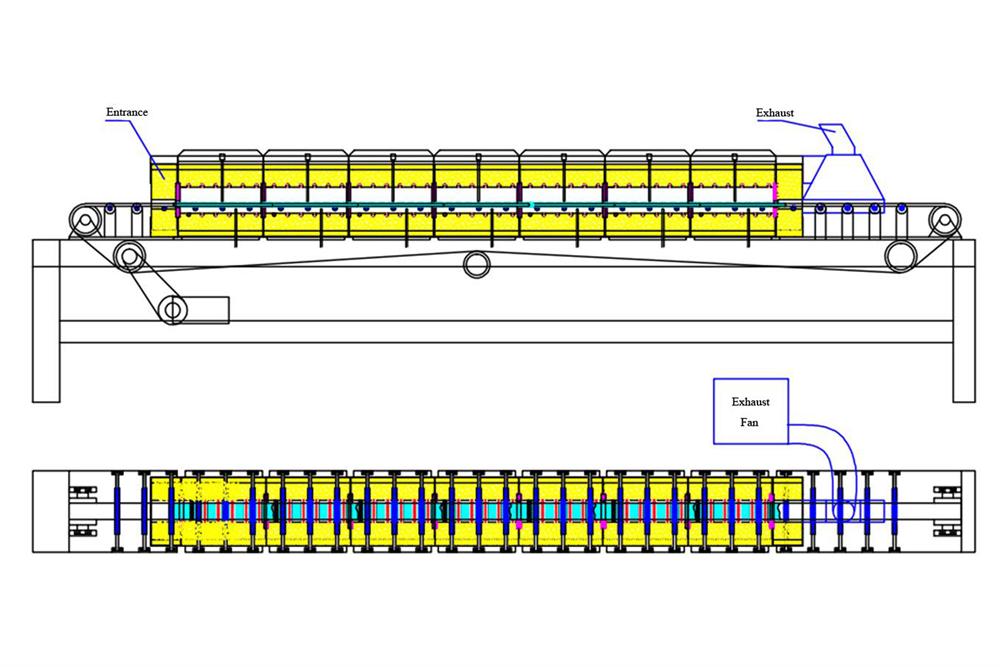

Furnace structure	Total of seven heating modules.  High purity fibrous alumina insulating systems between each module for the max energy saving Dual-layer insulation design ensures a casing surface temperature < 70C 300mm Long cooling section is integrated at the end section of the furnace Mesh type belt is supported in the furnace by a series of quartz supports.
Power	AC 208-240V Three Phase, 50/60 Hz, Current: ~50A for each phase. 19 KW Max. (~3KW for each zone) The power cord is included without a plug.
Temperature Control	Independent temperature control unit which allows a remote operation Touch Screen Controller allows individual temperature control for the seven zones Max. Working Temperature: 1050°C  Continuous Working Temperature: 900°C The heating Rate is up to 10/min 15 pcs K Type Thermocouples are installed ( 7 T/C for control and 8 T/C for the monitor ) Temp. Control Accuracy: +/-1
Heating Zone	Seven independent heating zones, each heating zone length 300 mm ( 11.8") Total zone length: 2100 mm ( 82.7'' )  Heating Zone width: 8" ( 200 mm )
Max. Sample Size allowed	6'' W x 1'' H
Conveyor Belt and Main Entrance	Mesh type conveyor belt, 130mm Wide X10 mm Thick X 6200mm Long 6'' Wide x 2" Height Entrance (Can be increased to 12'' Wide upon request) Conveyor Speed: 10 - 100 mm/second variable
Compliance	CE Certified NRTL / CSA Certification is available upon request, additional charges will apply
Application Notes Furnace in operation	Metal and ceramic sintering The thick film firing process Fast drying and curing Calcination Carbonization Gas-solid reaction Purification Metallization process of solar cell fabrication Customizations Available:  Heating models are modulized, 300mm ~2100mm L is available upon request. Heating zone width can be increased up to 12''
