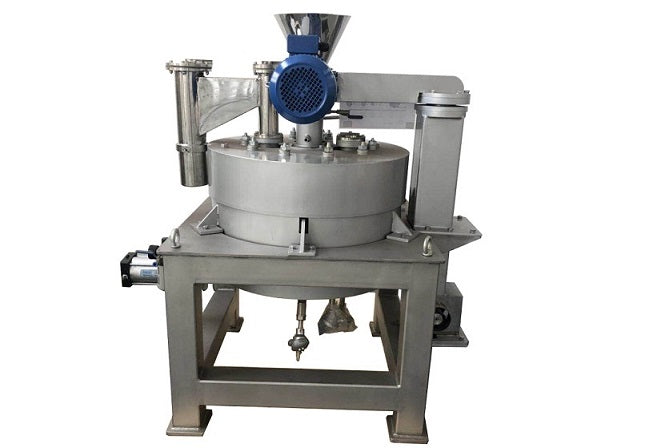

700C @15L Mixing Machine for Coating Powder by Fusion Asphaltcoal tar pitchFor Battery Materials - JVC-15
  • 700C @15L Mixing Machine for Coating Powder by Fusion Asphaltcoal tar pitchFor Battery Materials - JVC-15
  • 700C @15L Mixing Machine for Coating Powder by Fusion Asphaltcoal tar pitchFor Battery Materials - JVC-15
  • 700C @15L Mixing Machine for Coating Powder by Fusion Asphaltcoal tar pitchFor Battery Materials - JVC-15
700C @15L Mixing Machine for Coating Powder by Fusion Asphaltcoal tar pitchFor Battery Materials - JVC-15

700C @15L Mixing Machine for Coating Powder by Fusion Asphaltcoal tar pitchFor Battery Materials - JVC-15

SKU: jvc-15

Price: RFQ

Specifications

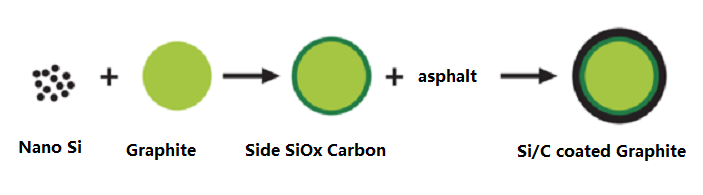

 JVC-15 originally is designed for coating battery anode powder by fusion asphalt mixing at high temperature to form a core-shell structure of carbon, Si or SiOx. Such artificial graphite anode material may improve Li-ion battery cycle life significantly. SPECIFICATIONS Power Supply AC 208V-240V, 50/60Hz, three Phases Total < 10 KW 70 An air beaker required Heatable Mixing Container Bottom Container: Conical mixing drum made of 310S alloy Nominal Capacity: 15 Liters Effective Capacity: 6-12 liters Output port: DN100 flange with the pneumatic valve for open and close Container Cover: made of 310S alloy lift and down by the electric motor 3" dia glass window for observation. Heating: Resistance tape on the outside of the container and cover Max. working Temperature: 700ºC PLC for temperature control with +/- 50C accuracy Mixing Blade Made of 310S alloy Rotation speed: 0- 100 RPM adjustable. Temperature Monitor Twi digital temperature monitor built in to monitor both the temperature of inside vessel and outside Compliance NRTL certification is available upon request at extra cost


Power Supply
  • AC 208V-240V, 50/60Hz, three Phases
  • Total < 10 KW
  • 70 An air beaker required

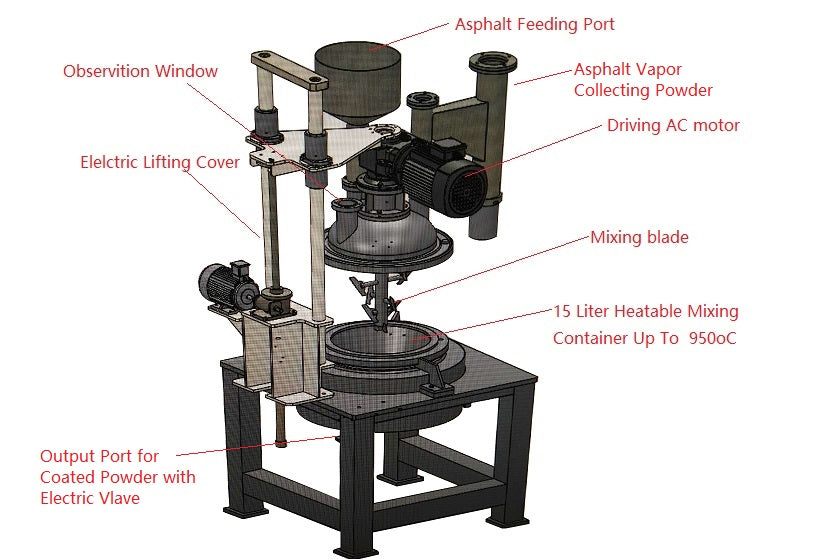

Heatable Mixing Container
  • Bottom Container:
    • Conical mixing drum made of 310S alloy
    • Nominal Capacity: 15 Liters
    • Effective Capacity: 6-12 liters
    • Output port: DN100 flange with the pneumatic valve for open and close
  • Container Cover:
    • made of 310S alloy
    • lift and down by the electric motor
    • 3" dia glass window for observation.
  • Heating:
    • Resistance tape on the outside of the container and cover
    • Max. working Temperature: 700ºC
    • PLC for temperature control with +/- 50C accuracy
Mixing Blade
  • Made of 310S alloy
  • Rotation speed: 0- 100 RPM adjustable.
Temperature Monitor

  • Twi digital temperature monitor built in to monitor both the temperature of inside vessel and outside
Compliance
