Hot Rolling Laminating Press up to 130C with Max.1200 kgf & Optional 340 / 480 / 1050 mm Width - JTFM380
  • Hot Rolling Laminating Press up to 130C with Max.1200 kgf & Optional 340 / 480 / 1050 mm Width - JTFM380
  • Hot Rolling Laminating Press up to 130C with Max.1200 kgf & Optional 340 / 480 / 1050 mm Width - JTFM380
Hot Rolling Laminating Press up to 130C with Max.1200 kgf & Optional 340 / 480 / 1050 mm Width - JTFM380

Hot Rolling Laminating Press up to 130C with Max.1200 kgf & Optional 340 / 480 / 1050 mm Width - JTFM380

SKU: jtfm380

Price: RFQ

Specifications

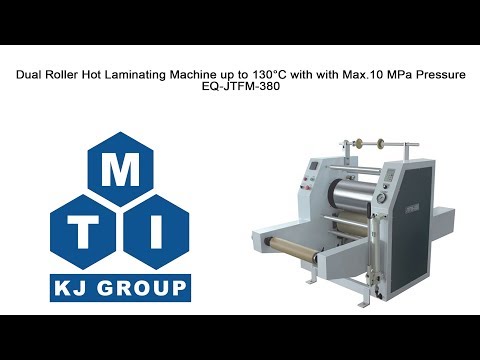

 JTFM380 DC6 is a 130°C max. double-sided laminating machine, which can apply pressure by the built-in manual hydraulic pump up to 1200 Kg force with optional widths, of 340mm, 480 mm, and 1000 mm. It is an excellent tool for research on multilayer LCP, flexible electronic devices, and solid-state Li-Ion batteries. SPECIFICATIONS: Model JTFM380 JTFM520 JTFM 1050 Laminating Width 340mm Max 480mm Max 1000 mm Max Laminating Width 3 mm Max Roller diameter Φ192×380mm Φ 192×520mm Φ 216×1050mm The top roller is made of A3 Steel and the bottom roller is made of high-temperature rubber Only the top steel roller is heated Both rollers made of SS304 are available upon request Laminating Speed 0.5-30m/min 0.5-30m/min 0.5-30 m/ min Winding motor DC motor with tension-controlled Laminating Temperature Range 60-130°C 60-130°C 60-130°C Max. Pressure Pressure is applied by a manual hydraulic pump up to 1200 Kg with a pressure gauge Pressure gauge vs. the force applied to the roller as below Gauge Pressure (MPa 2 4 6 8 10 Force applied to the rollers (Kg) 240 360 720 960 1200 Optional: You may use an electric oil pump to achieve automatic pressure setting up to 15 MPa as the link below Power 220VAC +/- 10% , Single phase, 50/60Hz, 5kW 220VAC +/- 10% , Single phase, 50/60Hz, 7kW 220VAC +/- 10%, Three phases, (single phase is available with a boost frequency converter), 50/60Hz, 7 kW Compliance NRTL or CSA certification is available upon request at the extra cost

Model  JTFM380  JTFM520  JTFM 1050
 Laminating Width  340mm Max  480mm Max  1000 mm Max
 Laminating Width 3 mm Max
Roller diameter  Φ192×380mm  Φ192×520mm  Φ216×1050mm
  • The top roller is made of A3 Steel and the bottom roller is made of high-temperature rubber
  • Only the top steel roller is heated
  • Both rollers made of SS304 are available upon request
Laminating Speed   0.5-30m/min 0.5-30m/min  0.5-30 m/ min
 Winding motor  DC motor with tension-controlled
Laminating Temperature Range  60-130°C 60-130°C 60-130°C
Max. Pressure
  • Pressure is applied by a manual hydraulic pump up to 1200 Kg with a pressure gauge
  • Pressure gauge vs. the force applied to the roller as below
  • Gauge Pressure (MPa 2 4 6 8 10
    Force applied to the rollers (Kg) 240 360 720 960 1200
  • Optional: You may use an electric oil pump to achieve automatic pressure setting up to 15 MPa as the link below
 Power 220VAC +/- 10% , Single phase, 50/60Hz,
5kW		 220VAC +/- 10% , Single phase, 50/60Hz,
7kW		 220VAC +/- 10%, Three phases, (single phase is available with a boost frequency converter), 50/60Hz,
7 kW
Compliance
  • NRTL or CSA certification is available upon request at the extra cost
,
Gauge Pressure (MPa 2 4 6 8 10
Force applied to the rollers (Kg) 240 360 720 960 1200
