1600°C Cold-wall High Vacuum Furnace (Heating Area 200×200×300mm) - HVF-1600X-12L

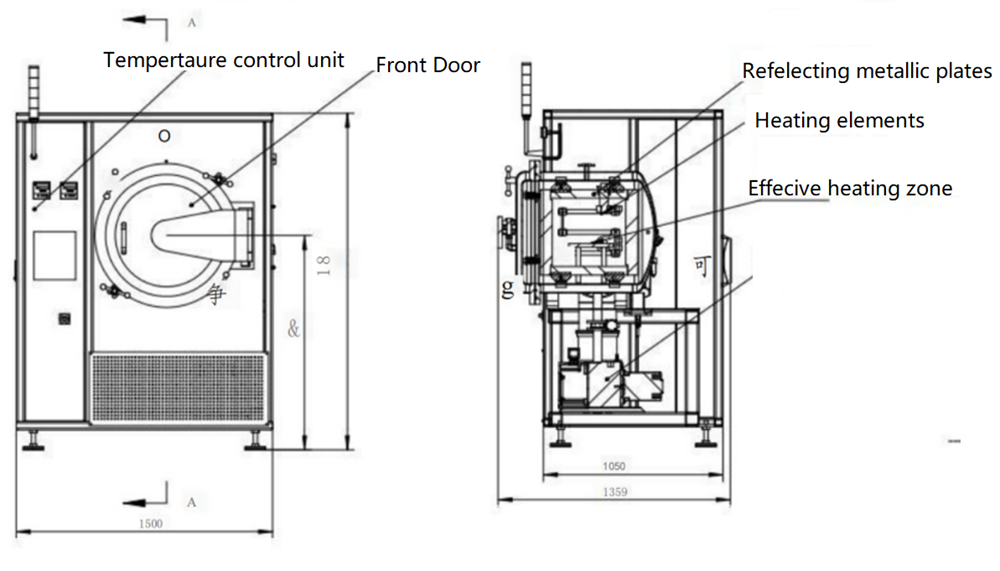

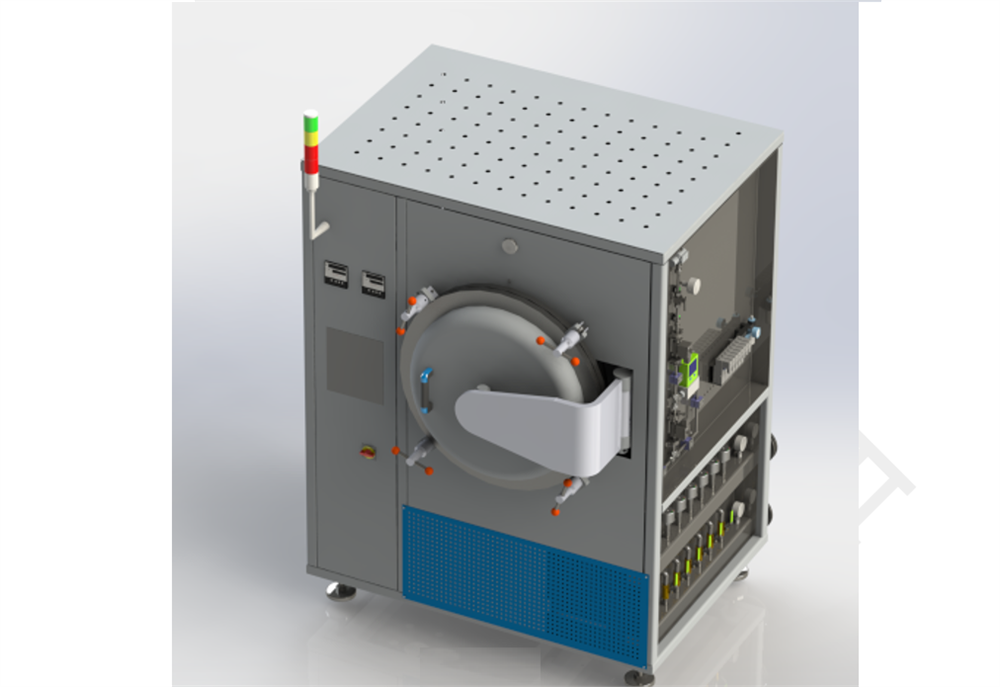

HVF-1600X-12 is a cold-wall front-loading high vacuum furnace up to 1600 with all metallic components inside the vacuum chamber. It provides a clean and well-defined high vacuum condition for sintering. The furnace is resistance heated by molybdenum coils inside a water-cooled stainless steel vacuum chamber. The effective heating area is 200×200×300 mm for vacuum and inert conditions. The system can also be modified for hydrogen gas upon request.

SPECIFICATIONS:

Power	480VAC, 60 Hz, 3p or 380VAC, 50 Hz, 3p 60 KW Max. 10-foot power cable is included without a plug
Vacuum chamber	304 SS water-cooled vacuum chamber ISO100-K vacuum port for vacuum generation.  Vacuum level:  <1e-6 torr at room temperature. 1/4 gas inlet and outlet with valves Two float flowmeters.

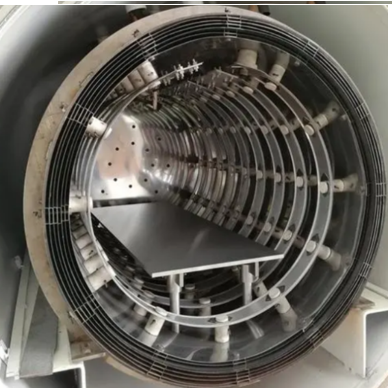

Heating chamber	1 set of Mo heating coils Multilayer thermal reflection layer made of refractory alloy Effective heating zone: 200x200x200 mm (12 L) One sliding sample stage Mo heating coils can only be used under high vacuum (<1e-4 torr) or Ar ambient.
Temperature control	Eurotherm 3000 programmable temperature controller with over-temperature protection Touch screen control panel for easy setup and recording of the temperature profile  B type of thermal couples Temperature accuracy: +/- 0.1 °C Max. working temperature 1600°C Max. heating rate: 20°C / minute RS 485 port for PC remote control via iTools software.
Water Chiller	KJ6300 water chiller Temperature range: 5 - 30°C Water Flow Rate: 116 L/min Water Tank: 45 Liters made of stainless steel
Vacuum Pump (optional)	260L/s turbo pump with ISO100 port
Hydrogen Disposal (optional)	The furnace can be used as a hydrogen furnace  with MTI hydrogen burning and leak detection system Click the picture left to order at the extra cost. Without a safe hydrogen protection system, you can not run the furnace under hydrogen gas
Compliance	CE certified NRTL or CSA certification is available upon request at the extra cost
