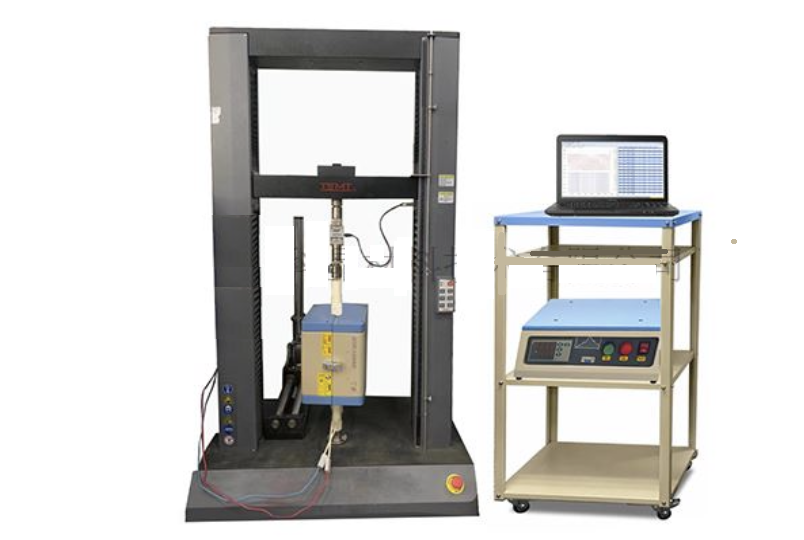

Max. 10 T/ 1100 ºC High temperature Universal Testing System ( Tensile / Compression / Creep Rupture ) - HUT-10T-1100
  • Max. 10 T/ 1100 ºC High temperature Universal Testing System ( Tensile / Compression / Creep Rupture ) - HUT-10T-1100
  • Max. 10 T/ 1100 ºC High temperature Universal Testing System ( Tensile / Compression / Creep Rupture ) - HUT-10T-1100
Max. 10 T/ 1100 ºC High temperature Universal Testing System ( Tensile / Compression / Creep Rupture ) - HUT-10T-1100

Max. 10 T/ 1100 ºC High temperature Universal Testing System ( Tensile / Compression / Creep Rupture ) - HUT-10T-1100

SKU: hut-10t-1100

Price: RFQ

Specifications

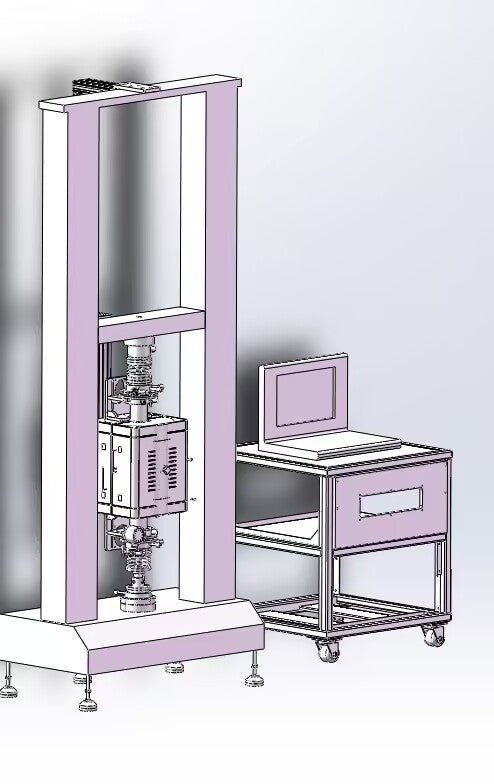

 HUT-10T-1100 is a high-temperature testing system capable of testing various materials' tensile, compressive, and creep rupture strength up to 10 metric tons at 1100oC. An inert gas-controlled and vacuum testing system is available upon request. SPECIFICATIONS Power Voltage: 208 - 240 VAC, single phase, 50/60 Hz Power consumption: 3.5 kW Max. ( 30 A breaker ) Power cable and plug is included Testing Mechanism Electric servo motor provides testing force up to 10 metric Tones Force accuracy : +/- 1 % . Displacement range： 10 - 800 mm Displacement accuracy： 0.001 mm Speed adjusting range: 0.00025 mm/s --- 0.025 mm/s Speed accuracy: <= 1% Sample clip: Manually tighten with a sample from 6 mm to 12 mm diameter Working Space: 420 mm width x 600 mm Height Heating Mechanism The bottom of the machine houses one two-zone heating split furnace, which can heat the sample to 1100 ºC Max. The furnace can be upgraded to 1500 ºC upon request The temperature controllers are programmable with +/- 1 º C accuracy, which is in a separate box unit with two independent controllers The uniform temperature zone is 100 mm within +/- 3 ºC Optional: The air-tightening and vacuum testing system is available upon request at an extra cost. Control Panel One 17" laptop computer is included to program the machine and furnace with software, Including: Tensile or compress speed and force Heating temperature, heating rate dwell time Display tensile or compression curve Store all testing data in a computer Compliance CE Certified NRTL certification (UL61010) or CSA certification is available upon request at extra cost.

Power
  • Voltage: 208 - 240 VAC, single phase, 50/60 Hz
  • Power consumption: 3.5 kW Max. ( 30 A breaker )
  • Power cable and plug is included
Testing Mechanism
  • Electric servo motor provides testing force up to 10 metric Tones
  • Force accuracy : +/- 1 % .
  • Displacement range： 10 - 800 mm
  • Displacement accuracy： 0.001 mm
  • Speed adjusting range: 0.00025 mm/s --- 0.025 mm/s
  • Speed accuracy: <= 1%
  • Sample clip: Manually tighten with a sample from 6 mm to 12 mm diameter
  • Working Space: 420 mm width x 600 mm Height
Heating Mechanism
Control Panel
  • One 17" laptop computer is included to program the machine and furnace with software, Including:
    • Tensile or compress speed and force
    • Heating temperature, heating rate dwell time
    • Display tensile or compression curve
    • Store all testing data in a computer

Compliance
  • CE Certified
  • NRTL certification (UL61010) or CSA certification is available upon request at extra cost.
