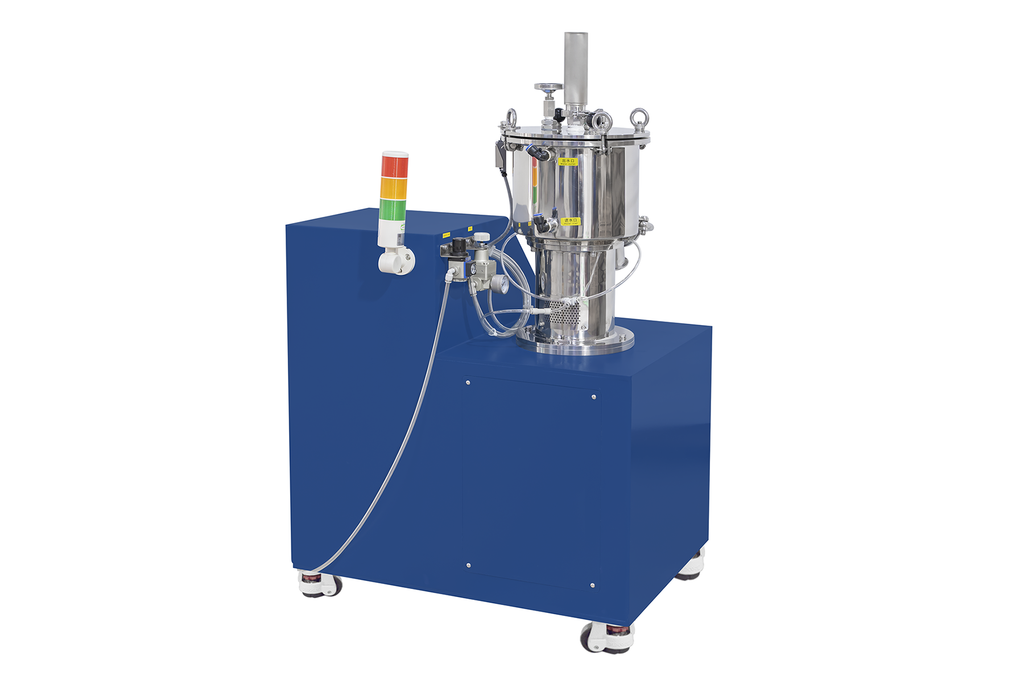

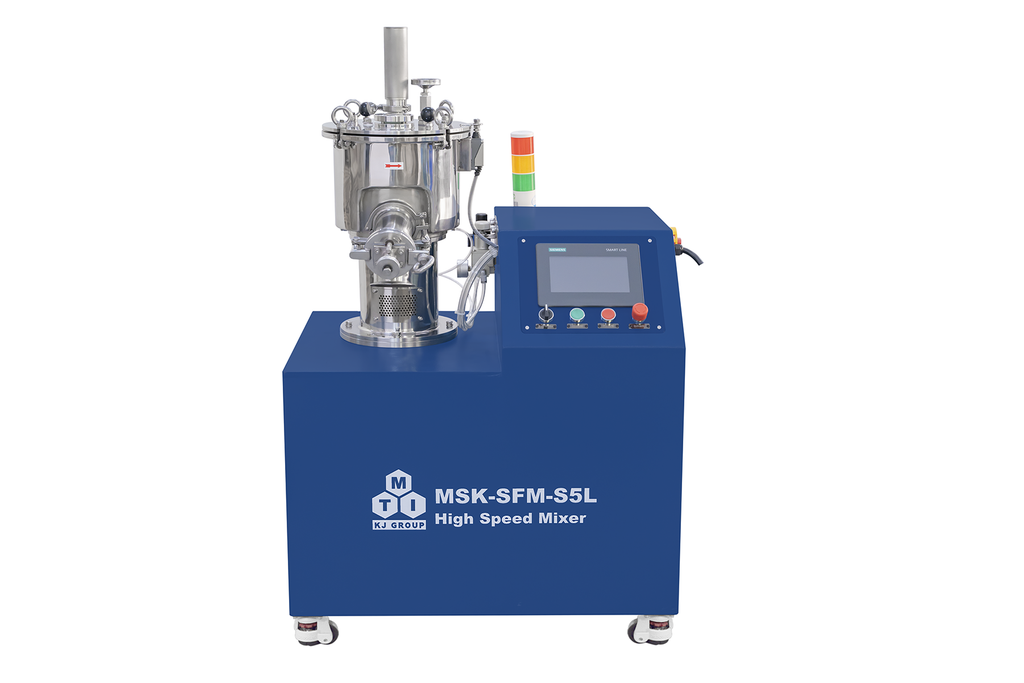

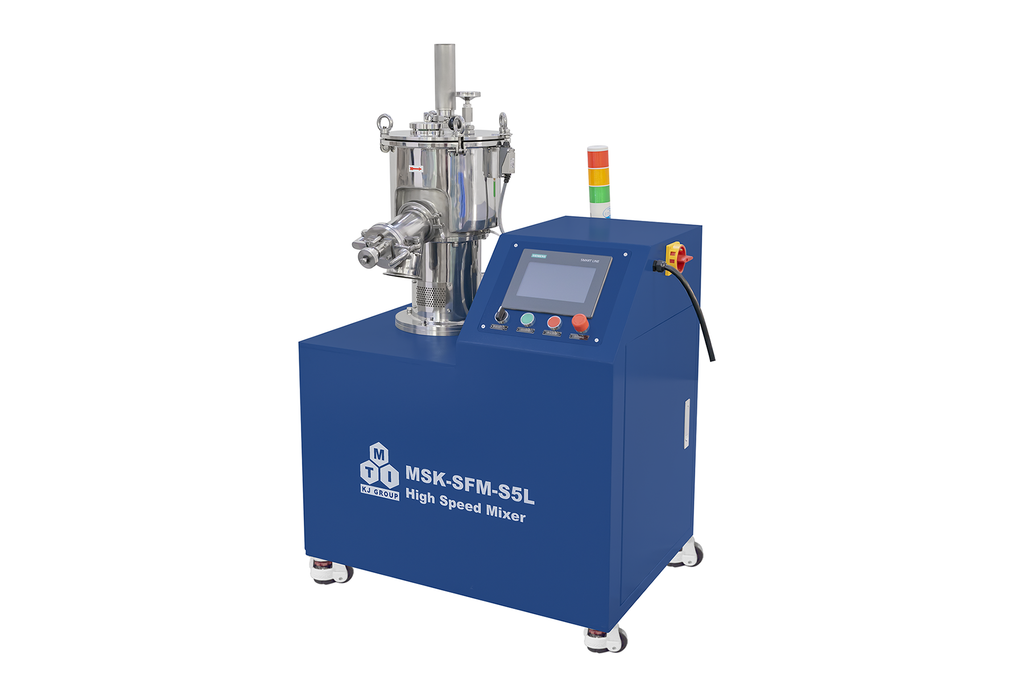

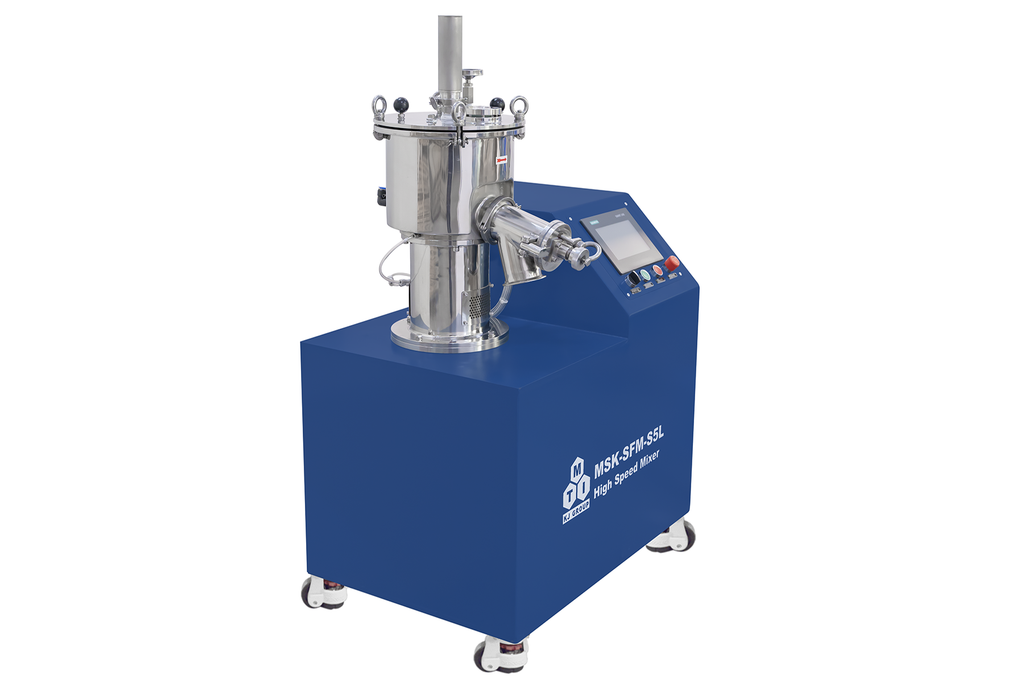

High Speed Mixer & Dispenser with Water Cooling Function for Dry Electrode Battery (Max. 6000 rpm, 5 L) - MSK-SFM-S5L
  • High Speed Mixer & Dispenser with Water Cooling Function for Dry Electrode Battery (Max. 6000 rpm, 5 L) - MSK-SFM-S5L
  • High Speed Mixer & Dispenser with Water Cooling Function for Dry Electrode Battery (Max. 6000 rpm, 5 L) - MSK-SFM-S5L
  • High Speed Mixer & Dispenser with Water Cooling Function for Dry Electrode Battery (Max. 6000 rpm, 5 L) - MSK-SFM-S5L
  • High Speed Mixer & Dispenser with Water Cooling Function for Dry Electrode Battery (Max. 6000 rpm, 5 L) - MSK-SFM-S5L
  • High Speed Mixer & Dispenser with Water Cooling Function for Dry Electrode Battery (Max. 6000 rpm, 5 L) - MSK-SFM-S5L
High Speed Mixer & Dispenser with Water Cooling Function for Dry Electrode Battery (Max. 6000 rpm, 5 L) - MSK-SFM-S5L

High Speed Mixer & Dispenser with Water Cooling Function for Dry Electrode Battery (Max. 6000 rpm, 5 L) - MSK-SFM-S5L

SKU: high-speed-mixer-dispenser-with-water-cooling-function-for-dry-electrode-battery-max-6000-rpm-5-l-msk-sfm-s5l

Price: RFQ

Specifications

 MSK-SFM-S5L is a high speed (Max. 6000 rpm) mixer & dispenser with a tank volume of Max. 5L to make homogeneous slurry for battery, electrolyte/fuel cell, or other applications fields. Especially it is suitable for dry electrode batter application due to controllable fibrosis of PTFE binder under low temperature. Technical Mechanism : The bottom blades rotation will generate parabola-type airflow from central area to wall area, which will collide with the backflow airflow caused by blade and wall. This intense airflow force will vibratingly dispense and mix the powders to realize homogeneous mixtures. SPECIFICATIONS: Power Supply AC220V±10%, Three-Phase, 50/60Hz, 2.2 kW Dispensing Speed Max. 6000 rpm (adjustable) Line Speed Max. 56 m/s Processing Volume Max. 5 L Tank Material SUS304 (the inside tungsten coating is optional upon request) Water Cooling Machine ( Optional, not included in standard package ) As low as <15 ℃ with circulated coolant from an optional water chiller. Please click the link below to order Dimension/Weight L800*W550*H1250 mm ~1160 kg Certification CE Certified NRTL or CSA certification is available upon request at the extra cost.

Power Supply
  • AC220V±10%, Three-Phase, 50/60Hz, 2.2 kW
Dispensing Speed
  • Max. 6000 rpm (adjustable)
Line Speed
  • Max. 56 m/s
Processing Volume
  • Max. 5 L

Tank Material
  • SUS304 (the inside tungsten coating is optional upon request)
Water Cooling Machine (Optional, not included in standard package)
  • As low as <15 ℃ with circulated coolant from an optional water chiller. Please click the link below to order

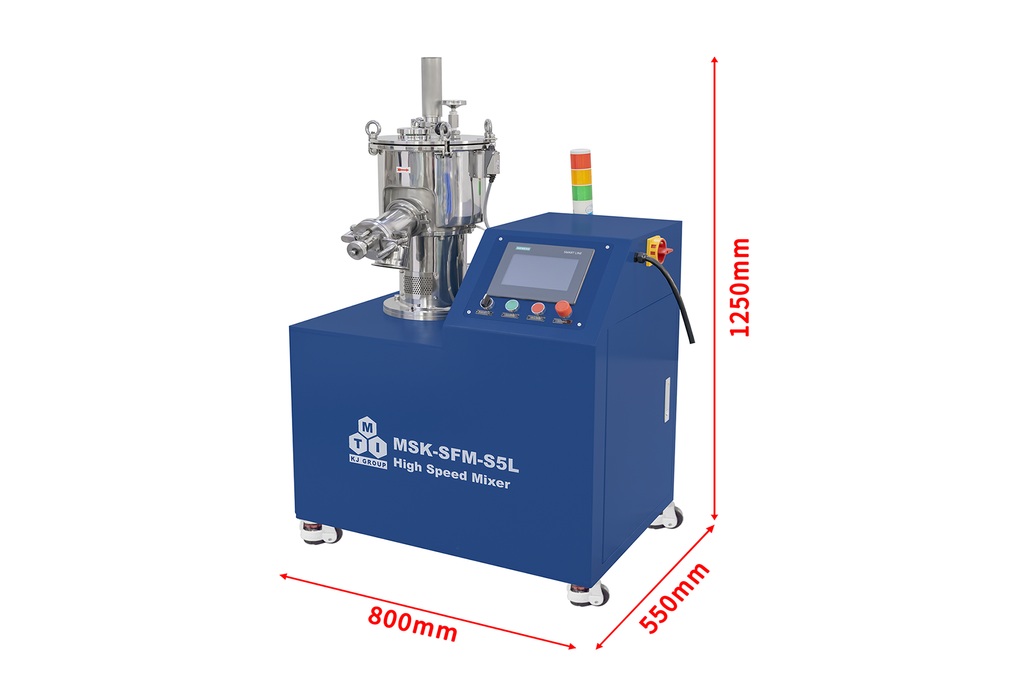

Dimension/Weight
  • L800*W550*H1250 mm
  • ~1160 kg
Certification
  • CE Certified
  • NRTL or CSA certification is available upon request at the extra cost.
