Graphite Cylindrical Crucible

Graphite Cylindrical Crucible

SKU: high-purity-cylindrical-graphite-crucible-multiple-variables

Price: RFQ

Description

 High-purity graphite crucible for induction heating and metal melting, Machined graphite crucible SPECIATIONS: Property US Value Metric Value Particle Size 0.008 in 0.02032 cm Density 0.063 lb/in 3 1.74 g/cm 3 Flexural Strength 3200 psi 22.1 mpa Compressive Strength 6200 psi 42.7 mpa Resistivity 4.0 ohm/in x 10 -4 4.0 ohm/ in x 10 -4 Thermal Conductivity 110 BTU/(h.ft 20 F/ft) 190 W/(m 2 K/m) CTE 1.3 in/ in o F x 10 -6 2.4 Microns/ m C o Temperature (Air) 750 o F 399 o C Temperature (Inert) 5000 o F 2760 o C Ash 0.1% 0.1% Precise Dimensions Chart: SKU CG4571 Outside Diameter 60 mm (2.362") Inside Diameter 45 mm (1.772") Depth 71 mm (2.795") Height 80 mm (3.150") Capacity 93 mL SKU CG25100 Outside Diameter 25.4 mm (1") Inside Diameter 14.99 mm (0.59") Depth 95.3 mm (3.75") Height 101.6 mm (4") SKU CG001015 Outside Diameter of Top Edge 73.0 mm (2.875") Outside Diameter of Bottom 58 mm (2.28") Inside Diameter 51.6 mm (2.03") Depth 77.7 mm (3.06") Height 87.3 mm (3.435") Capacity 162 mL SKU CG009 Outside Diameter of Top Edge 58 mm (2.285") Outside Diameter of Bottom 47 mm (1.81") Inside Diameter 35 mm (1.415") Depth 78 mm (3.06") Height 88 mm (3.435") Capacity Working Volume: ~70 mL; Max. Volume: ~79 mL SKU CG40 Outside Diameter 38.1 mm (1.5") Inside Diameter 31.75 mm (1.25") Depth 95.25 mm (3.75") Height 100.6 mm (3.96") SKU CG40 Outside Diameter 38.1 mm (1.5") Inside Diameter 31.75 mm (1.25") Depth 95.25 mm (3.75") Height 100.6 mm (3.96") SKU CG40102 Outside Diameter 51 mm (2") Inside Diameter 40 mm (1.57") Depth 102 mm (4") Height 109 mm (4.3") Capacity 127 mL SKU CG75D105H Outside Diameter of Top Edge 85 mm (3.35") Outside Diameter of Bottom 75 mm (2.95") Inside Diameter 60 mm (2.362") Depth 95 mm (3.7") Height 105 mm (4.13") Capacity Working Volume: ~250 mL; Max. Volume: ~270mL SKU CG63135 Outside Diameter 73 mm (2.87") Inside Diameter 63 mm (2.48") Depth 135 mm (5.3") Height 140 mm (5.5") Capacity 420 mL SKU CG1292 Outside Diameter 12.5 mm (0.5") Inside Diameter 6.5 mm (0.26") Depth 79 mm (3.1") Height 92 mm (3.62") Inspect your delivery: Please check the package for any damages before accepting delivery. If damages are detected, retain all packaging materials, document the condition with photos, and report the issue immediately to the carrier and MTI. No Warranty: Kindly notice that this item is a consumable part and is not covered under warranty. Please conduct a thorough inspection for any defects before use.

Property US Value Metric Value
Particle Size
  • 0.008 in
  • 0.02032 cm
Density
  • 0.063 lb/in3
  • 1.74 g/cm3
Flexural Strength
  • 3200 psi
  • 22.1 mpa
Compressive Strength
  • 6200 psi
  • 42.7 mpa
Resistivity
  • 4.0 ohm/in x 10-4
  • 4.0 ohm/ in x 10-4
Thermal Conductivity
  • 110 BTU/(h.ft20F/ft)
  • 190 W/(m2K/m)
CTE
  • 1.3 in/ in oF x 10-6
  • 2.4 Microns/ m Co
Temperature (Air)
  • 750 oF
  • 399 oC
Temperature (Inert)
  • 5000 oF
  • 2760 oC
Ash
  • 0.1%
  • 0.1%
,
SKU

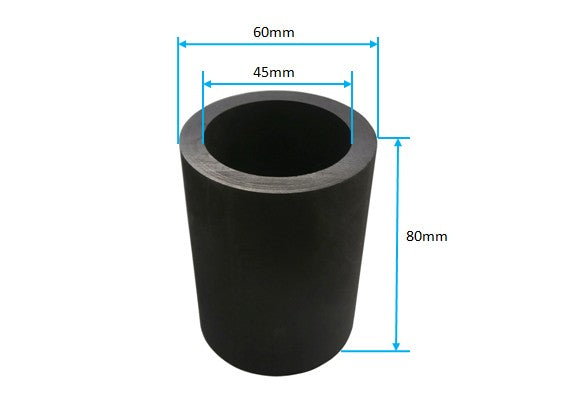

  • CG4571
Outside Diameter
  • 60 mm (2.362")
Inside Diameter
  • 45 mm (1.772")
Depth
  • 71 mm (2.795")
Height
  • 80 mm (3.150")
Capacity
  • 93 mL
,
SKU
  • CG25100
Outside Diameter
  • 25.4 mm (1")
Inside Diameter
  • 14.99 mm (0.59")
Depth
  • 95.3 mm (3.75")
Height
  • 101.6 mm (4")
,
SKU
  • CG001015
Outside Diameter of Top Edge
  • 73.0 mm (2.875")
Outside Diameter of Bottom
  • 58 mm (2.28")
Inside Diameter
  • 51.6 mm (2.03")
Depth
  • 77.7 mm (3.06")
Height
  • 87.3 mm (3.435")
Capacity
  • 162 mL
,
SKU

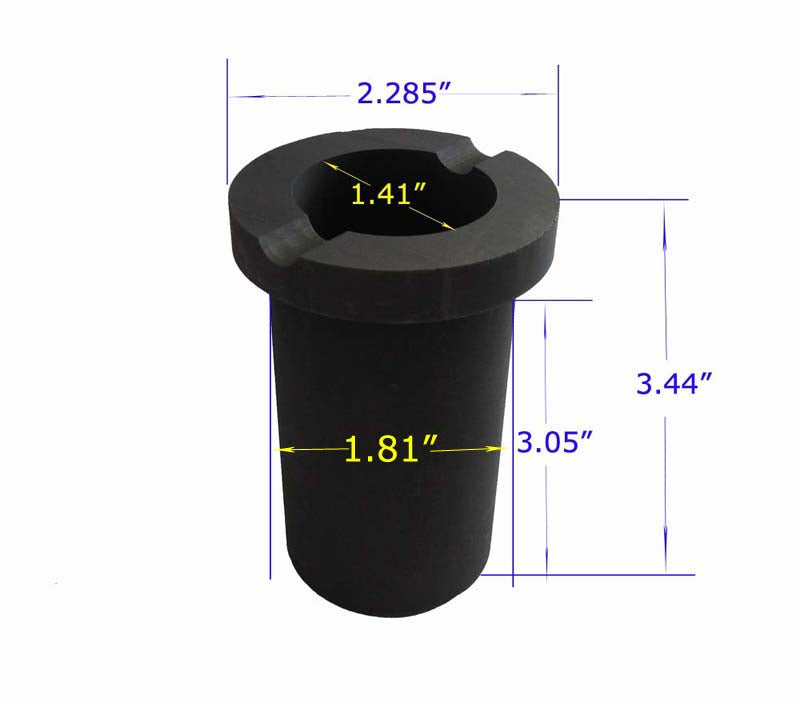

  • CG009
Outside Diameter of Top Edge
  • 58 mm (2.285")
Outside Diameter of Bottom
  • 47 mm (1.81")
Inside Diameter
  • 35 mm (1.415")
Depth
  • 78 mm (3.06")
Height
  • 88 mm (3.435")
Capacity
  • Working Volume: ~70 mL; Max. Volume: ~79 mL
,
SKU
  • CG40
Outside Diameter
  • 38.1 mm (1.5")
Inside Diameter
  • 31.75 mm (1.25")
Depth
  • 95.25 mm (3.75")
Height
  • 100.6 mm (3.96")
,
SKU
  • CG40
Outside Diameter
  • 38.1 mm (1.5")
Inside Diameter
  • 31.75 mm (1.25")
Depth
  • 95.25 mm (3.75")
Height
  • 100.6 mm (3.96")
,
SKU

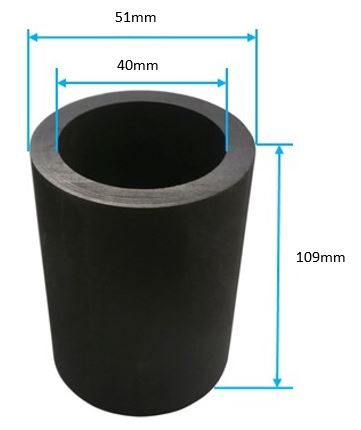

  • CG40102
Outside Diameter
  • 51 mm (2")
Inside Diameter
  • 40 mm (1.57")
Depth
  • 102 mm (4")
Height
  • 109 mm (4.3")
Capacity
  • 127 mL
,
SKU
  • CG75D105H
Outside Diameter of Top Edge
  • 85 mm (3.35")
Outside Diameter of Bottom
  • 75 mm (2.95")
Inside Diameter
  • 60 mm (2.362")
Depth
  • 95 mm (3.7")
Height
  • 105 mm (4.13")
Capacity
  • Working Volume: ~250 mL; Max. Volume: ~270mL
,
SKU
  • CG63135
Outside Diameter
  • 73 mm (2.87")
Inside Diameter
  • 63 mm (2.48")
Depth
  • 135 mm (5.3")
Height
  • 140 mm (5.5")
Capacity
  • 420 mL
,
SKU

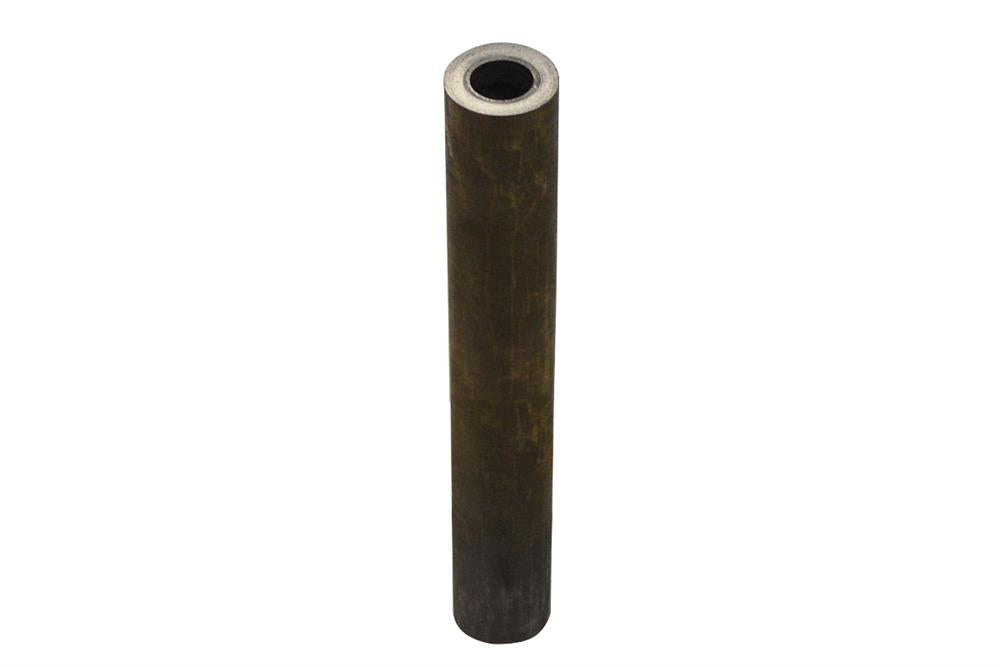

  • CG1292
Outside Diameter
  • 12.5 mm (0.5")
Inside Diameter
  • 6.5 mm (0.26")
Depth
  • 79 mm (3.1")
Height
  • 92 mm (3.62")
