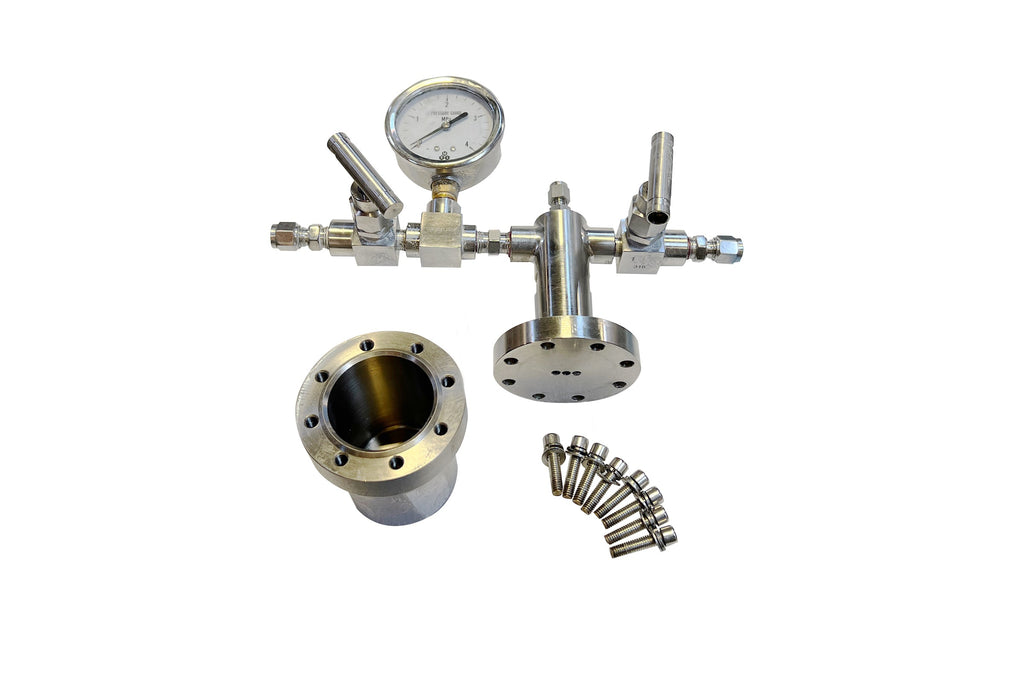

GSL-500X-XX is a hydrothermal reactor made of pure titanium or SS316 steel with a pressure rating up to 4 MPa max. It also comes with gas inlet, outlet, and a pressure gauge.
The optional heating jacket and temperature controller allows to heat up the reactors to 500ºC. It is an ideal tool for preparing advanced materials, especially bio-materials by the hydrothermal method.
| Power |
- 120 VAC, 50/60 Hz, single phase
- 500 VA
- 208-240 VAC is available upon request
|

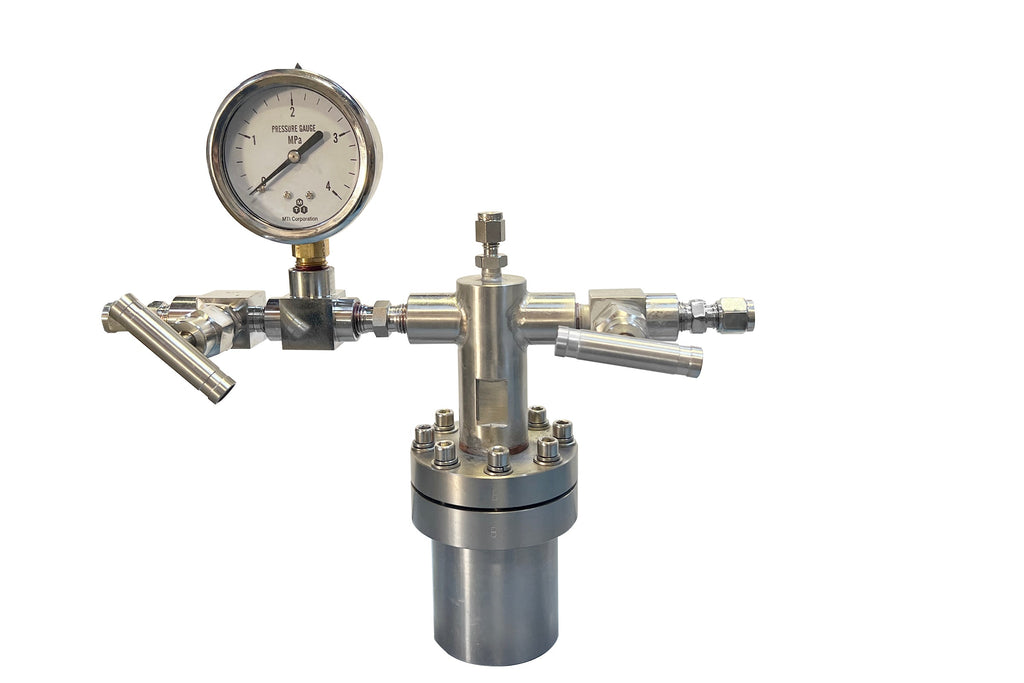

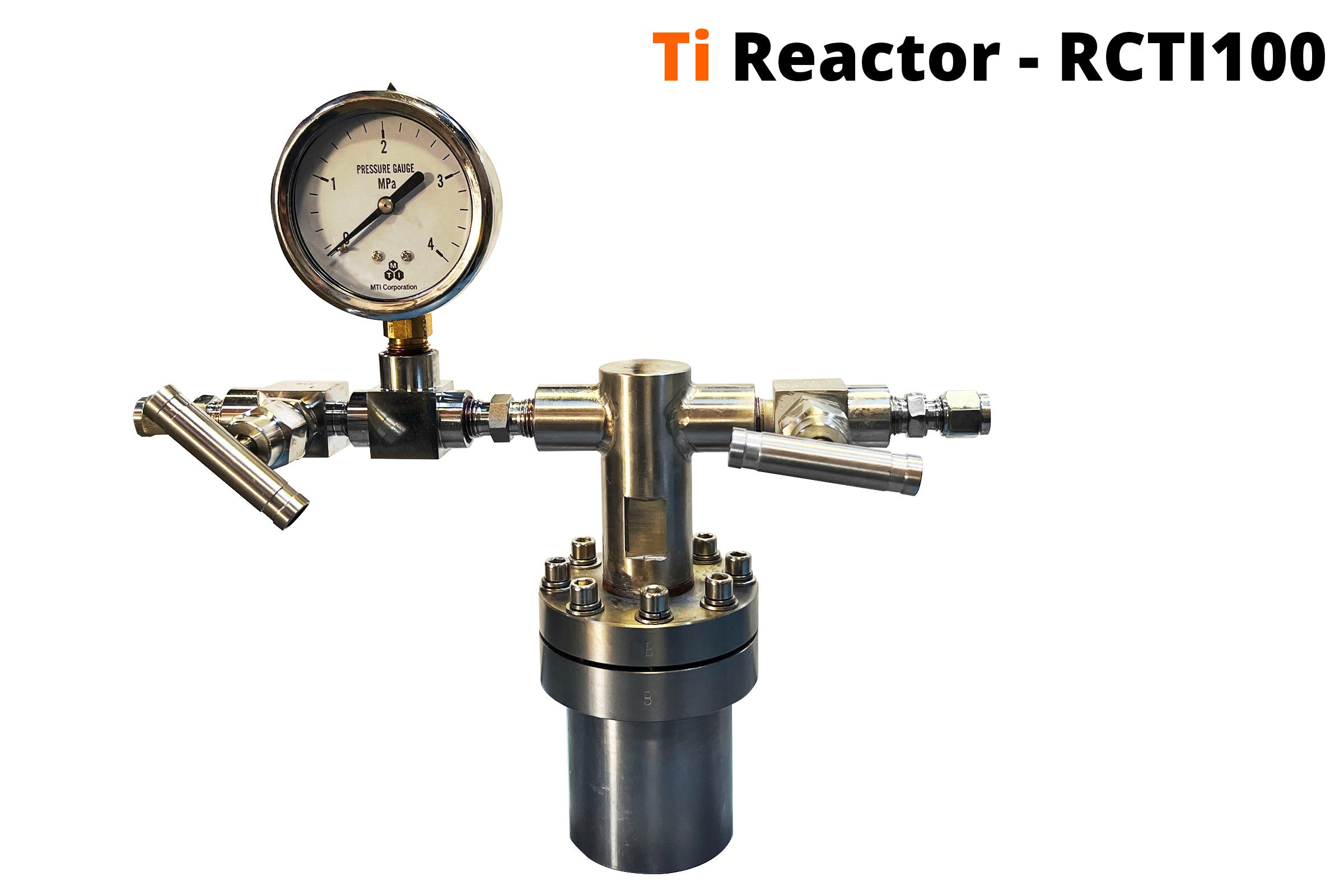

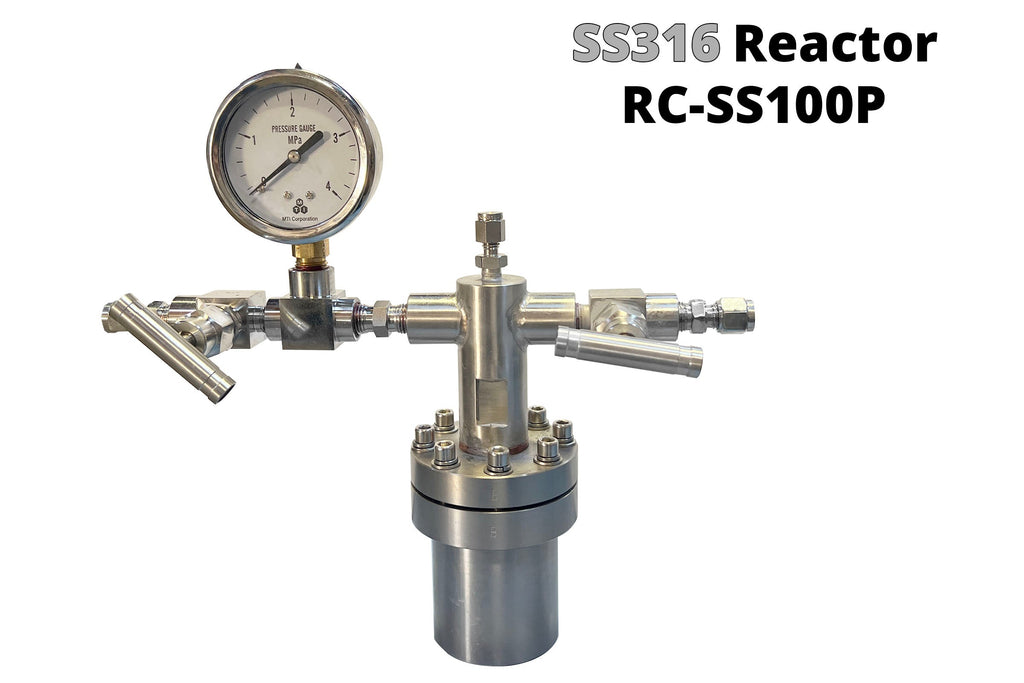

Reactor
|
- Materials:
- high purity titanium (> 99.95% )
- SS 316 alloy
- Inner dimensions 65mm OD x 45mm ID x 67mm H
- Capacity: ~ 100 ml,
- SS 316 1/4" gas inlet and out with needle valves
- Built-in pressure gauge (0-4 MPa)
- Optional PTFE liner is also available.
|
| Working Temperature |
- RT - 400 °C Max for Ti reactor
- RT - 500 °C Max for SS316 reactor
|
| Working Pressure |
- 4 MPa Max. < 200°C
- 3 MPa Max. < 400°C
|
| Valve |
- Stainless steel 316 needle valves with 1/4" compression tube fitting
|

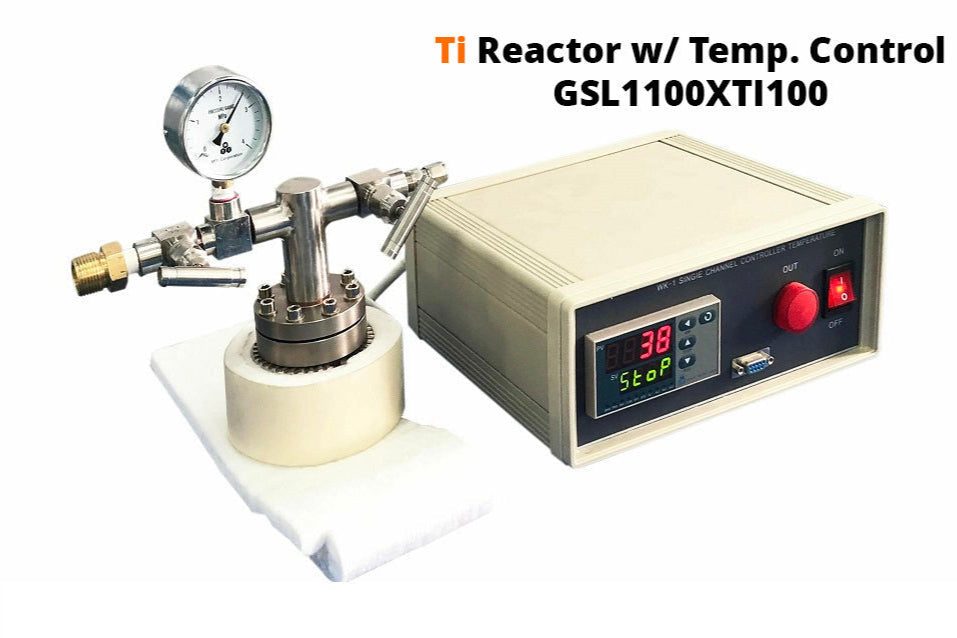

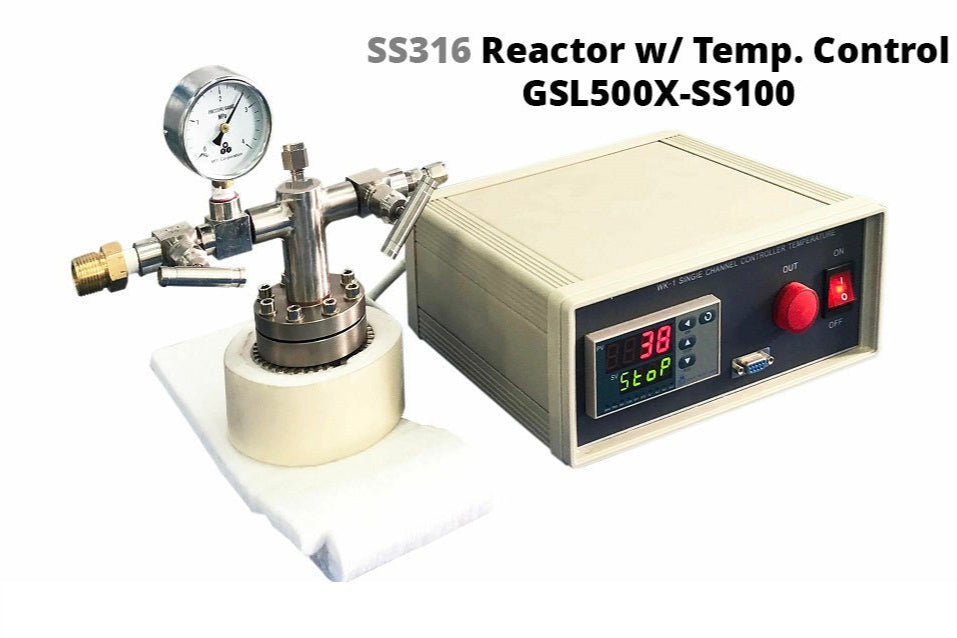

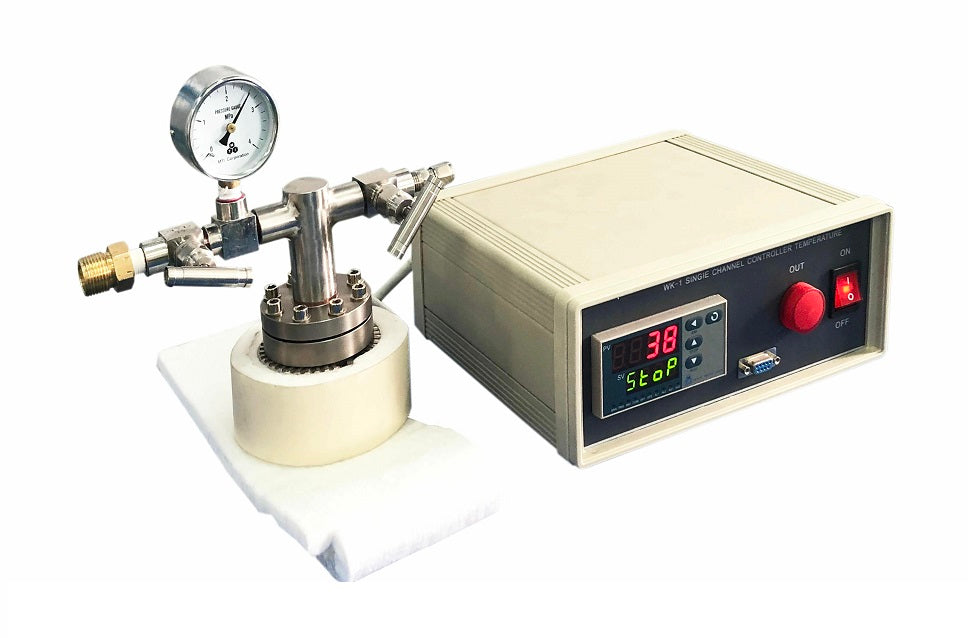

Temperature Controller option
|
- The heating function is optional
- Single-point digital temperature controller with +/- 1ºC accuracy
- A coil heater is included to heat the reactor with a thermal couple
- Digital pressure meters are available at an extra cost
|
| Compliance |
- CE Certified
- NRTL or CSA certification ia available upon request at the extra cost
|
| Application Notes |
- Warning: For your safety, the high-pressure vessel is highly recommended to place inside an explosive-proof box or case during use under high pressure.
- Personal protection equipment including but not limited to gloves, goggles, lab jackets is required to operate the equipment.

|
