2300ºC Max. Induction heated Tube Furnace (30 mm ID Graphite Tube) with IR Temp.-Controlled - GSL-2300X-C

2300ºC Max. Induction heated Tube Furnace (30 mm ID Graphite Tube) with IR Temp.-Controlled - GSL-2300X-C

SKU: gsl-2300x-c

Price: RFQ

Specifications

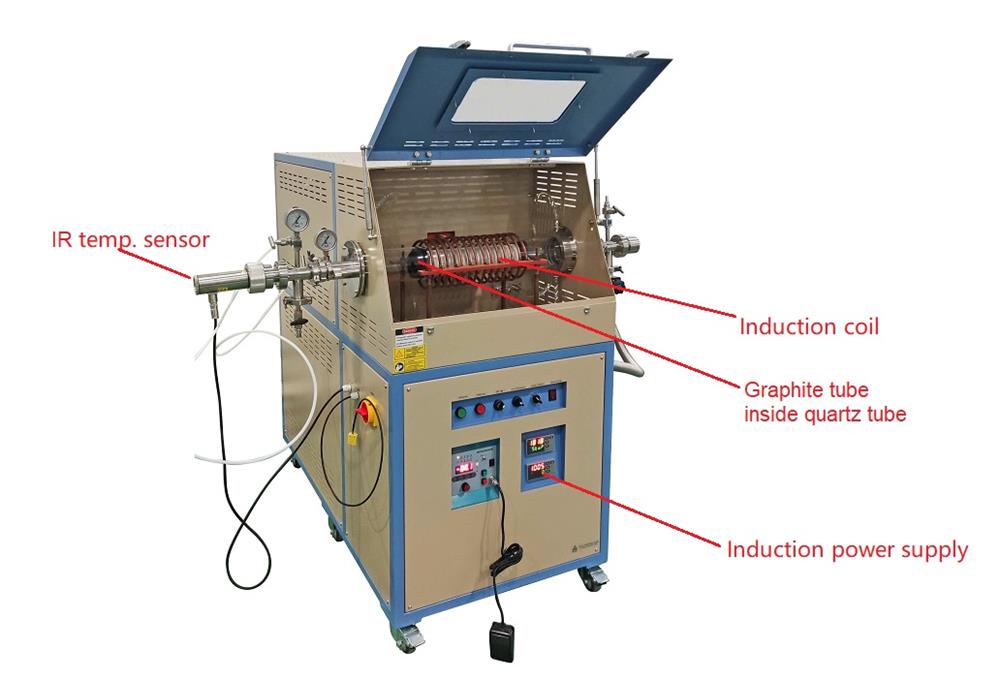

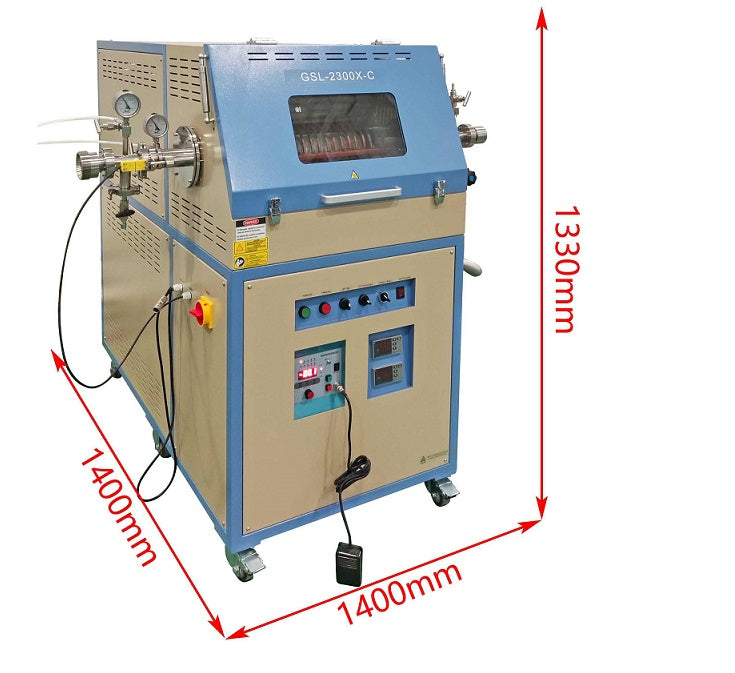

GSL-2300X-C is an induction heated horizontal tube furnace with an IR temperature sensor and controller and max. the working temperature of 2300 ºC , 30 mm ID graphite tube with thermal insulation which is sealed in a 4" Quartz Tube with Flanges & Valves. SPECIFICATIONS: Induction Heater Working Voltage: 208~240V AC, 50/ 60Hz, Three Phase Working Current: 96 Amp (100A breaker required) Max. Input Power: 35 KW Output Frequency: 80 - 200 kHz Adjustable Duty Cycle: 80% Air Cooling: Rear Fan Protection: Automatic water pressure, over-temperature, and overload protection Induction coil and Heated Tube Water cold induction Coil: 135 (ID) x 300 L, mm Fused Quarzt tube: 100 (OD) x 90 (ID) x 700 (L) mm) Graphite Tube:                  40(OD) x 30 (ID)  x 300 (L) mm Thermal insulation:            High-purity carbon felt YSZ ceramic coating for graphite tube ID is available upon request for carbon-sensitive material Vacuum seal flanges Vacuum flanges:   Left side: IR temperature sensor with gas-inlet and pressure gauge Right side:  KF 25 port for vacuum pump and the gas outlet valve Vacuum level:       10-2 torr by a mechanical pump and 10-5 torr by turbopump Optional: Digital vacuum gauge up to 4x 10-5 torr is available at the extra cost. Temp. Controller & Thermocouple 30 segments programmable for precise controls of heating rate, cooling rate, and dwell time. Temperature sensor:   IR senor ( made in Germany ) Max. working temperarure: 2300ºC  ( < 60 minutes ) Continuous Working Temp. Range: 1200ºC~2200ºC Constant temperature zone:    60 mm ±5 Max. Heating rate:  40/min≤160030/min1600-2300 Max. Cooling rate:   30/min1000—2300 +/- 2 ºC temperature accuracy. Water Chiller Water cooling with > 116 L/minute flow rate is required for cooling the induction coil. You may click the picture left to order a recirculating water chiller. Vacuum Pump Vacuum level: 5x10e-2 torr by the mechanical vacuum and 10e-5 torr by turbo-pump Please click the left to order a vacuum pump Compliance NRTL Certification is available upon request at extra cost, please contact our sales representatives for a price quote.

Induction Heater

  • Working Voltage: 208~240V AC, 50/ 60Hz, Three Phase
  • Working Current: 96 Amp (100A breaker required)
  • Max. Input Power: 35 KW
  • Output Frequency: 80 - 200 kHz Adjustable
  • Duty Cycle: 80%
  • Air Cooling: Rear Fan
  • Protection: Automatic water pressure, over-temperature, and overload protection

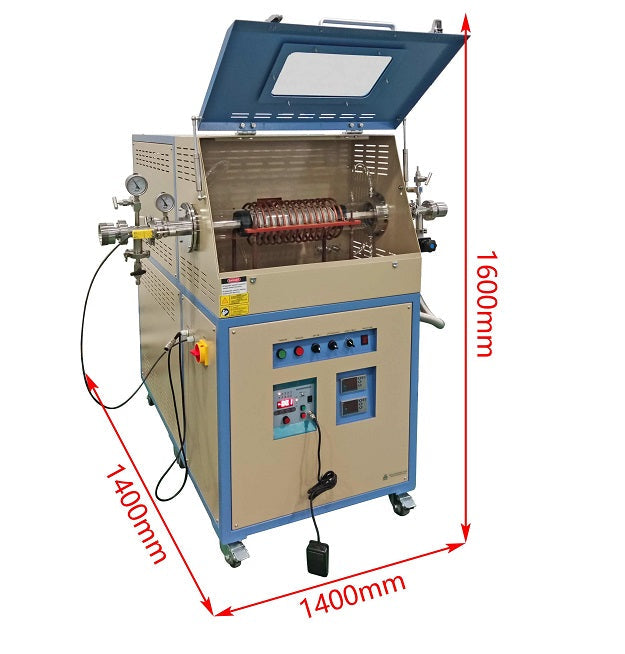

            Induction coil and Heated Tube

            • Water cold induction Coil: 135 (ID) x 300 L, mm
            • Fused Quarzt tube:           100 (OD) x 90 (ID) x 700 (L) mm)
            • Graphite Tube:                  40(OD) x 30 (ID)  x 300 (L) mm
            • Thermal insulation:            High-purity carbon felt
            • YSZ ceramic coating for graphite tube ID is available upon request for carbon-sensitive material
            Vacuum seal flanges

            • Vacuum flanges:   Left side: IR temperature sensor with gas-inlet and pressure gauge
            •                               Right side:  KF 25 port for vacuum pump and the gas outlet valve
            • Vacuum level:       10-2 torr by a mechanical pump and 10-5 torr by turbopump
            • Optional:               Digital vacuum gauge up to 4x 10-5 torr is available at the extra cost.
            Temp. Controller & Thermocouple

            • 30 segments programmable for precise controls of heating rate, cooling rate, and dwell time.
            • Temperature sensor:   IR senor ( made in Germany )
            • Max. working temperarure:  2300ºC  ( < 60 minutes )
            • Continuous Working Temp. Range: 1200ºC~2200ºC
            • Constant temperature zone:    60 mm ±5
            • Max. Heating rate:  40/min≤160030/min1600-2300
            • Max. Cooling rate:   30/min1000—2300
            • +/- 2 ºC temperature accuracy.
            Water Chiller

            • Water cooling with > 116 L/minute flow rate is required for cooling the induction coil.
            • You may click the picture left to order a recirculating water chiller.
                 Vacuum Pump

            Compliance
            • NRTL Certification is available upon request at extra cost, please contact our sales representatives for a price quote.
