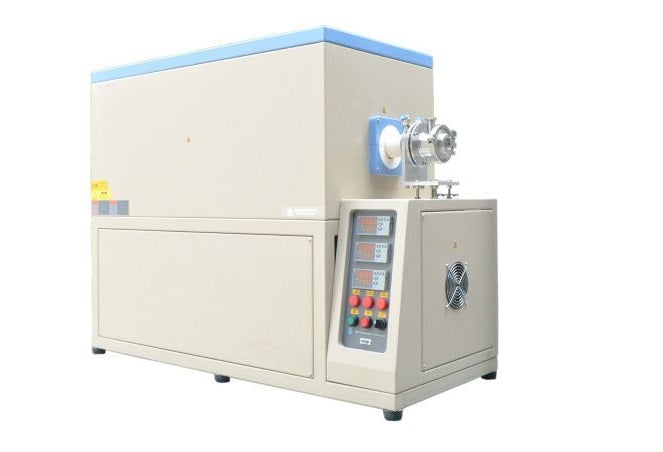

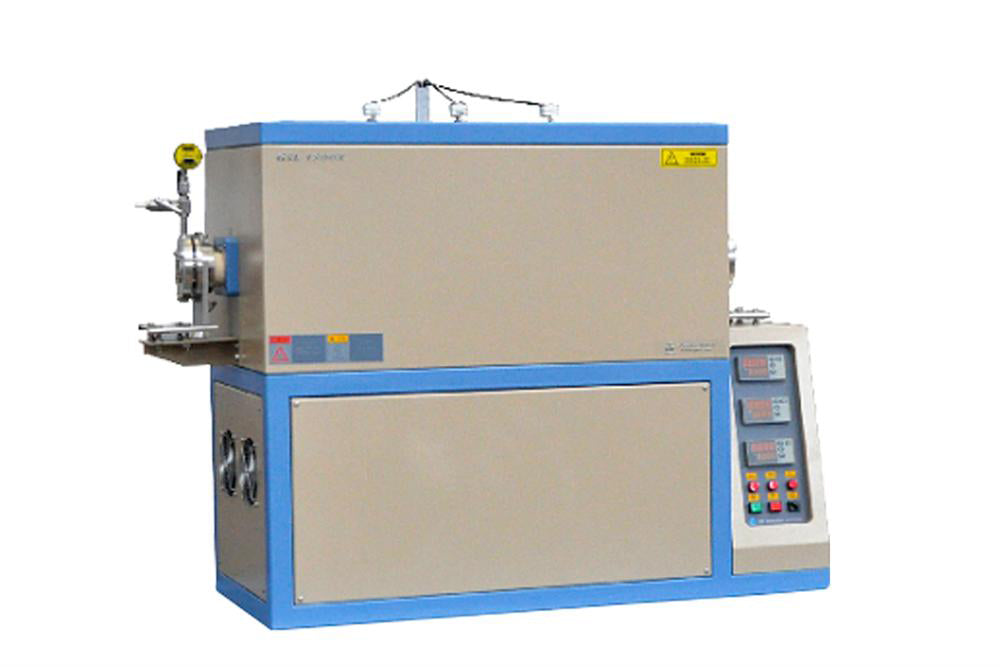

Furnace Structure
|
- Double-layer steel case with two cooling fans which ensures low surface temperature
- YSZ fibrous insulation is used as internal refractory
- High-purity fibrous alumina insulation is used as external refractory
- Included vacuum flange with 30 mm quartz window. The laser beam can penetrate the furnace through the window and sapphire thermal block.
|
|
Power
|
- 15 KW max (75A air breaker required )
- 8 KW for normal working temperature
|
| Voltage |
AC 220V three phase |
|
Max. Temperature
|
- Each zone: 1800 °C max. (< 2 hours )
- 1750°C continuous
|
|
Thermal Block Placement
|
|
|
Heating Elements
|
14 pcs Kanthal -super-1900 grade MoSi2 heating elements installed
|
|
Normal Heating/Cooling Rate
|
5°C /min |
|
Heating Zone Length
|
- Three zones: total length: 610 mm (Z1 & Z3 = 195 Z2 = 220 mm)

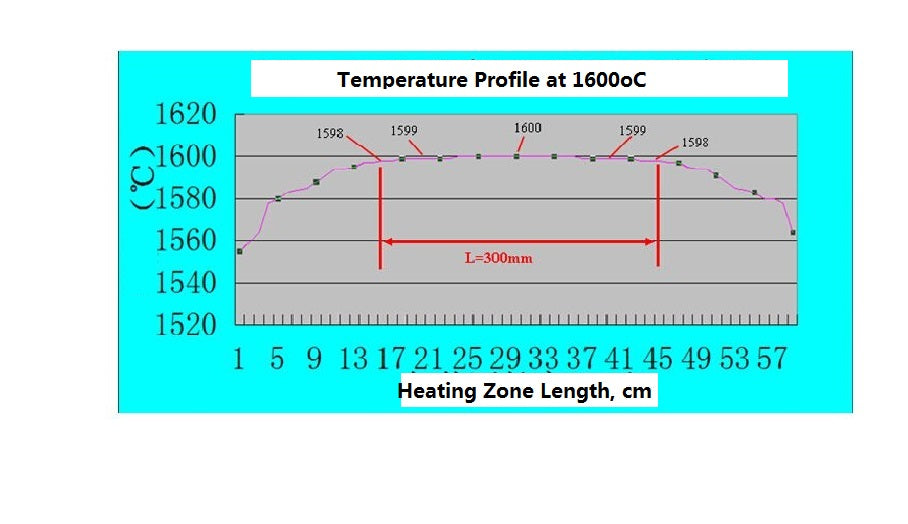

- Constant temperature zone: 300 mm (if set up three-zone at 1600°C)
|
|
Temperature Uniformity
|
- +/- 5°C @ 1200°C in the center 170mm zone in length
- +/- 10°C @ 1200°C in the center 400mm zone in length
|
|
Tube Size & Vacuum Flange
|
- 99.8% purity Alumina Tube
- 60 OD x 54 ID x 1200mm L

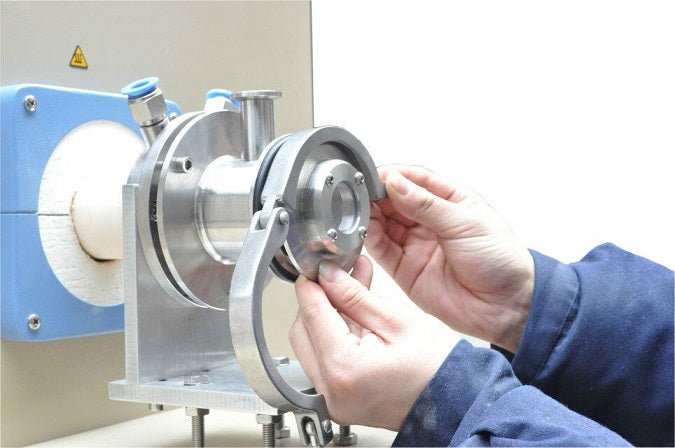

- 60 mm stainless steel water cooling vacuum sealing flange with valve and meter is included
- special quick clamp flanges for easy installation
- 30mm Dia x 3 mm double-side polished single-crystal window installed on the flange, which allows the laser beam to go through the tube
- In order to block heating radiation and make the laser bean transparent, Two sapphire rods with two ends polished must be placed inside the furnace ( please order separately )
- 16L/min water chiller is required for cooling flange, please click the picture -right to order separately
|
Temperature Control |
- Three digital controllers via SCR (Silicon Controlled Rectifier) power control with phase angle fired
- Each controller is 30 programmable segments for precise control of heating, cooling rate and dwells time
- Built-in PID Auto-Tune function with overheating & broken thermocouple protection
- Over-temperature protection and alarm allow for operation without attendant(s)
- +/- 1 ºC temperature accuracy
- Three B-type thermocouples (one for each zone)
- RS485 Communications Port
|
European Temperature Controllers (optional upgrade)
|
- 1 heating channel
- 1 program of 8 or 24 segment
- Alarm Relay: Form 'A' and Form ‘C’ built-in
- Digital Communications: RS485
- Temperature Accuracy: ± 0.1ºC
-
Recipes: Using a PC tool recipes can be created that can be used to change the operating parameters of the 3000 simply by selecting a new recipe via the HMI. This is very useful where multiple products are processed using the same controller but require different parameters to be set.
|
| Power Cable & Plug
|
- A 10 feet length 8-3 AWG heavy duty UL approved power cable is included
- Extra length cable can be ordered by clicking the picture left
- The plug is not included, but you can order from your local hardware store according to the female plug in your lab.
|
|
Laptop, software & WiFi Control (Optional)
|
- Brand new laptop with Microsoft Windows 11.
-
Labview Based Temperature Control System (MTS01)enables users to edit temperature profiles, manage heat-treatment recipes, record, and plot data for MTI furnaces.
- A wireless remote control provides up to 300 meters of operating range.

|
|
Compliance
|
- Please selects the certificate in the options bar:
- CE Certificate & UL/CSA ready: CE approval, ready to pass UL/CSA certificate at extra cost
- UL or TUV certificate - UL approval (UL 61010),
|
|
Application Notes
|
|
|
Optional Parts
|
|
|
Warnings
Please click here to learn the installation of a gas regulator.
|
- The tube furnaces with alumina tube are designed for use under vacuum and low pressure < 0.02 Mpa
- Never use a graphite crucible in the alumina tube.
- Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Click here to learn the installation of a gas regulator.
- The gas flow rate should be limited to < 200 SCCM ( or 200ml/min )
- Vacuum limit definition for all alumina tube furnaces: * Vacuum pressures may only be safely used up to 1500°C
|
