1700C Max. Two Zone Rotary Tube Furnace with 60 mm OD Alumina Tube - GSL-1600X-II-R60
  • 1700C Max. Two Zone Rotary Tube Furnace with 60 mm OD Alumina Tube - GSL-1600X-II-R60
  • 1700C Max. Two Zone Rotary Tube Furnace with 60 mm OD Alumina Tube - GSL-1600X-II-R60
  • 1700C Max. Two Zone Rotary Tube Furnace with 60 mm OD Alumina Tube - GSL-1600X-II-R60
  • 1700C Max. Two Zone Rotary Tube Furnace with 60 mm OD Alumina Tube - GSL-1600X-II-R60
1700C Max. Two Zone Rotary Tube Furnace with 60 mm OD Alumina Tube - GSL-1600X-II-R60

1700C Max. Two Zone Rotary Tube Furnace with 60 mm OD Alumina Tube - GSL-1600X-II-R60

SKU: gsl-1600x-ii-r60

Price: RFQ

Description

Furnace Construction
  • Double shell casing with three cooling fans
  • High purity Alumina fibrous insulation for max. energy saving
  • Dual heating zone with 1600ºC max. continuous working temperature
  • Electric motor to drive the tube at variable speed
Heating Zone length
&
Max. Working Temperature
  • Two zones heated separately
    • Zone 1: working temperature  800 - 1700ºC (heated by MoSi2)
    • Zone 2: working temperature  800 - 1700ºC
  • Constant temperature zone length: 10" (250mm) within +/-1
  • Max. Heating rate: 10 oC/minute
Processing tube & Sealing Flange
  • 99.8% purity Alumina Tube
  • 60 mm stainless steel vacuum sealing flange with valve and meter is included
  • One ceramic block is installed on each side flange to block thermal radiation during rotation
  • 2-3/8" (60mm) O.D. x 2-1/8" (54mm) I.D x 48" (1200 mm)  Length with inside block (see picture below)

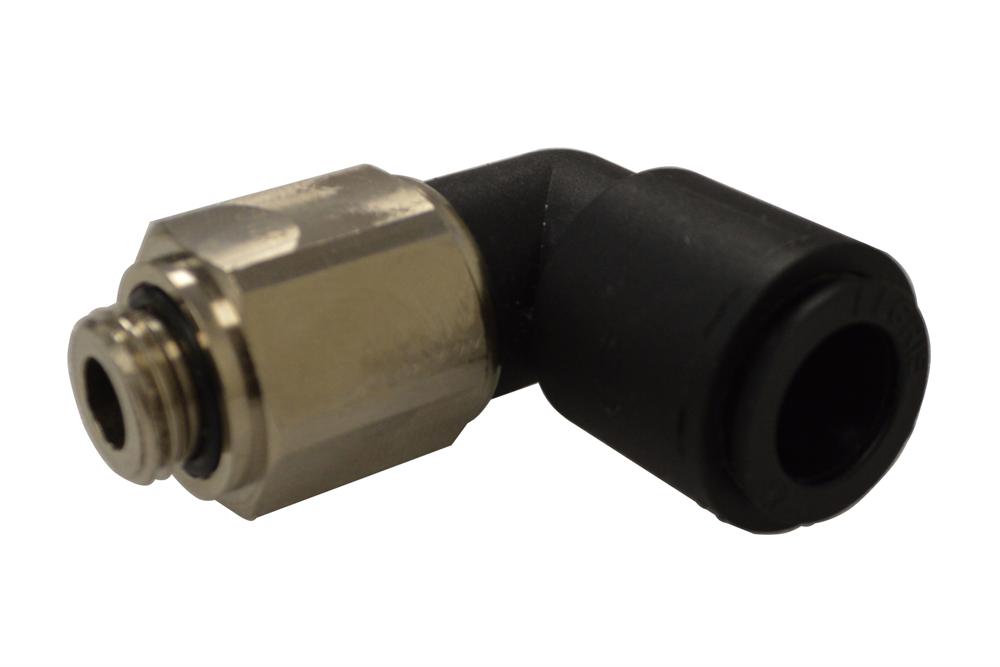

Gas Fittings Inlet Fitting: Elbow Push-in connector for 6mm O.D tube; Outlet Fitting:  Elbow Push-in connector for 12mm O.D tube
Temperature Controller
  • Two 30 segments programmable PID digital temperature controller
  • Note: To achieve fully temperature computerization please order a set of MTS-02 control modules. If you order the control module with the furnace we will install and test it before we ship out the product. We recommend you order a computer (laptop) from us. For more information, please click here
Temperature Uniformity
  • +/- 1°C in heating Zone
Tube rotating Speed
  • 0 - 7 RPM variable
Furnace tilt angle
  • This furnace cannot be tilted
Max. Vacuum level
  • 4.5x10-2 torr (<0.1mtorr/s leaking rate if close all the valves to airtight the tube chamber)
Production Yield
  • 2 kg per batch
Power
  • 8 KW Max
Voltage
  • 208 - 240V single phase (50 A Breaker required)
Warranty
  • One year limited warranty with lifetime support
Laptop, software & WiFi Control (Optional)
  • Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) for immediate use.
  • Labview Based Temperature Control System (MTS01) enables a user to edit temperature profiles, manage heat-treatment recipes, record and plot data for MTI furnaces.
  • A wireless remote control provides up to 300 meters of operating range.
  • The above features are available upon request at an extra cost (up to $1,000).






Compliance
  • CE Certified
  • NRTL (UL61010)  or CSA certification is available at extra cost.

Warning

Click here to learn more about the installation of a gas regulator.
  • The tube furnaces with alumina tube are designed for use under vacuum and low pressure < 0.02 MPa / 0.2 Bar/ 3 PSI
  • Attention: A two-stage pressure regulator must be installed on a gas cylinder to limit the pressure to below 3 PSI for safe operation. Click here to learn the installation of a gas regulator.
  • Never heat the furnace while the gas release valve is closed and a positive pressure condition exists within the furnace chamber. The pressure gauge must be used to closely monitor the chamber condition at all times during the heating process; please open the gas release valve immediately once the chamber pressure has reached over 3 PSI to prevent unforeseeable damages.
  • The flow rate for gases should be limited to < 200 SCCM ( or 200ml/min )
  • limit definition for all alumina tube furnaces: * Vacuum pressures may only be safely used up to 1500°C
Application Notes

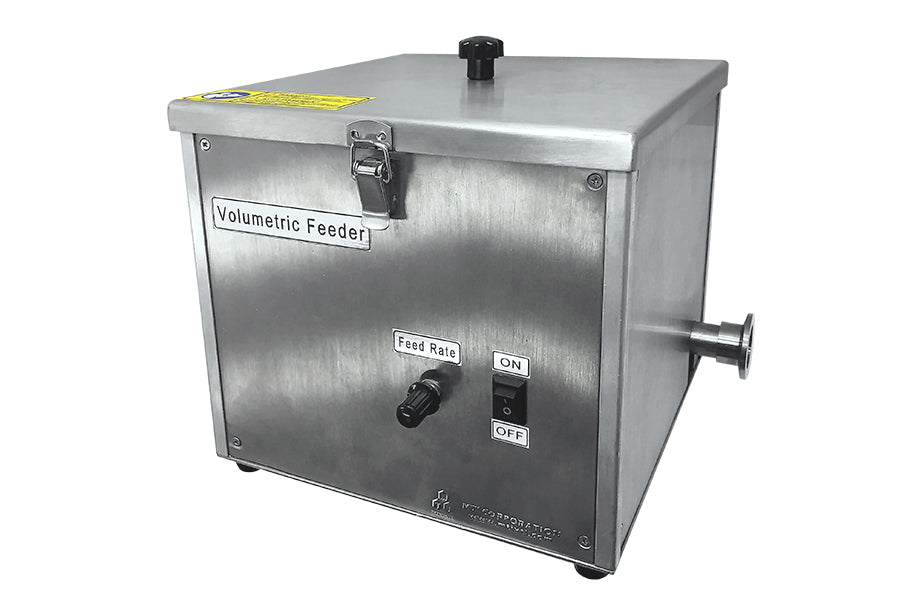

  • Tilting and material feeding mechanism is available upon request at the extra cost.   Please view the assembling approach diagram and video below

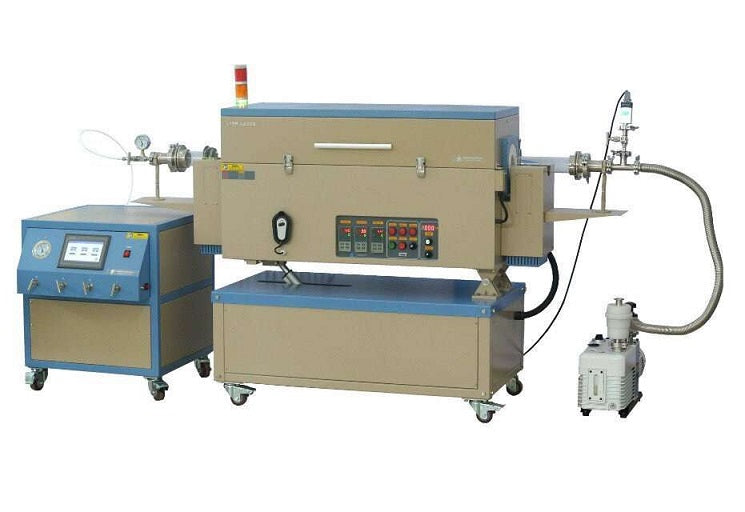

  • For CVD coating, you may choose our multi-channel Gas delivery system as Pic below right
