Description

 1500°C SiC Electric Heating Elements are used in applications ranging in temperature from below 600°C and up to 1500°C in both air and controlled atmospheres, and the type of atmosphere used will determine the maximum recommended element temperature.

Specifications:

  • Materials: SiC
  • Working temperature: max. 1500°C
  • Continuous working temperature 1500°C

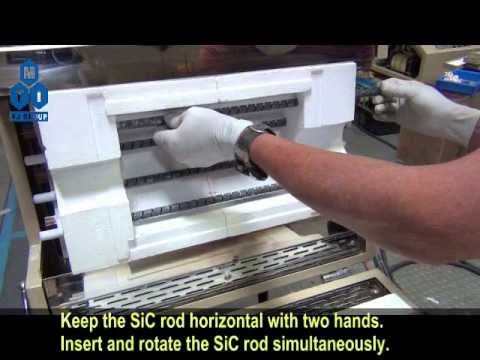

  • Replace heating elements for MTI's OTF-1700X-12Z tube furnace only ( each furnace has 28 SiC heating elements rods)

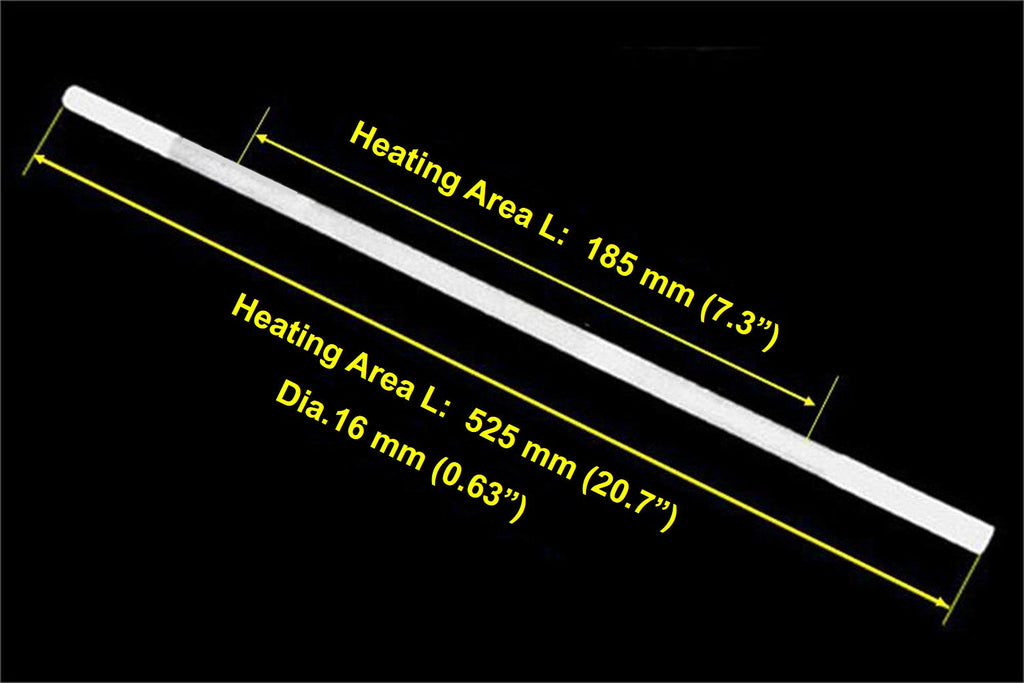

  • Dimension:
    0.63" (16 mm) Dia.
    7.3" (185 mm)  heating zone
    20.7” (525 mm)  overall length
