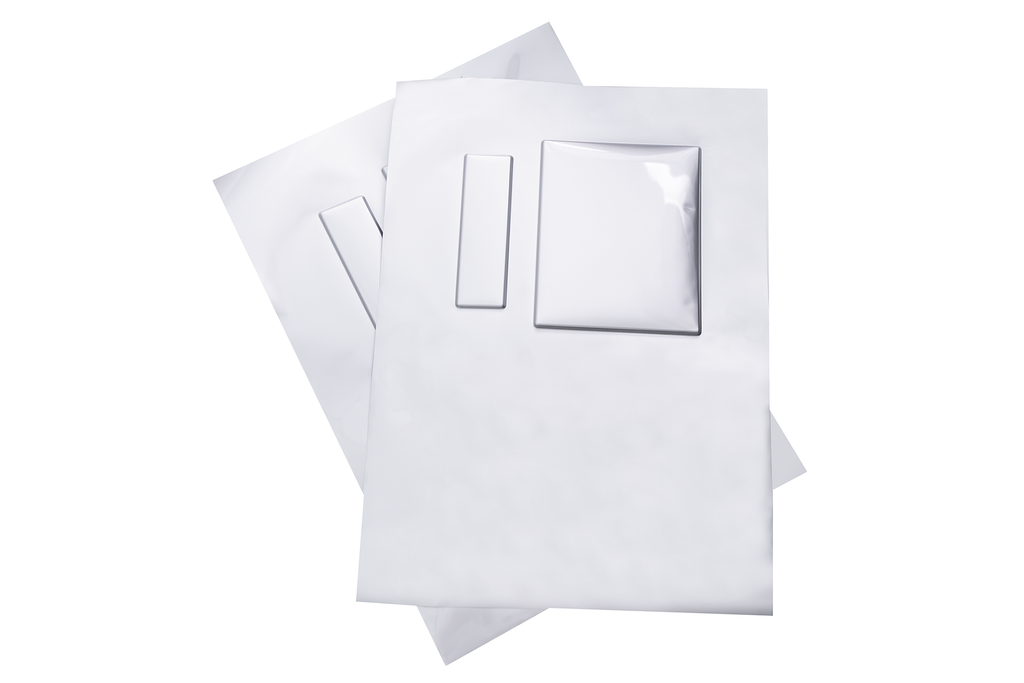

Formed 85120 Pouch Cell Case with Punching Size of L105mm x W84mm x T 3-6mm, 50pcs/Bag -PLiB-85120

Case Dimensions

• Pouch cell with sealing edge area: L120mm x W85mm
  Formed thickness options: From 3 mm to 6 mm; Please select the option from the optional bar

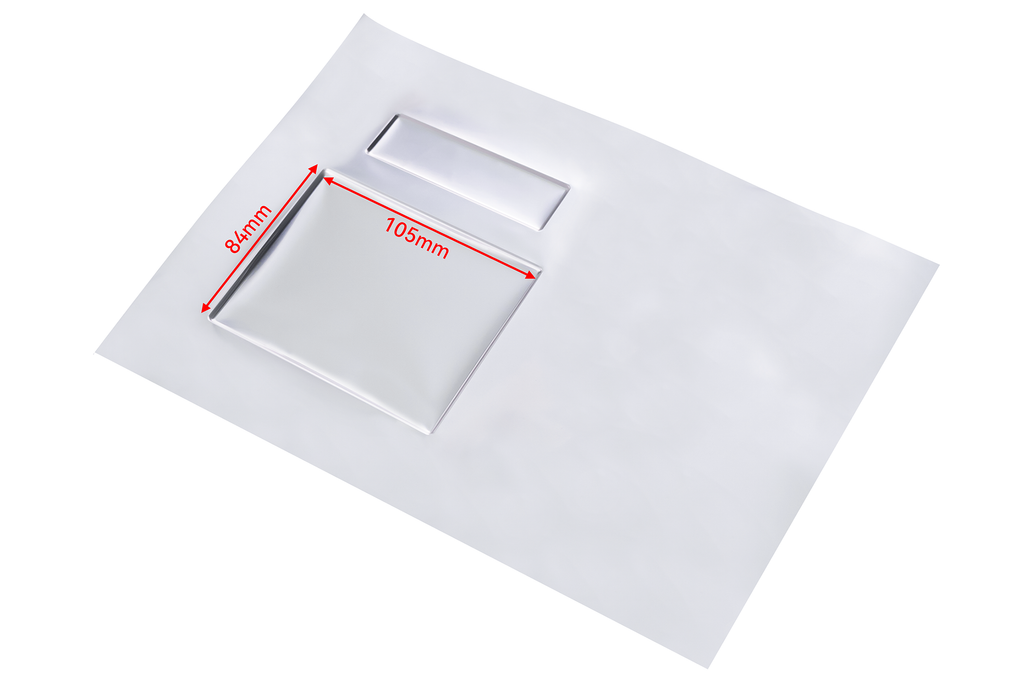

• The real punching area size is L105mm x W84mm

• Polyamide (JIS Z1714):                           0.025mm(+-0.0025mm)
• Adhesive (Polyester-polyurethane):         4-5g/m2
• Aluminum foil (JIS A8079,A8021):          0.040mm(+-0.004mm)
• Adhesive (Urethane-free Adhesive):         2-3g/m2
• Polypropylene:                                     0.040mm(+-0.004mm)

Thickness:

• 111μm±11μm

• 200ppm / 5 years

Laminate Strength

• Nylon/Al      more than 2N/15mm
• Al/CPP       more than 5N/15mm

Heat Seal Strength

• More than 29.4N/15mm wide at 200 x 0.2Mpa x2 sec by MTI's heat sealing equipment MSK-140

Solvent Retention

• Less than 5mg/m2

Optional

• You may use the compact die cutter to make electrode sheet and fit into the case

 Click picture below to learn how to make a polymer battery:

Step 1

Step 2

Step 3

Step 4
