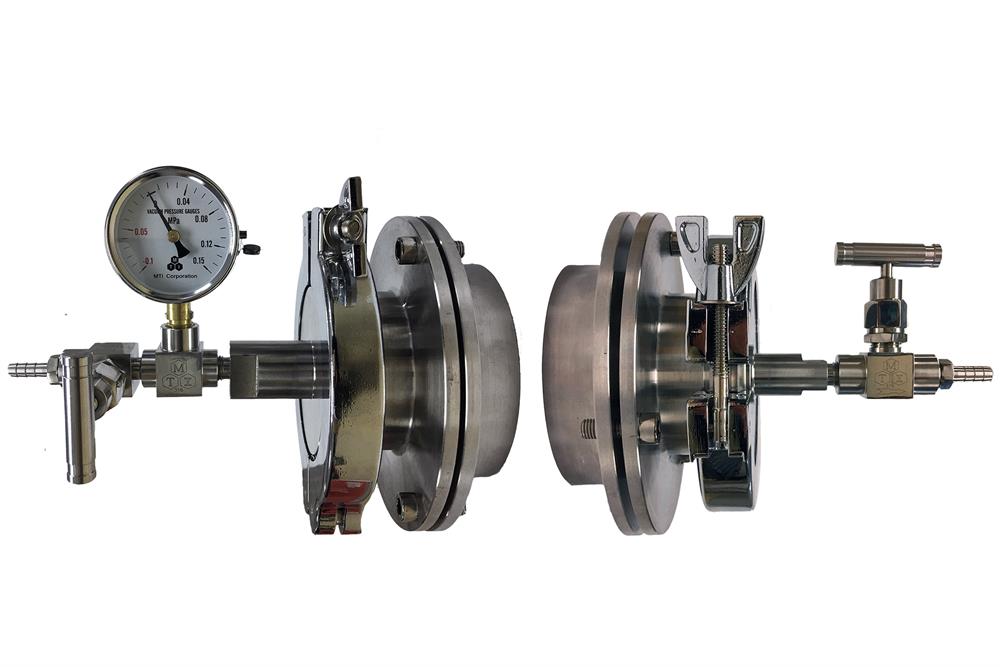

Quick Clamp Vacuum Sealing Assembly for 100mm dia Tube Furnace with KF50 Vacuum Port - FL-100QC

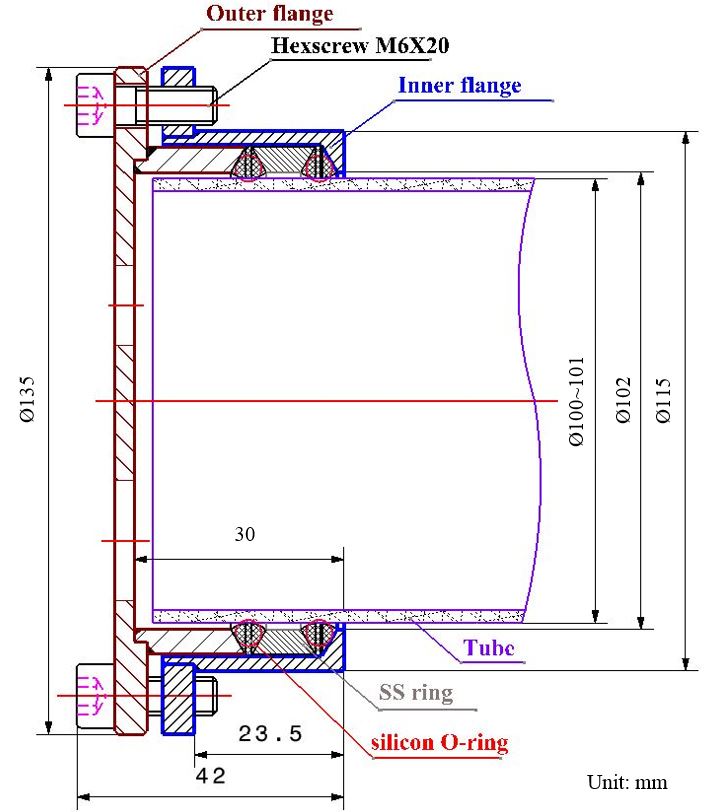

This is a quick clamp vacuum sealing assembly for a tube vacuum furnace tube of OD 100 mm with no welding or gluing needed.

SPECIFICATIONS

Features	Stainless steel flange with double high-temperature silicone O-rings. Seal tube by tightening screws on the flange with no welding and glue needed. Clamp allows quick access to content inside the furnace. High-temperature silicone O-ring and centering ring at flange cap. 1/4" in diameter vacuum sealing assembly connects with a rubber hose. Ideal for any type of tubing: ceramic, glass, quartz, and steel pipe.
Vacuum Level	10E-2 torr by a mechanical pump 10E-5 torr by a small turbopump and  10-6 torr by hi-speed turbopump
Optional Parts	For precision vacuum control up to 10-4 torr, please choose our Digital Vacuum Gauge. (Fig.1) For CVD application, please choose our Anti-corrosive Vacuum Gauge. (Fig.2) We provide various Fitting Ends for separate purchase. (Fig.3) For advanced control over gas flow, please choose our Float-meter. (Fig.4) The product requires flange support, please consider our Adjustable Tube Support. (Fig.5)
Warning	A refractory tube block is required in front of the flange to avoid silicone O-ring melting.  Please consider purchasing our ceramic Tube Block This product is heavy, flange support is required to avoid damage to the furnace tube.
Related Products	( Click pic to choose other size flanges)                                    Vacuum Pump & High Vacuum Station

STANDARD PACKAGE:
