SKU: fg-76wc

Price: RFQ

Description

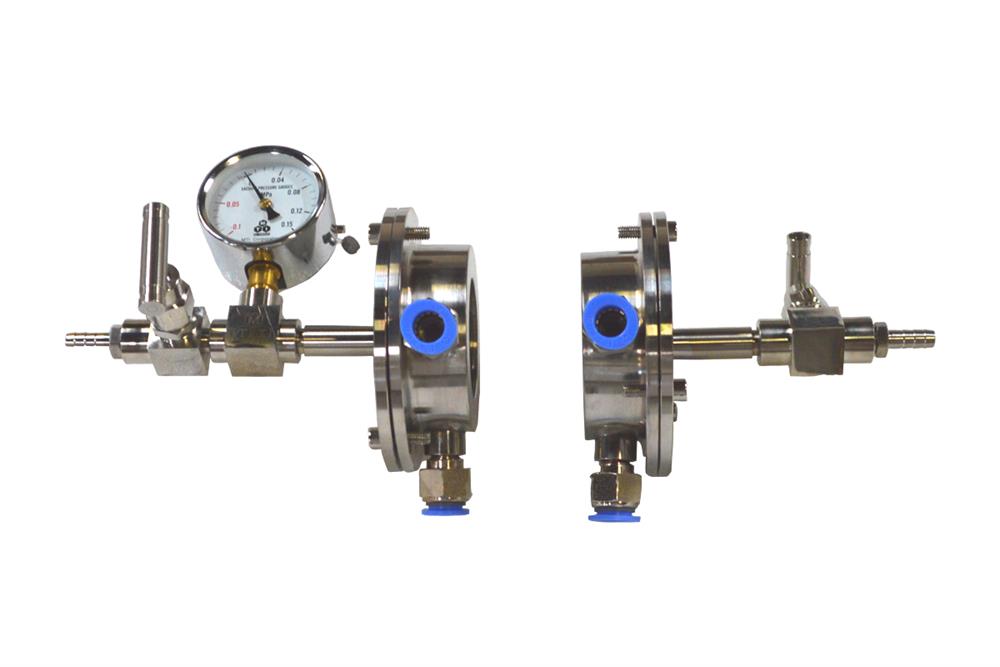

 This is a pair of sealing flange with a water cooling jacket valve for OD 3" ( (76.2) mm diameter processing tube. If you cannot use a ceramic block in two end of tube, you must use the water cooling jacket to keep the flange cool (otherwise silicone o-ring may get damage) SPECIFICATIONS Features Made of Stainless Steel with double high-temperature silicone O-rings on the flange. Stainless steel needle valve with 1/4" barbed fitting. 12mm Push to Connect for water tube. The assembly kit will seal one end of a 75-77 mm diameter ceramic and quartz tube. A vacuum meter is installed on one side of the flange. You may choose the left side, right side, or the full set of the flange at the product option bar Vacuum level 10E-2 torr by a mechanical pump 10E-5 torr by a small turbopump and 10-6 torr by hi-speed turbopump Warming Must put a refractory tube block in front of the flange ( see picture below ) to avoid heat radiation melt silicone O-ring. Please click the picture below-center to order the block. Please do not over tighten the three hex screws on the flanges to avoid overpressure incidents. The recommended torque is 35~40 inch-lbs. For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gases with our flange assemblies. Please contact us with any concerns. Optional Please click here to order a digital vacuum gauge for precision vacuum control up to 10 -4 torr For CVD application, please choose anti-corrosive vacuum gauge ( click pic below left 2 ) You can choose the various end of fitting as options ( click here to order separately ) You may click here order a flowmeter to control gas flowing You may order flange support to avoid tube turning ( pic below right) Application Notes Max. furnace working temperature is 1100ºC without thermal block If furnace working temperature > 1100ºC, suggest you use a thermal block Please always use a recirculating water chiller (see related product below) to save water and protect Optional ( Click pic to choose other size flanges) Vacuum Pump & High Vacuum Station

Features
  • Made of Stainless Steel with double high-temperature silicone O-rings on the flange.
  • Stainless steel needle valve with 1/4" barbed fitting.
  • 12mm Push to Connect for water tube.
  • The assembly kit will seal one end of a 75-77 mm diameter ceramic and quartz tube.
  • A vacuum meter is installed on one side of the flange.
  • You may choose the left side, right side, or the full set of the flange at the product option bar






Vacuum level
Warming
  • Must put a refractory tube block in front of the flange ( see picture below ) to avoid heat radiation melt silicone O-ring. Please click the picture below-center to order the block.
  • Please do not over tighten the three hex screws on the flanges to avoid overpressure incidents. The recommended torque is 35~40 inch-lbs.
  • For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gases with our flange assemblies. Please contact us with any concerns.



Optional






Application Notes
  • Max. furnace working temperature is 1100ºC without thermal block
  • If furnace working temperature > 1100ºC, suggest you use a thermal block
  • Please always use a recirculating water chiller (see related product below) to save water and protect
Optional
                          Sealing flanges for 40 - 42 mm O.D tube                                                             Vacuum pump and high vacuum station

 ( Click pic to choose other size flanges)                                    Vacuum Pump & High Vacuum Station
