SYH-5 is a three-dimensional movement mixer & ball mill designed for processing dry powder. The sample inside the tank moves in three dimensions, so there is no centrifugal force, no gravity segregation, and no accumulation. It is suitable for mixing materials that have large specific gravity differences. The mixing tank is made of SS304, and the standard product in stock is 15L, but 1.0 L and 5 L mixers are optional.
( Upgraded to variable speed by frequency change since Jan. 20, 2021 )
SPECIFICATIONS
| Input Voltage & Power |
- 220VAC, 600W, 50/60Hz
- 110V version is available with a 500W transformer
|
Mixing Tanks
|
- Tanks are made of SS304, which is airtight via a Silicone o-ring
-
Standard tank size 5 L, which can accept 0.5L, 1L, and 2L which is available upon request

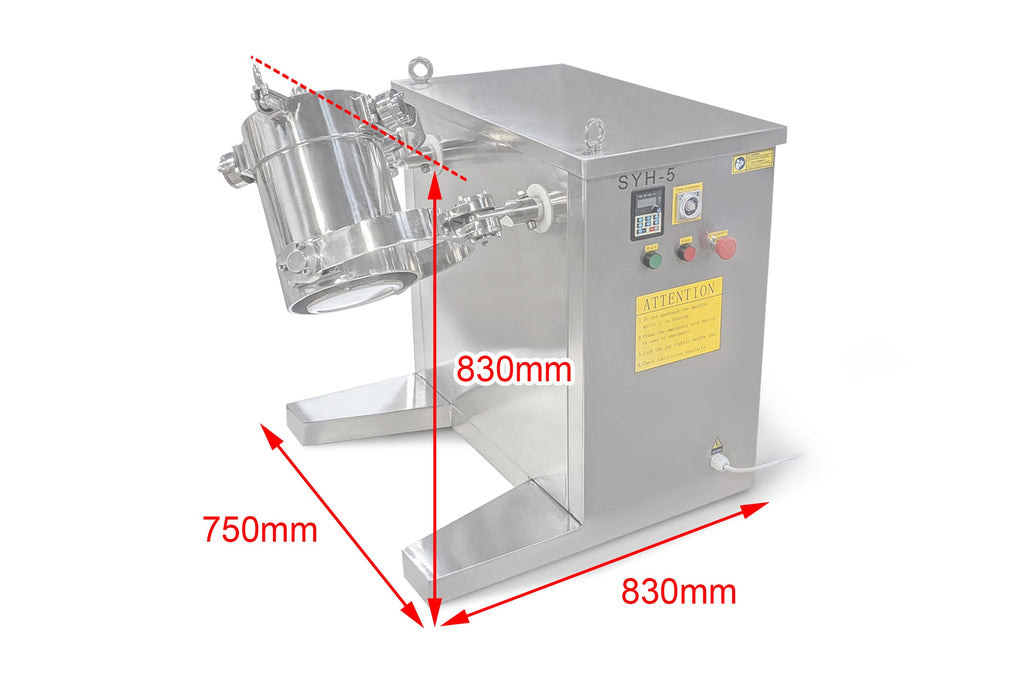

- One 5L mixing tank is included for immediate use, see Pic. 2
-
The 3D mixers from 2L and 15L capacity tanks are available upon request at extra cost, see Pic.3
|
| Speed |
- Tank rotation speed: Adjustable up to 22 RPM by frequency change with the constant output of power
|
| Timer |
- 0- 99 Hrs by a digital timer
|
| Optional Milling Ball |
- Please click the picture below to choose milling balls
-
![]()
|
| Certification |
- CE Certified
- NRTL / CSA certification is available upon request
- For the NRTL version, we will add a protection cover and touch-screen panel at extra cost.
|
Pic. 1
Pic.2
Pic.3
