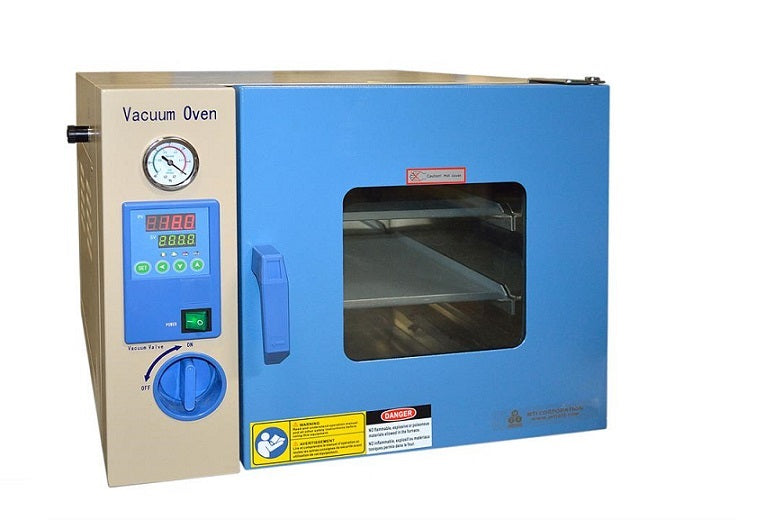

DZF-6050-Series is a vacuum oven with a KF25 adapter and a manual leak valve for venting. The maximum working temperature is 200 °C. Max vacuum level can reach 10^-2 torr at room temperature
SPECIFICATIONS:
| Features |
- Stainless steel chamber with two layers of sample rack.
- Inner chamber size: 415 x 345 x 373 mm, 53 Liter, (L×H×D)
- A good vacuum sealing is achieved by the silicone gasket and the positive latch door.
- The double-layer window consists of 1/2" tempered glass and a transparent polycarbonate shield.
- An adjustable leak valve for venting
- KF25 Port connection with a vacuum pump.
|
| Power |
- AC 110 - 120 V 50/60 Hz (ETL Certified)-- power cable and plug are included
- AC 208-240 VAC, power cable is included without a plug.
- 1400 VA
|
| Working Temperature |
|
Temperature Controller
|
- Single-point PID temperature controller
- Built-in over-temperature protection
- Temperature control accuracy: +/-1°C
- Temperature uniformity: +/-5°C @ 100°C, 25" Hg at center 8" x 6.5" area only
|
| Vacuum Port |
|
| Ultimate Vacuum |
- < 50 mTorr (at 200 °C), <8 mTorr at R.T. after bake-out with a 240 L/m mechanical pumps
- Mechanical pump is not included.
|
| Standard Package |
- Barbed fitting to KF-25 Adapter, EQ-BARB-KF25, 1 set
- KF-25 Quick Clamp with Rubber O-Ring, 1 set
|
Optional accessories
|
- KF-D25 Flexible Stainless Steel Vacuum Bellows, 1 meter
- Spare Silicone gasket for door seal
|
Compliance |
- NTRL (ETL) Certificated for 110V version only
- CE Certificated for the 220V version
|
Application Notes |
- For more information on how to calibrate the oven temperature.
- An optional 4-pin electric feedthrough could be installed from side the oven at an extra cost
-

|
| Attention |
- It's normal that the SS chamber wall will be slightly deformed and dulled at the surface during high-temperature operation under a vacuum. However, this would not affect any performance.
- Please do not place the sample at the bottom of the chamber directly due to temperature uniformity issue.
|
