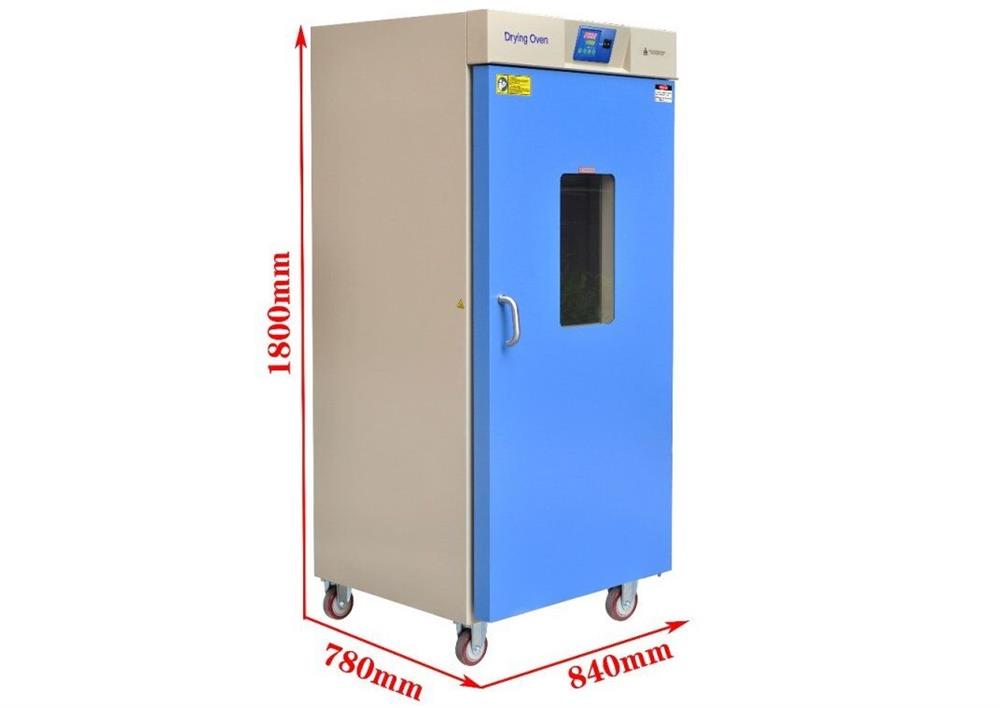

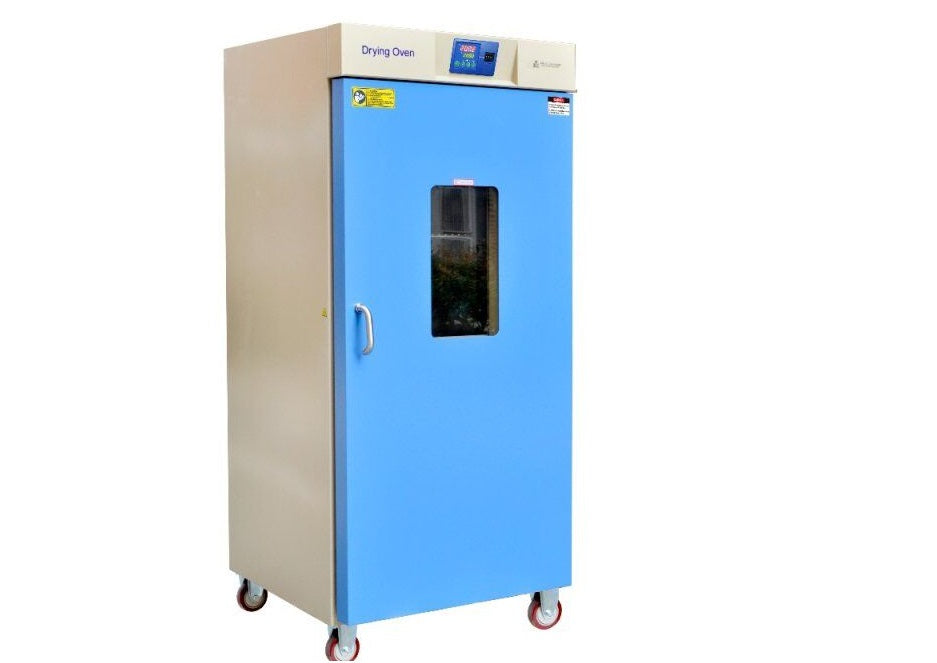

420L Convection Dry Oven with Digital Temperature Controller (25"x23"x53", 250C Max) - DHG-9425
  • 420L Convection Dry Oven with Digital Temperature Controller (25"x23"x53", 250C Max) - DHG-9425
  • 420L Convection Dry Oven with Digital Temperature Controller (25"x23"x53", 250C Max) - DHG-9425
  • 420L Convection Dry Oven with Digital Temperature Controller (25"x23"x53", 250C Max) - DHG-9425
  • 420L Convection Dry Oven with Digital Temperature Controller (25"x23"x53", 250C Max) - DHG-9425
420L Convection Dry Oven with Digital Temperature Controller (25"x23"x53", 250C Max) - DHG-9425

420L Convection Dry Oven with Digital Temperature Controller (25"x23"x53", 250C Max) - DHG-9425

SKU: dhg-9425

Price: RFQ

Specifications

 DHG-9425 is a Large Mechanical Convection Oven with a digital temperature controller. It can achieve dependable, uniform conditions by converting heat to the sample evenly. Such convection oven can be widely used for drying, storing, wax-melting and sterilization. SPECIFICATIONS: Working Voltage 208-240V AC, Single Phase, 50/60 Hz (30A Breaker Required) Max. Power Consumption 3500W Operating Temperature 250°C max continuously Max. Heating Rate 10°C/min Temperature Stability ± 1.0 °C Temperature Uniformity ± 2°C @100°C Chamber Interior Material: Stainless Steel 3 stainless steel shelves were included for immediate use Dimensions: L 640 mm x W 585 mm x H 1355mm ( ~25 L“x23" Wx53 H) Volume: 420L Max loading weight on each shelf: ~10kg Temperature Controller digital temperature controller with +/- 1°C accuracy Sensor The overheat protection sensor automatically cuts power if over-heated Compliance CE Certified. NRTL or CSA certification s available upon request at the extra cost. Application Notes For accurate temperature recording, you shall calibrate the temperature by Temperature Calibrating Kit by yourselves, and set temperature offset in the controller Please click here to learn How to Calibrate the oven temperature and set temperature offset

Working Voltage 208-240V AC, Single Phase, 50/60 Hz (30A Breaker Required)
Max. Power Consumption 3500W
Operating Temperature 250°C max continuously
Max. Heating Rate 10°C/min
Temperature Stability ± 1.0 °C
Temperature Uniformity ± 2°C @100°C

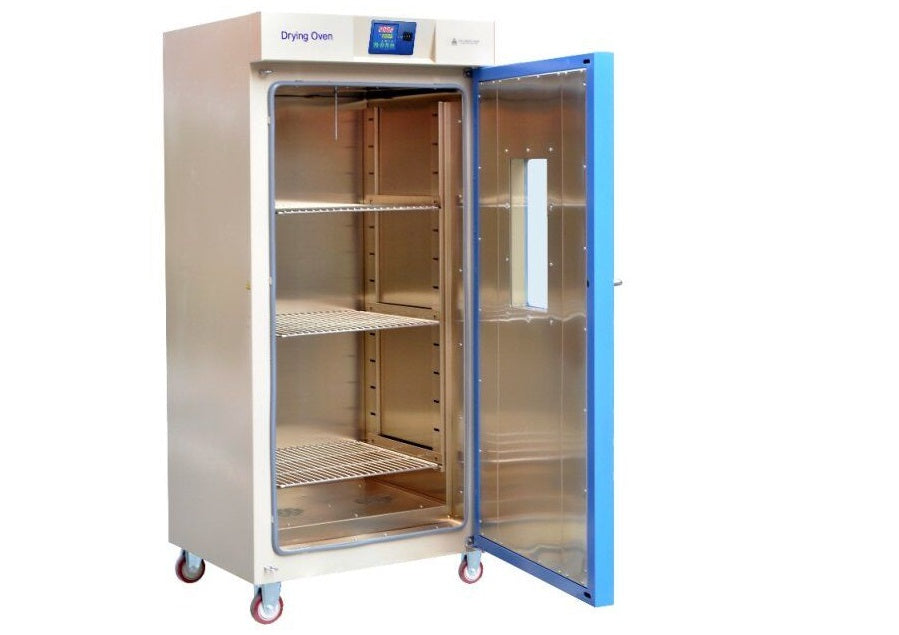

Chamber
  • Interior Material: Stainless Steel
  • 3 stainless steel shelves were included for immediate use

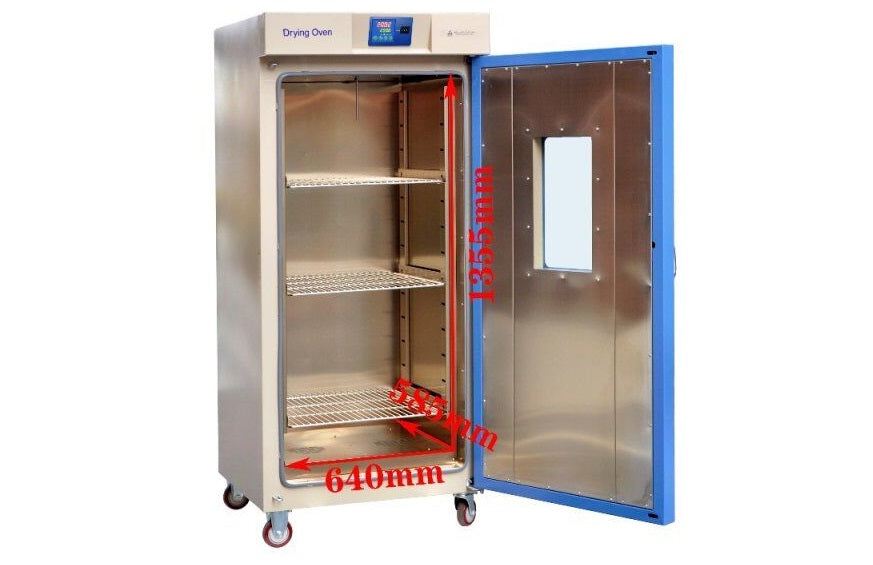

  • Dimensions: L 640 mm x W 585 mm x H 1355mm ( ~25 L“x23" Wx53 H)
  • Volume: 420L
  • Max loading weight on each shelf: ~10kg
Temperature Controller  digital temperature controller with +/- 1°C accuracy
Sensor The overheat protection sensor automatically cuts power if over-heated
Compliance CE Certified.
NRTL or CSA certification s available upon request at the extra cost.
Application Notes
