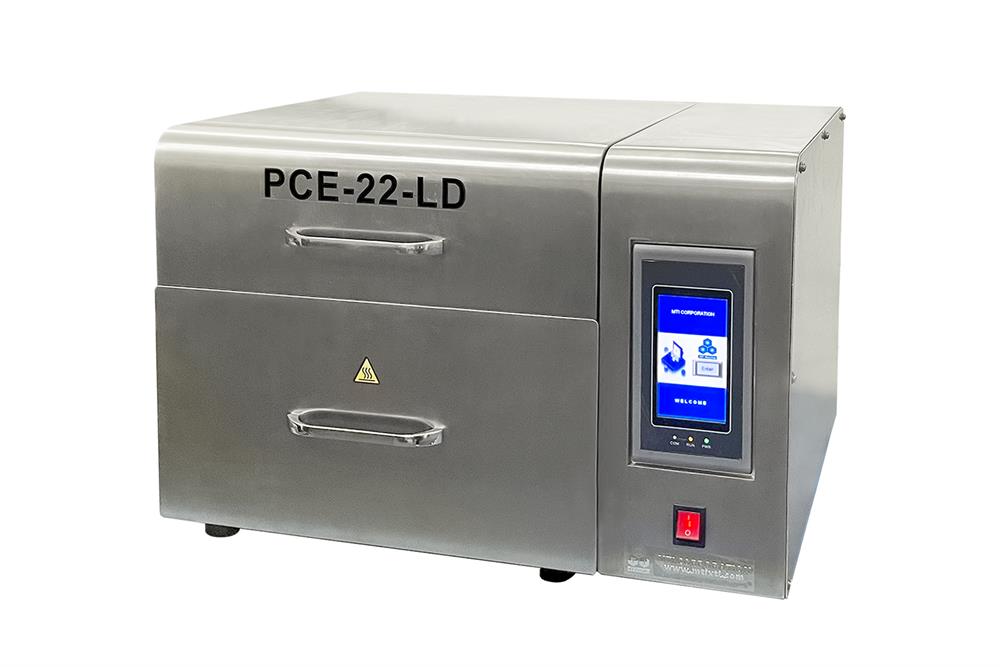

Desktop UV-Ozone Cleaner with 12" x 12" Chamber and Heating Stage up to 150C -PCE22

SKU: desktop-uv-ozone-cleaner-with-12-x-12-chamber-and-heating-stage-up-to-150c-eq-pce-22

Price: RFQ

Description

PCE-22 is a desktop Ultraviolet (UV) Ozone cleaner with a substrate heater, which is used for cleaning all types of substrates to achieve better film quality at a low cost. Also, it is an excellent tool to remove and strip photoresist, improve surface wettability, Clean SEM & TEM samples, UV polymer activation, assembly, etc. UV-Ozone Cleaner has proven to be highly effective for non-acidic, dry, non-destructive atomic cleaning and removal of organic contaminants using intense 185 nm and 254 nm UV light. Under air and room temperature, the 185 line produces Ozone and while the 254 line excites organic molecules on the surface. This combination drives the rapid destruction and decimation of organic contaminants. SPECIFICATIONS Input Power AC 220V, 50/60 Hz, (110VAC available upon request ) Power 350 W Max. Environment Requirement Indoor Use Only; Altitude Use Up To 5,500 Feet; Temperature Range 41-104 Degrees Fahrenheit; Maximum Relative Humidity 80%, Up To 87 Degrees Fahrenheit Decreasing Linearly to 50% Relative Humidity At 104 Degrees Fahrenheit; Main Power Supply Fluctuations Not To Exceed 10% Of The Nominal Voltage; Overvoltage Category II; Pollution Degree 2; ozone level (ambient) measurement at <45 ppb. UV Lamp One Solid metal double-wave mercury lamp is included Wave Length: 253.7nm and 184.9nm UV lamp service life: 5000 hrs UV light area: 200 x 200 mm Can clean crystal wafer with a diameter up to 12“ x 35 mm thickness. The UV lamp is shipped separately with the machine to avoid potential transportation damage. It's the user's responsibility to read the user manual and carefully install the lamp to the machine. MTI is not responsible for any property, including the lamp, damage that results from improper installation and operation. The fragile UV lamp does not include in any warranty, please click to order spare . Chamber & Sample Stage Stainless steel case Sliding drawer for easy sample loading Sample stage area is 310 mm x 320 mm ( ~12"x12" ) Max. sample thickness: 40 mm An ozone venting device is built in the chamber The timer ranges from 0.01 seconds to 99.9 hours. Heatable Sample Stage The sample stage is heatable up to 150ºC with the precision temperature controller The temperature controller is 30 segments programmable with +/-2 C accuracy Temperature uniformity:<10C within 6 inches diameter area; <20C within 12 inches diameter Heating rate: 15C/min max. The distance between the sample stage and the lamp is adjustable from 20mm to 40mm. Optional: The heating chamber can be upgraded to 300oC with +./- 0.1 oC acctracy at extra cost Vent Port 3 in. the diameter vent port is built in the back of the machine One 10 ft. flexible pipe and one vent clamp are included for connecting the cleaner exhaust to a lab venting system. Dimension 550mm L x 540mm W x 360mm H Net Weight 62 lbs Shipping Weight & Dimensions 160 lbs 47" x 39" x 32" Compliance CE certification is available upon request NRTL/CSA certification is available upon request at an extra cost Warranty One-year limited warranty with lifetime support. The fragile UV lamp is not included in the warranty. Operation Video Application Clean s ilicon wafer, Gallium Arsenide wafer, quartz, and ITO glass Clean all types of oxide single crystal substrates such as sapphire, STO, and LAO. Clean gold and Pt surface An oxidizing surface of a light metallic material Activate Polymers and Crosslink Polymers UV Strip Photo Resist / Photoresist UV Clean Production Line LED displays Reference articles 1. C. Koenigsmann et al. J. Am. Chem. Soc. 2011, 133, 25, 9783–9795 . 2. M. Cargnello, J. Am. Chem. Soc. 2015, 137, 21, 6906–6911. 3. D. Li, ACS Catal. 2012, 2, 7, 1358–1362.

Input Power	AC 220V, 50/60 Hz, (110VAC available upon request ) Power 350 W Max.
Environment Requirement	Indoor Use Only; Altitude Use Up To 5,500 Feet; Temperature Range 41-104 Degrees Fahrenheit; Maximum Relative Humidity 80%, Up To 87 Degrees Fahrenheit Decreasing Linearly to 50% Relative Humidity At 104 Degrees Fahrenheit; Main Power Supply Fluctuations Not To Exceed 10% Of The Nominal Voltage; Overvoltage Category II; Pollution Degree 2; ozone level (ambient) measurement at <45 ppb.

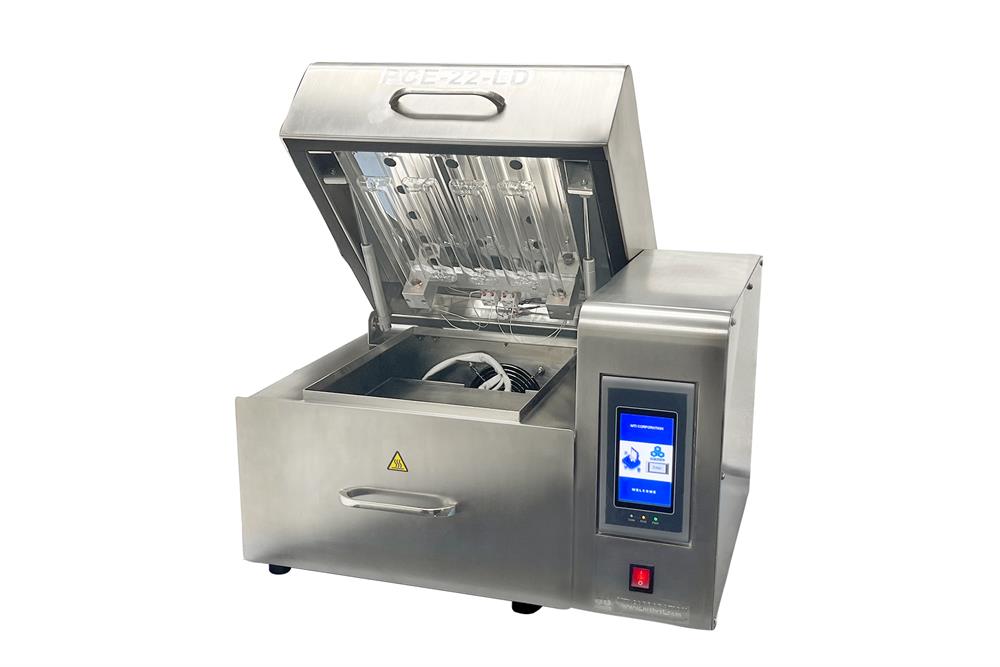

UV Lamp	One Solid metal double-wave mercury lamp is included Wave Length: 253.7nm and 184.9nm UV lamp service life: 5000 hrs UV light area: 200 x 200 mm Can clean crystal wafer with a diameter up to 12“ x 35 mm thickness. The UV lamp is shipped separately with the machine to avoid potential transportation damage. It's the user's responsibility to read the user manual and carefully install the lamp to the machine. MTI is not responsible for any property, including the lamp, damage that results from improper installation and operation. The fragile UV lamp does not include in any warranty, please click to order spare.

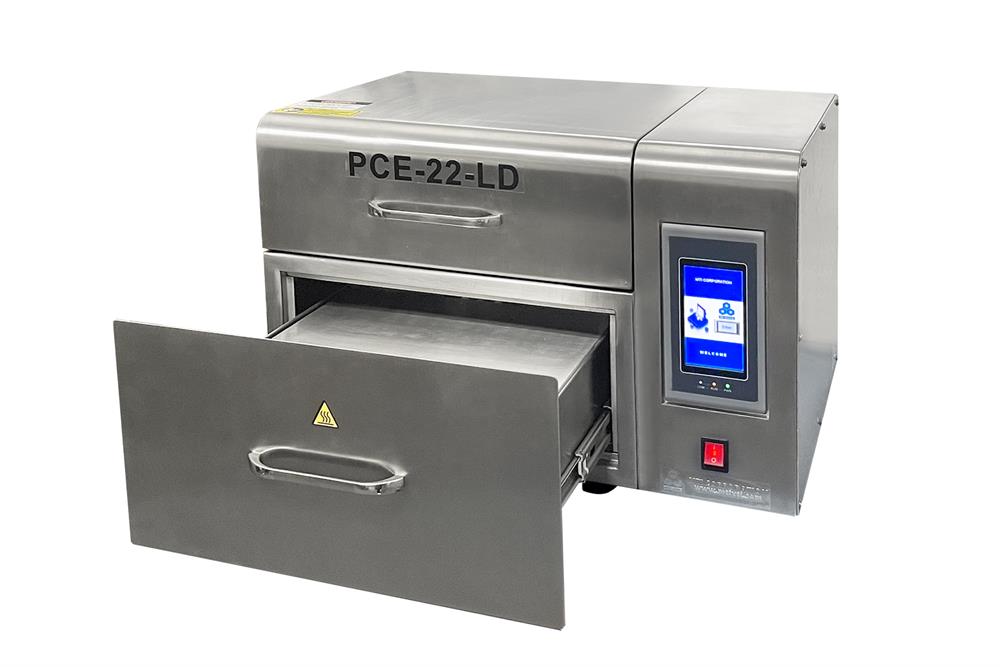

Chamber & Sample Stage	Stainless steel case Sliding drawer for easy sample loading Sample stage area is 310 mm x 320 mm ( ~12"x12" ) Max. sample thickness: 40 mm An ozone venting device is built in the chamber The timer ranges from 0.01 seconds to 99.9 hours.
Heatable Sample Stage	The sample stage is heatable up to 150ºC with the precision temperature controller The temperature controller is 30 segments programmable with +/-2 C accuracy Temperature uniformity:<10C within 6 inches diameter area; <20C within 12 inches diameter Heating rate: 15C/min max. The distance between the sample stage and the lamp is adjustable from 20mm to 40mm. Optional: The heating chamber can be upgraded to 300oC with +./- 0.1 oC acctracy at extra cost
Vent Port	3 in. the diameter vent port is built in the back of the machine One 10 ft. flexible pipe and one vent clamp are included for connecting the cleaner exhaust to a lab venting system.
Dimension	550mm L x 540mm W x 360mm H
Net Weight	62 lbs
Shipping Weight & Dimensions	160 lbs 47" x 39" x 32"
Compliance	CE certification is available upon request NRTL/CSA certification is available upon request at an extra cost
Warranty	One-year limited warranty with lifetime support. The fragile UV lamp is not included in the warranty.
Operation Video
Application	Clean silicon wafer, Gallium Arsenide wafer, quartz, and ITO glass Clean all types of oxide single crystal substrates such as sapphire, STO, and LAO. Clean gold and Pt surface An oxidizing surface of a light metallic material Activate Polymers and Crosslink Polymers UV Strip Photo Resist / Photoresist UV Clean Production Line LED displays
Reference articles	1. C. Koenigsmann et al. J. Am. Chem. Soc. 2011, 133, 25, 9783–9795. 2. M. Cargnello, J. Am. Chem. Soc. 2015, 137, 21, 6906–6911. 3. D. Li, ACS Catal. 2012, 2, 7, 1358–1362.
