Desk-top Semi-Auto Grooving Machine for Various Cylinder Cell - MSK-500 Series

RM0.00 MYR

Desk-top Semi-Auto Grooving Machine for Various Cylinder Cell - MSK-500 Series

Name: Desk-top Semi-Auto Grooving Machine for Various Cylinder Cell - MSK-500 Series
Brand: MTI
SKU: MSK500
Availability: OutOfStock

SKU: desk-top-semi-auto-grooving-machine-for-various-cylinder-cell-msk-500-series

Price: RFQ

Description

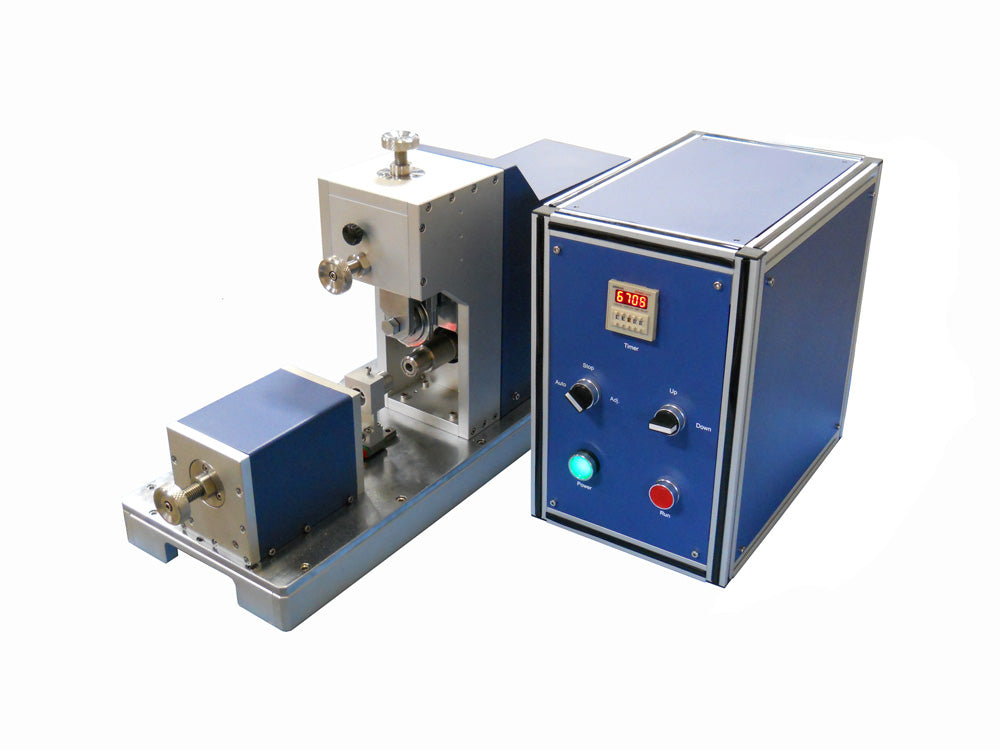

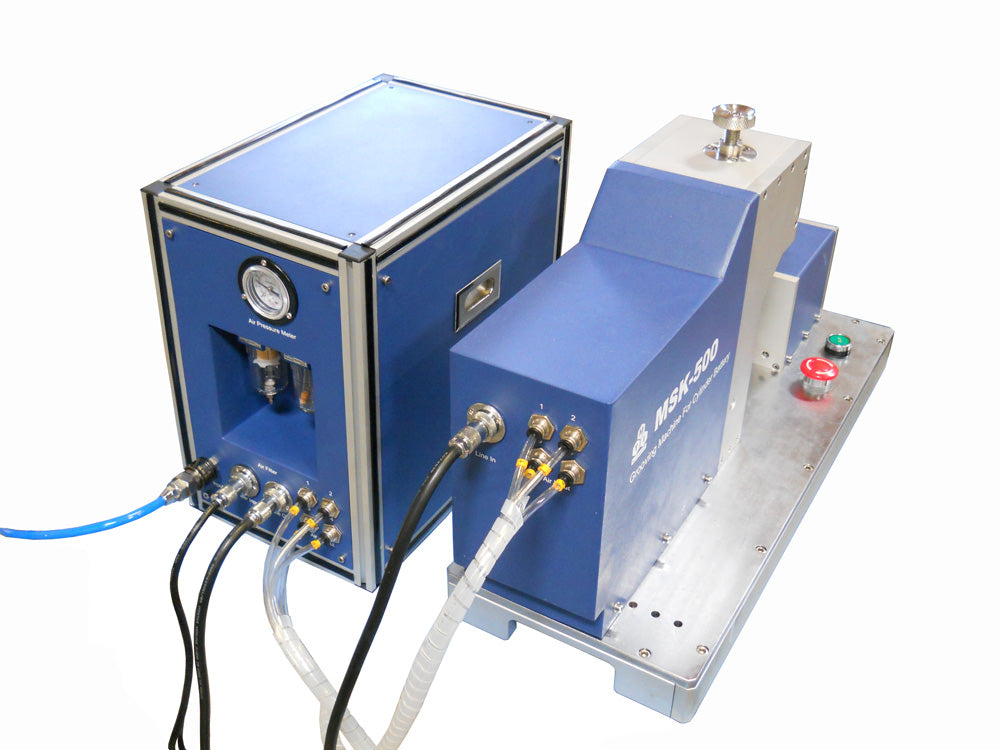

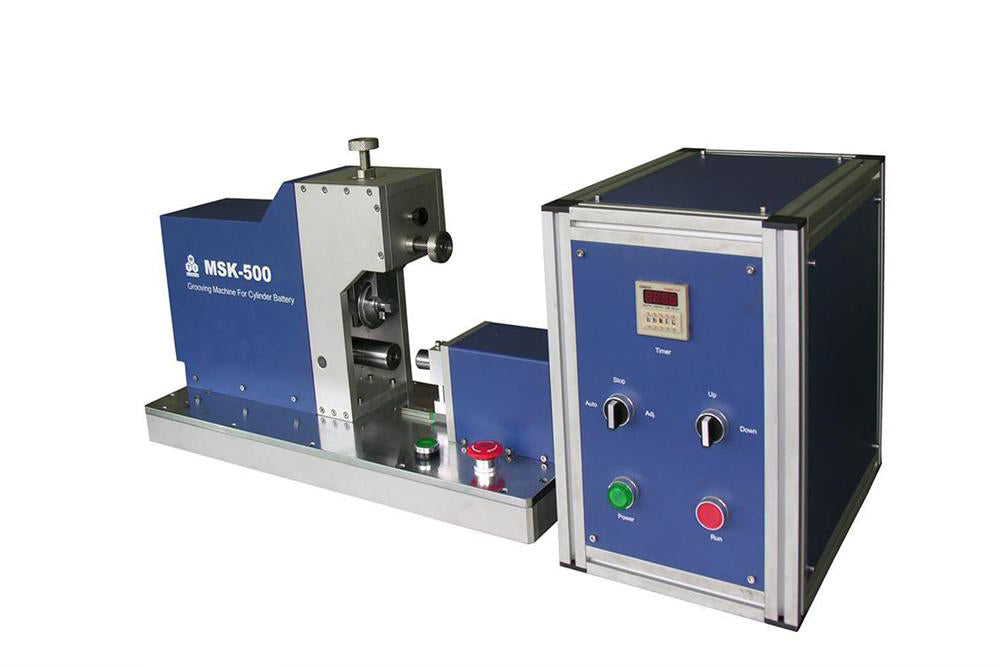

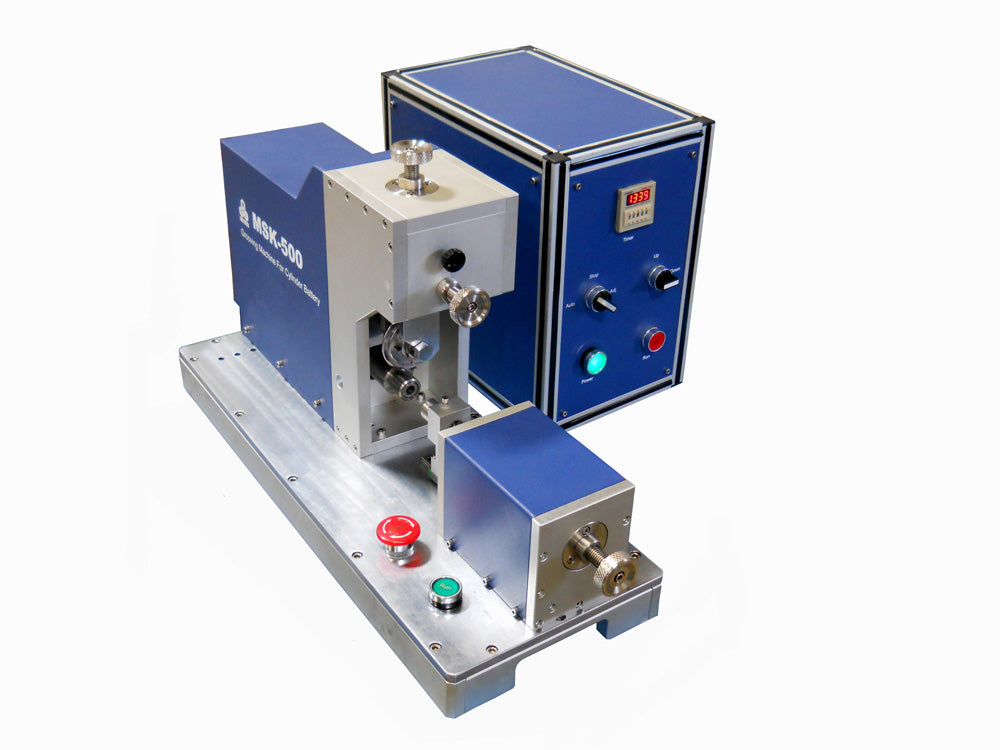

MSK-500 Series is a CE Certified semi-auto grooving machine. It is used for grooving various cylindrical cases including CR123,18650,21700,26650, 32650 and AA . MTI has granted the patent 201120464651.8 for the Cylindrical Cell Grooving Machine MSK-500 Series since July 2012 . SPECIFICATIONS: Working Voltage 110V/220V AC, 50/60Hz Single Phase Max. Power Consumption 140W Air Pressure >0.5 MPa is required ( Air Compressor is not included , please click here to order ) Attention: If a gas cylinder is used instead of air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator. pic1 pic2 Compatibility CR123 / 18650 / 26650 / 32650 / AA (Please select the cell type in the option bar) Grooving Dimensions Depth: 1.2 - 2.0 mm Width: 1.1 - 1.5 mm Grooving Accuracy +/- 0.1 mm Grooving Blade Durability >1 million times Productivity 400 grooving per hour Product Dimensions 600mm(L) x 230mm(W) x 350mm(H) (24" x 9" x 14") Net Weight 68 kg (150 lbs) Compliance CE Certified Patten Number : ZL-2011-2-0464651.8 Application Notes Customized die for other cylindrical cell types is available upon request It is necessary to seal the cap of the cylindrical case by using the MSK-510 sealing machine after grooving the opening end Each machine should be used with one particular type of grooving die only. A separate set of machine is suggested to use for another set of grooving die. Each type of cylinder cell can only be grooved specifically by a certain model of this equipment. Please select the type of cylinder cell in the Product Options dropbox to check the model number and price for the corresponding grooving die of each cylinder cell type Please check the chart below to order the cylindrical cases. P/N Description (click to view details) Case Dimensions EQ-Lib-CR123 100 pcs CR123 cylindrical case EQ-Lib-18650 100 pcs 18650 cylindrical case EQ-Lib-26650 100 pcs 26650 cylindrical case EQ-Lib-32650 60 pcs 32650 cylindrical case EQ-Lib-AA 100 pcs AA cylindrical case

Working Voltage

110V/220V AC, 50/60Hz Single Phase

Max. Power Consumption

140W

Air Pressure

>0.5 MPa is required (Air Compressor is not included, please click here to order)
Attention: If a gas cylinder is used instead of air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
pic1 pic2

Compatibility

CR123 / 18650 / 26650 / 32650 / AA (Please select the cell type in the option bar)

Grooving Dimensions

Depth: 1.2 - 2.0 mm
Width: 1.1 - 1.5 mm

Grooving Accuracy

+/- 0.1 mm

Grooving Blade Durability

>1 million times

Productivity

400 grooving per hour

Product Dimensions

600mm(L) x 230mm(W) x 350mm(H) (24" x 9" x 14")

Net Weight

68 kg (150 lbs)

Compliance

CE Certified

Patten Number : ZL-2011-2-0464651.8

Application Notes

Customized die for other cylindrical cell types is available upon request
It is necessary to seal the cap of the cylindrical case by using the MSK-510 sealing machine after grooving the opening end
Each machine should be used with one particular type of grooving die only. A separate set of machine is suggested to use for another set of grooving die.
Each type of cylinder cell can only be grooved specifically by a certain model of this equipment. Please select the type of cylinder cell in the Product Options dropbox to check the model number and price for the corresponding grooving die of each cylinder cell type
Please check the chart below to order the cylindrical cases.

P/N	Description (click to view details)	Case Dimensions
EQ-Lib-CR123	100 pcs CR123 cylindrical case
EQ-Lib-18650	100 pcs 18650 cylindrical case
EQ-Lib-26650	100 pcs 26650 cylindrical case
EQ-Lib-32650	60 pcs 32650 cylindrical case
EQ-Lib-AA	100 pcs AA cylindrical case

,

P/N	Description (click to view details)	Case Dimensions
EQ-Lib-CR123	100 pcs CR123 cylindrical case
EQ-Lib-18650	100 pcs 18650 cylindrical case
EQ-Lib-26650	100 pcs 26650 cylindrical case
EQ-Lib-32650	60 pcs 32650 cylindrical case
EQ-Lib-AA	100 pcs AA cylindrical case
