SKU: msk510m-mach

Price: RFQ

Description

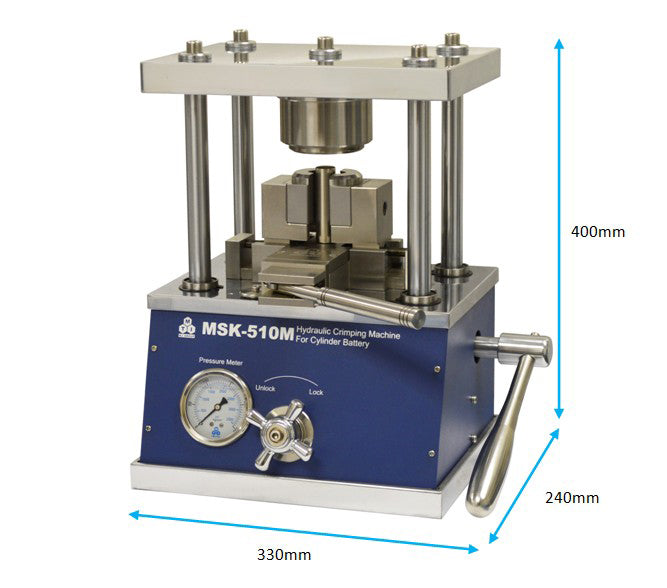

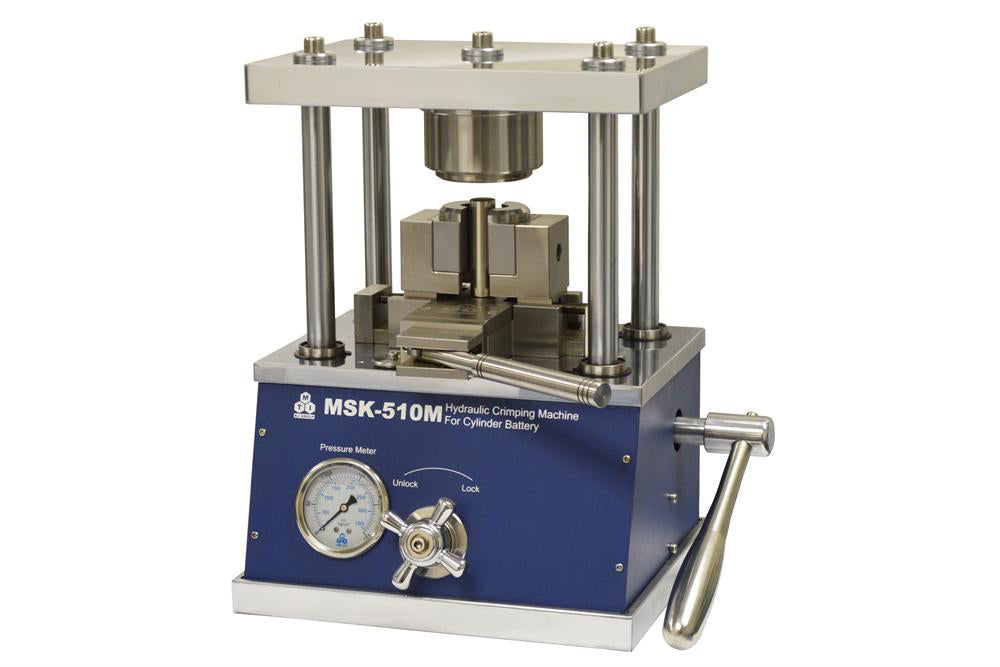

 MSK-510M is a compact hydraulic crimper for sealing all types of cylinder cases in battery R&D labs. The compact body design allows it to be easily placed inside a glove box and thus preventing contamination of the electrolyte materials during cell assembly. Its simple operation and safety protection feature allow customers to master the sealing procedure within 5 minutes. MSK-510M is updated with two-step precision crimping dies for 18650/21700 batteries since Oct. 1, 2021 . The second step ensures a high-quality wrinkle-free seal on a properly grooved case. SPECIFICATIONS: Driving Force Manual hydraulic pressing up to 5T Pressure Gauge 0-3500 psi (0-250 kg/cm^2) Body Stainless Steel Crimping Dies Six standard die selectable: CR123 /18650 / 21700/ 26650 / 32650 / AA /AAA (please choose from Die Set Option above ) Compliance CE certified Patent 201120464653.7 Application Notes Click here to order the spare cylindrical case You need a Cylinder Grooving Machine  to crimper the cylindrical cell Customized die for other cylindrical cell types is available upon request It is necessary to groove the opening end of the cylindrical case by using the MSK-500 grooving machine before sealing the cap Each type of cylinder cell can only be sealed specifically by a certain model of this equipment. Please select the type of cylinder cell in the Product Options dropbox to check the model number and price for the corresponding crimping die of each cylinder cell type Please check the chart below to order the cylindrical cases. P/N Description (click to view details) Case Dimensions EQ-Lib-CR123 100 pcs CR123 cylindrical case EQ-Lib-18650 100 pcs 18650 cylindrical case EQ-Lib-21700 100 pcs 21700 cell case EQ-Lib-26650 100 pcs 26650 cylindrical case EQ-Lib-32650 60 pcs 32650 cylindrical case EQ-Lib-AA 100 pcs AA cylindrical case Warning Please don't use the hydraulic crimper inside the glove box to avoid oil-leaking. If you have to use it inside the glovebox, please choose compressed driven crimper The compressed gas-driven crimper is available upon request

Driving Force Manual hydraulic pressing up to 5T
Pressure Gauge 0-3500 psi (0-250 kg/cm^2)
Body Stainless Steel
Crimping Dies Six standard die selectable: CR123 /18650 / 21700/ 26650 / 32650 / AA /AAA
(please choose from Die Set Option above )
Compliance
  • CE certified
  • Patent 201120464653.7
Application Notes
Cylinder Cases and Related Components

Click here to order the spare cylindrical case

  • Customized die for other cylindrical cell types is available upon request
  • It is necessary to groove the opening end of the cylindrical case by using the MSK-500 grooving machine before sealing the cap
  • Each type of cylinder cell can only be sealed specifically by a certain model of this equipment. Please select the type of cylinder cell in the Product Options dropbox to check the model number and price for the corresponding crimping die of each cylinder cell type
  • Please check the chart below to order the cylindrical cases.
P/N Description (click to view details)  Case Dimensions
EQ-Lib-CR123 100 pcs CR123 cylindrical case
EQ-Lib-18650 100 pcs 18650 cylindrical case

EQ-Lib-21700

 100 pcs 21700 cell case
EQ-Lib-26650 100 pcs 26650 cylindrical case
EQ-Lib-32650 60 pcs 32650 cylindrical case
EQ-Lib-AA

Warning
  • Please don't use the hydraulic crimper inside the glove box to avoid oil-leaking. If you have to use it inside the glovebox, please choose compressed driven crimper
  • The compressed gas-driven crimper is available upon request
,
