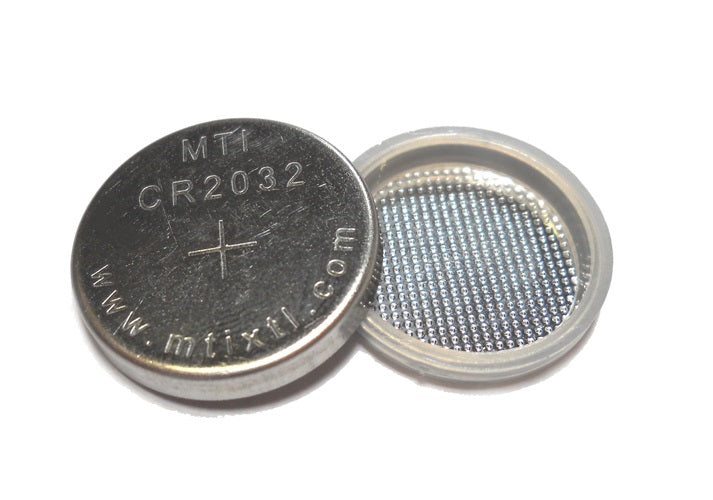

CR2032 Coin Cell Cases (20mm D x 3.2 mm T) with SS304 & SS316 Option - 100 pcs/pack - CR2032CASE

100 pairs of CR2032 button cell cases, made of 304 or 316 stainless steel with sealing o-ring. ( Qty discount )

Specifications

Material

• Casing: SS304 or SS316, please choose from the options dropdown box. Normally SS316 has better anti-corrosion property compared to SS304
• Sealing Gasket: PP

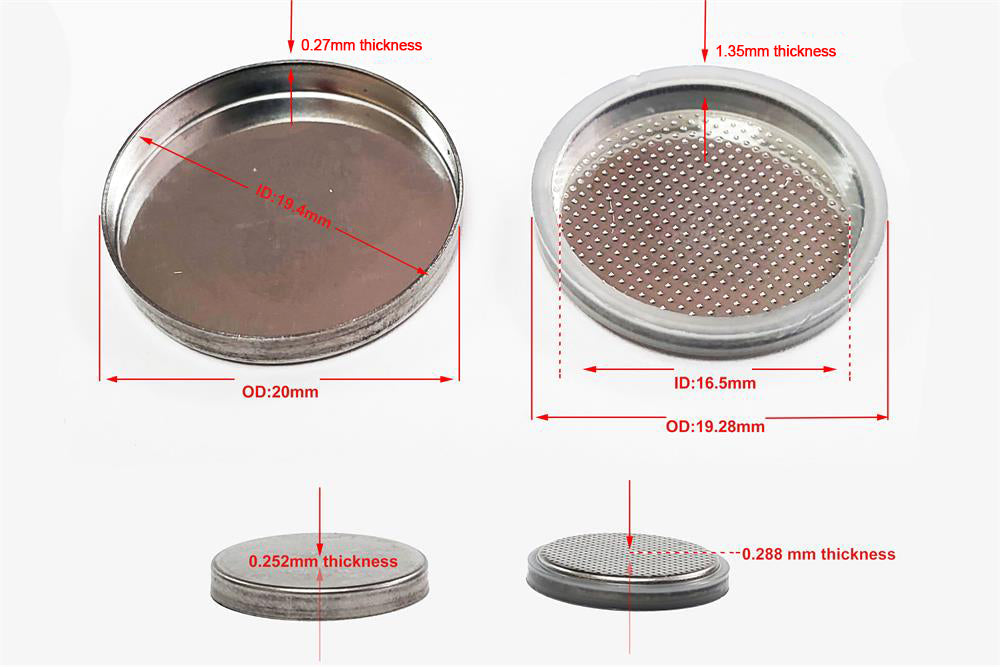

• The thickness of the SS304/316 for both anode and cathode case is 0.25 mm +/- 0.02 mm.

Suggested Crimper

• The best crimper: MSK-PN110-S Compact Gas Driven for consistent result Pic1
• The compact electric crimper MSK-160E for easy operating at Ar gas glove box Pic2
•


  After crimping, the coin cell diameter is going to be 20mm +/- 0.1mm.

Application Note

• After perfectly crimping, the External Height should be around 3.0mm.
• The diameter of the inner ring of the plastic gasket for the coin cell 2032 is around 16.39mm.
• Usually, a case does not need to clean before crimping, but if you do need to clean the case, please put in ethanol for 4-6 hrs, and use Oven to dry serval hours, (please set the oven to 30C, if it has ORING.)

Options

Al-Clad CR2032 case to avoid corrosion when battery >4.5V

Gold-Coated Button Cell Case

Pt Coated Button Cell Case

CR2016 coin cell case for in-situ XRD analysis

Pls click the picture to find other size coin cell
