SKU: cr2032-case-with-two-sides-kapton-windows-5-pairs-pack-cr2032kap2s

Price: RFQ

Description

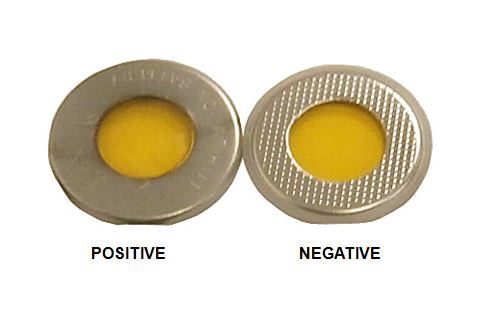

 CR2032KAP2S is special CR2032 coin cell casing with two sides of 10mm Kapton windows to achieve a full penetration of in-situ X-ray or neutron diffraction This design creates the possibility to analysis of battery material phase variations during charging and discharging. 5 pairs of CR2032 casing per package Kapton windows (10mm dia.) in both sides of CR2032 battery casing to ensure a full X-Ray beam penetration. PP (Polypropylene) sealing O-ring. Compatible with MTI's MSK-110 crimper

CR2032KAP2S is special CR2032 coin cell casing with two sides of 10mm Kapton windows to achieve a full penetration of in-situ X-ray or neutron diffraction This design creates the possibility to analysis of battery material phase variations during charging and discharging.
  • 5 pairs of CR2032 casing per package
  • Kapton windows (10mm dia.) in both sides of CR2032 battery casing to ensure a full X-Ray beam penetration.
  • PP (Polypropylene) sealing O-ring.
  • Compatible with MTI's MSK-110 crimper
,
Specifications
Kapton window thickness 0.18mm
Coating Positive side of casing is coated with aluminum
Al coating thickness < 0.01mm
Cell Assembling Structure & Instruction Manual

Application note
  • In order to reduce X-ray photons loss and get high resolution of X-ray signal for battery, please use carbon-based substrate as current collector instead of Al or Cu foil.

  • You may use lab press and dry pressing die below to preparate a electrode pellet instead of using electrode coated Al or Cu foil.
