Specifications

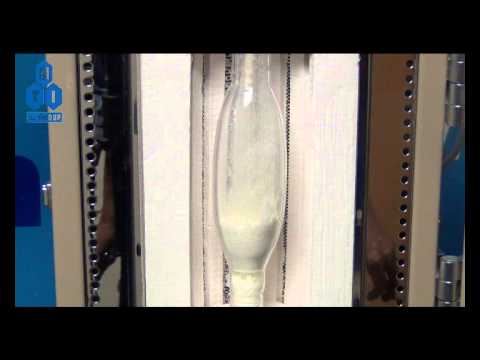

OTF-1200X-FB is a Hi-Pressure Fluidized Bed Pyrolysis Reactor for the research on converting waste plastic into flammable gas.
|
Power
|
2500W
|
|
Voltage
|
AC 220V Single Phase, 50/60 Hz
|
|
Max. Temperature
|
1100oC
|
|
Continuous Temperature
|
1000oC
|
|
Max. Heating Rate
|
<= 20 oC /min
|
|
Tube Size and Materials
|
Ni-Based Super-alloy
|
|
Sealing Flanges
|
- Bottom flange: Regular designed 1'' bottom flange with 1/4'' tube fitting for introducing primary gas
- Top Flange: Special designed 1'' top flange with backstreaming secondary (precursor) gas inlet and exhaust, please click the picture to the left for details
|
|
Options
|
 Powder feeder  Gas mixing and delivery  Cyclone
|
|
Heating Zone Length
|
200mm (single zone)
|
|
Temperature Controller
|
- 30 programmable segments for precise control of heating rate, cooling rate, and dwell time.
- Built-in PID Auto-Tune function with overheating & broken thermocouple protection.
- Over-temperature protection and alarm allow for operation without attendant(s).
- +/- 1 ºC temperature accuracy.
- Eurotherm 3000 precision temperature controller is optional with +/- 0.1ºC accuracy
|
| Heating Elements |
Fe-Cr-Al Alloy doped by Mo
|
|
Shipping Weight & Dimensions
|
- 620 lbs, 52"x41"x72"
- 210 lbs, 47"x40"x42"
- 425 lbs, 47"x40"x62"
|
|
Compliance
|
- CE Certified
- NRTL or CSA certification is available at an extra cost
|
