Description

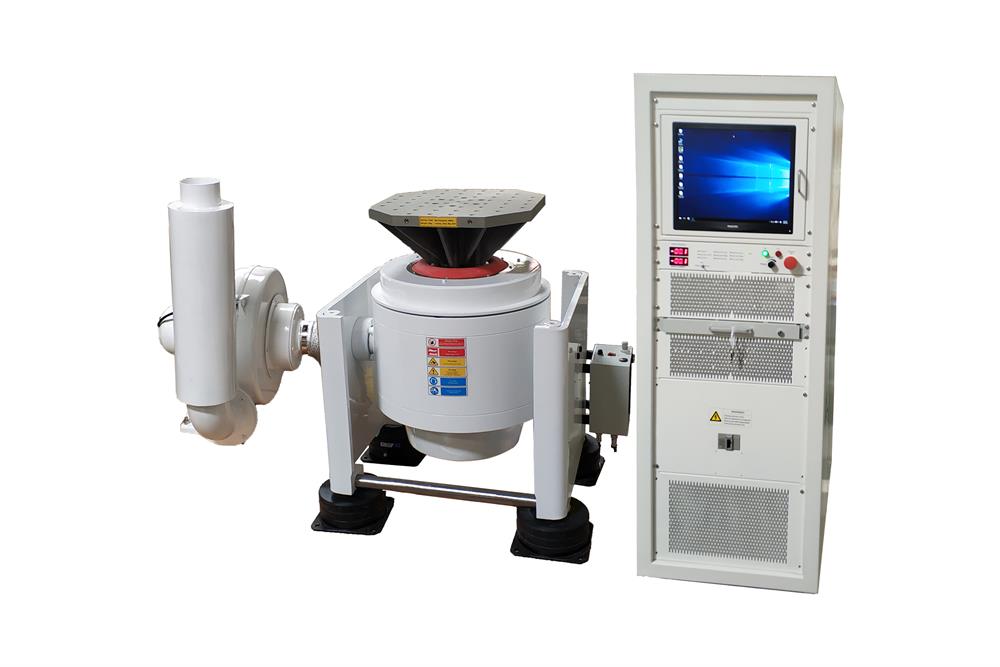

MSK-ES-4 is an updated model from MSK-ES-3. It is a compact computerized Vibration Testing System for Li-Ion battery and battery pack up to 200Hz and Max. 15 kg sample load based on UN38.3 standard (38.3.4.3), which integrates computer and all control units into one box with less stand foot.



Power Requirements
  • 208-230VAC, Three Phase, 50/60Hz
  • 15KW


Vibration Table


Click the icon below to learn more about the vibration unit in details
  • Vibration platform size: 400mm×400mm
  • Vibration table size: 750mm x 560mm x 670mm
  • Sine-wave Exciting force: 300Kg Max--
  • Random-wave force: 300Kg Max--
  • Frequency range: 0 ~ 200Hz
  • Frequency rate (optional with extra cost): varied at the rate of 1Hz/min (UL1642)
  • The frequency of vibration isolation: 2.5Hz
  • Max. Acceleration: 10 G
  • Max. Speed: 1.6m/s
  • Max. excursion: 25 mm (peak to peak) (measured under the no-load condition)
  • amplitude adjustment resolution 0.01mm
  • Moving coil weigh (Mo): 3 kg
  • Moving table weight:(M1): ~ 15 Kg
  • Max. sample Load (include fixture): ~ 20Kg (6g),10Kg (8g), 5Kg (10g)
  • Vibration direction: Perpendicular
  • Total Vibration table weight: 460 Kg
  • Sound intensity of vibration: ~ 60 - 75 dB(A)
Control Unit

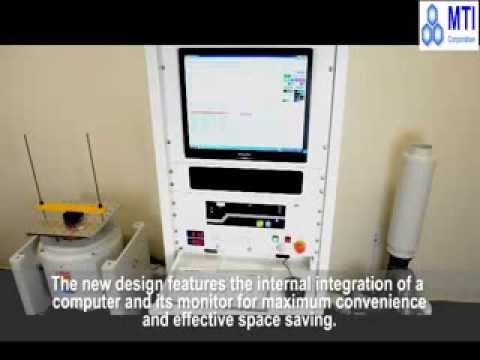

  • The exquisitely designed control tower has a computer and monitoring screen integrated internally for minimal space occupation & ease of use
  • The software comes pre-installed on the computer for immediate operation and offers intuitive features for direct perception. The testing procedure can be customized to multiple step testing procedures with time duration configuration by the user without the program coding experience.
  • Vibration Settings: Shock, Sin-Wave or Radom selectable
  • Programmable Shock Parameters
    • Wave types: Half Sin-Wave, Zigzag, Rectangular, Ladder-Shaped, and etc.
    • Frequency range: DC - 22000Hz
    • Duration time: 0.5 - 3000mS
Venting
  • Venting blower (180W) is included
  • Venting port size: 120 mm diameter
  • Airflow rate: 0.40m^3/ s
  • Venting is required for the complete operation of the system, the forced air cooling keeps the vibration unit cool in order to sustain long operation periods (see diagram below)
