Specifications
 |
 |
 |
| 1. Connect the gas regulator to gas Cylinder. Install a 1/4" tube fitting to the outlet of the gas regulator. | 2. Install another 1/4 tube fittings in the flange. Use a 1/4 stainless steel or PTFE tube (low pressure, 120 psi or below) to connect the gas regulator and flange. NOTE: Make sure the thread type of the 1/4 tube fittings before installation. For most gas regulator in U.S., the 1/4 tube fitting is required to have 1/4 MNPT thread type. For MTI flange system, the 1/4 tube fitting is required to have 1/4 MBSPP thread type. |
3. Finish Installation. |

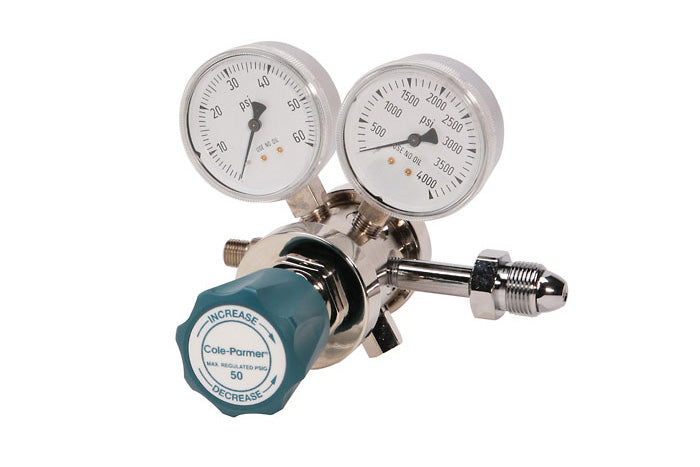

| Please notice that the connector of the Hydrogen Gas Type Regulator is female POL connector. While the inert gas type Regulator is the male connector. |
| Maximum Rated Inlet Pressure | 3,500 PSIG |
| Outlet Pressure Ranges | 0-25, 0-50, 0-100, 0-250 PSIG |
| Flow Capacity - Cv | 0.058 |
| Ambient Operating Temperature | -40°F to +165°F |
| Designed Leak Rate | Bubble-Tight (helium) |
| Weight | 4.4 lbs |
| Ports (4) | 1/4" FNPT |
| Inlet | 1/4" FNPT |
| Outlet | 1/4" MNPT |
| Decay Inlet Characteristic | 0.26/100 psi |
| Cylinder CGA | 580 |
| Material | Brass |
| Inlet Gauge | 0-4000 |
| Flow Capacity (SCFH) | 900 |
| Max Inlet Pressure (PSIG) | 3500 |
| Gas | Argon,Helium,Nitrogen |
| Max Outlet Pressure (PSIG) | 100 |
| Manual |  |
| Option Flashback Arrestor to Cylinder Regulator. |
 |
|
Option Hydrogen detector |
 |
