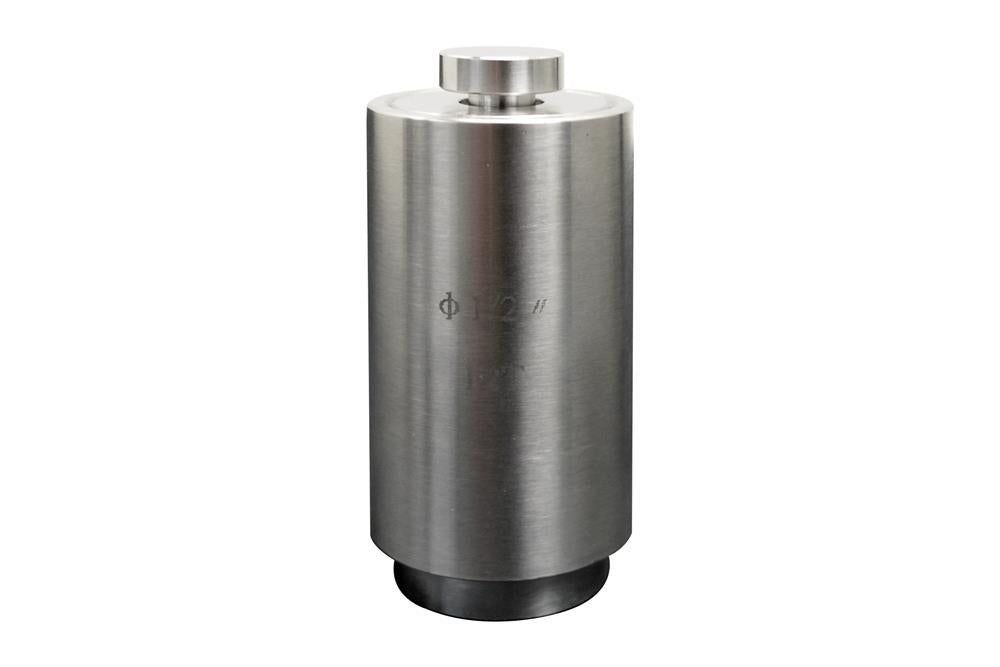

10.75 mm ID Pressing Die w/ BN or PEEK Liner for Pressing with Electric Field - BNL-12D
  • 10.75 mm ID Pressing Die w/ BN or PEEK Liner for Pressing with Electric Field - BNL-12D
  • 10.75 mm ID Pressing Die w/ BN or PEEK Liner for Pressing with Electric Field - BNL-12D
  • 10.75 mm ID Pressing Die w/ BN or PEEK Liner for Pressing with Electric Field - BNL-12D
10.75 mm ID Pressing Die w/ BN or PEEK Liner for Pressing with Electric Field - BNL-12D

10.75 mm ID Pressing Die w/ BN or PEEK Liner for Pressing with Electric Field - BNL-12D

SKU: bnl-12d

Price: RFQ

Specifications

 BNL-12D is a 10.75 mm ID pressing die with BN or Peek liner for electric insulation, which allows applying the electric field during pressing. It is a good tool for  the Cold Sintering Process (CSP) of ceramic, Polymer, or ceramic-polymer composite materials for the applications such as microwave dielectric materials, solid-state electrolyte, and semiconductors; Please click here to download SDS Working Temperature Cold Sintering Process with the high electrical field. BN: 250oC Peek: 180oC Max Load 9 Metric Ton (at room temperature), or 980 MPa Note: BN liner is one-time use and not rated for strength. Die and Punching Rod In order to use the BN liner, you must use the special die and pushing rod as the picture below ( please choose from the product options bar) Attention & Warnings For the cold sintering press with the high electrical field experiment, the BN liner could be a one-time use. It is strongly recommended to get the spare liners . Max. the working temperature in CSP with the high electrical field is 450°C The BN liners shall be stored in a dry environment inside a sealed container. Never wash the liner with water. Use fine sandpaper or cloth to remove any dirt or residue. Not suitable for use with Sb2O3, chromium oxide, molybdenum trioxide, arsenic trioxide, titanium carbide, high lead glass glaze, boron phosphate, potassium phosphate, chlorine

Working Temperature
  • Cold Sintering Process with the high electrical field.
  • BN: 250oC
  • Peek: 180oC
Max Load
  • 9 Metric Ton (at room temperature), or 980 MPa
  • Note: BN liner is one-time use and not rated for strength.

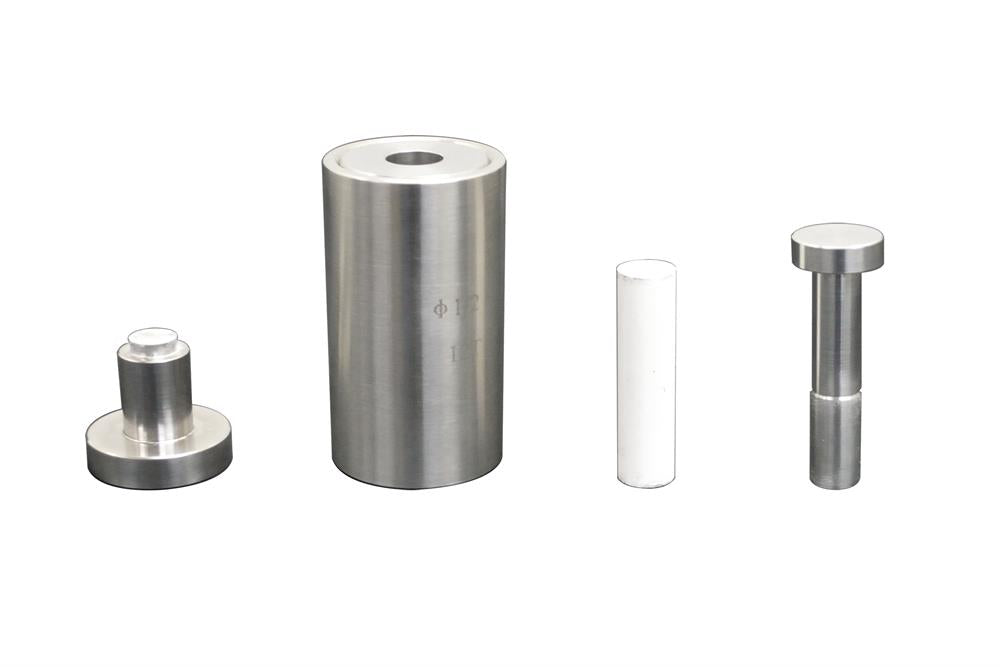

Die and Punching Rod
  • In order to use the BN liner, you must use the special die and pushing rod as the picture below ( please choose from the product options bar)



Attention & Warnings

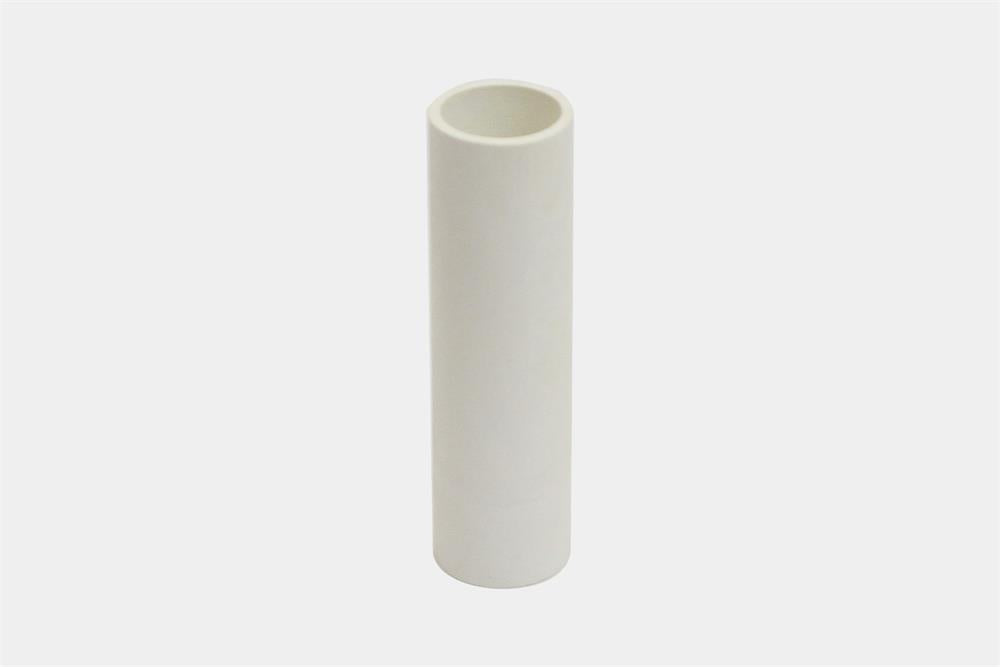

  • For the cold sintering press with the high electrical field experiment, the BN liner could be a one-time use. It is strongly recommended to get the spare liners.
  • Max. the working temperature in CSP with the high electrical field is 450°C
  • The BN liners shall be stored in a dry environment inside a sealed container.
  • Never wash the liner with water. Use fine sandpaper or cloth to remove any dirt or residue.
  • Not suitable for use with Sb2O3, chromium oxide, molybdenum trioxide, arsenic trioxide, titanium carbide, high lead glass glaze, boron phosphate, potassium phosphate, chlorine
