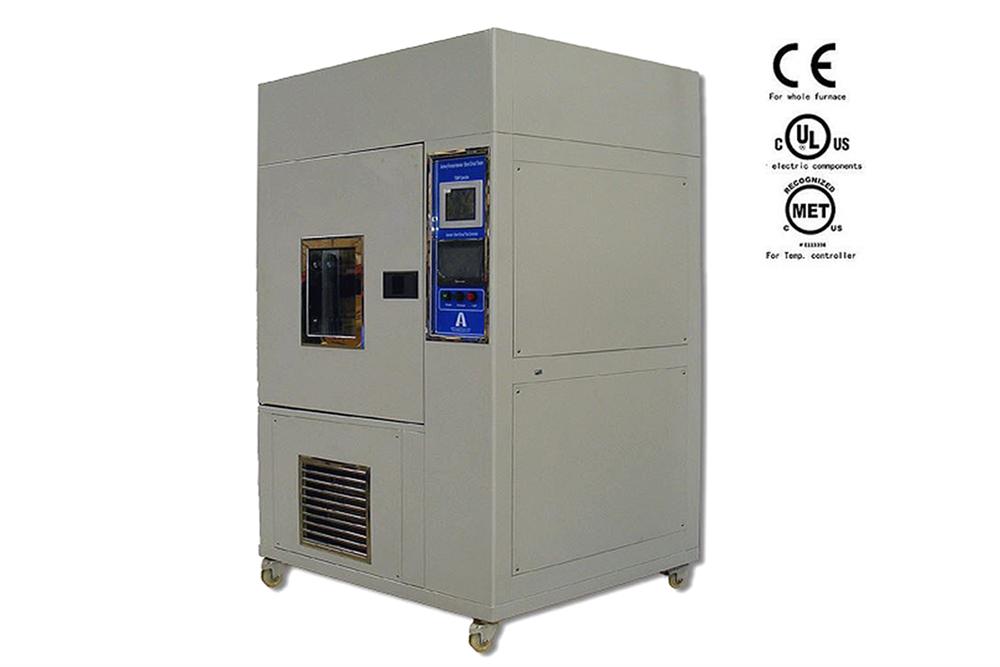

Battery Forced Internal-Short Circuit (ISC) Tester for IEC 62133.8.3.9, UL/TUV Ready - MSK-ISC

Features

• User-Friendly LCD touch screen panel
• 17 segments adjustable backlight
• RS-485 communication port
• 9 programable P.I.D temperature control segments
• EEPROM memory storage
• Built-in humidity sensor (±1%RH)

Outer Structure

• Made of Cold Rolled Steel

Chamber Structure

• Double-layer steel chamber for anti-explosion
• Inside chamber: made of 1 mm thickness cold rolled SS304 with tensile strength > 500 Mpa
• Outside casing: made of 3 mm thickness annealed A3 steel with Tensile strength > 400 Mpa
•
• Dimension: 700×600×700 mm (W×D×H)

Working Temperature

• 0 +60

Temperature Fluctuation

• ±0.5

Temperature Uniformity

• ±2.0

Min. Temperature

• 0

Heating Rate

• 3/min

Cooling Rate

• 0.71/min

Chamber Dimensions

• W600 X H750 X D500 MM

Features

• Panasonic AC Driving System
• Pulse Command Control
• High precision forces sensor

• RS232 communication port
• Testing result can be saved as EXCEL format

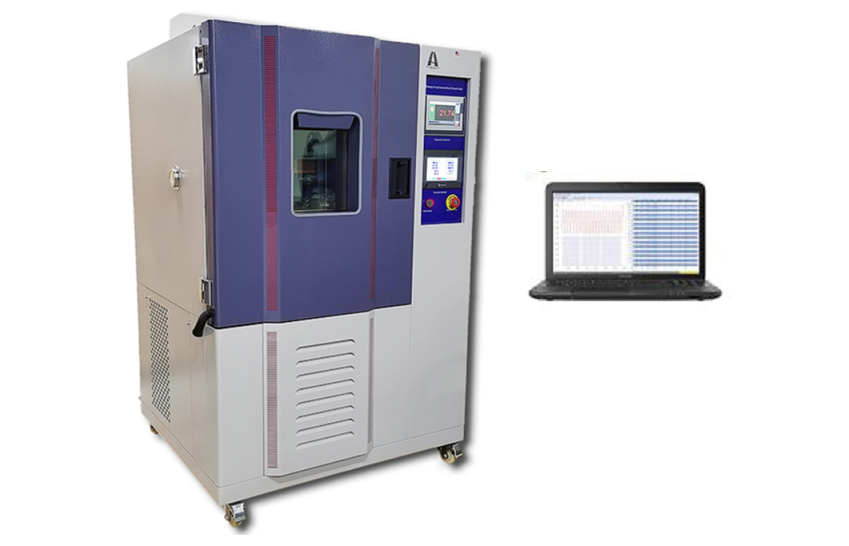

• One brand new laptop with installed software are included for immediate use ( updated from April 13, 2015)

Power supply

• 208-240VAC, single-phase, 50- 60Hz
  5000W

Max. Loading

• 1 N~1000N

Force Accuracy

• ≤0.5F.S

Force Magnification

• 7 Segments Automatically

Movement Accuracy

• ≤0.5F.S

Speed Range

• 0.1 ~ 5mm/s

Effective Travel Distance

• 150mm (without the clamp)

Space for Crushing Test

• 200mm W X 200mm L (without the clamp)

Voltage Collecting Range

•  0-20V

Voltage Collecting Frequency

• 1000Hz

Voltage Resolution Ratio

• 1mV

• CE Certified
• All Electric parts are NRTL Certified and ready to pass UL/MET/ETL/CSA/TUV test at extra cost

• Disassembling the battery and placing the Nickel plate inside the battery must be operated under a glove box with humidity < 3.1 % RH or Dew Point Temperature < -25°C. Never open charged Li-Ion battery in air to avoid firing.

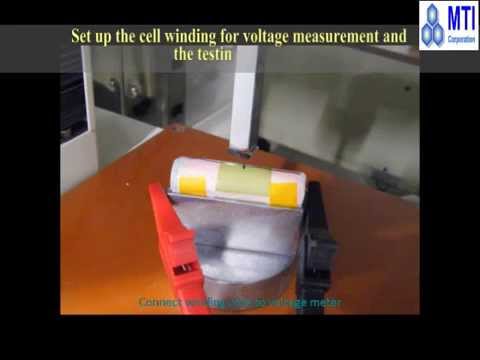

• L shape Nickel plate for the internal short circuit is available upon request (Pls click pic. 1-3 below to see where Ni-plate shall be placed).
• You may use our cylindrical battery cutter to disassemble charged cylindrical cell under a glove box ( click pic 4 bottom to order)
