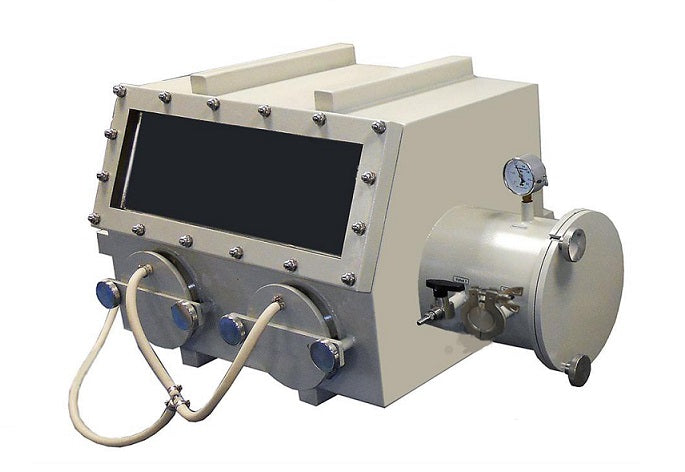

Compact Stainless Steel Vacuum Glove Box (22"x17"x16") with Vacuum Flange & Gauge - VGB-1
  • Compact Stainless Steel Vacuum Glove Box (22"x17"x16") with Vacuum Flange & Gauge - VGB-1
Compact Stainless Steel Vacuum Glove Box (22"x17"x16") with Vacuum Flange & Gauge - VGB-1

Compact Stainless Steel Vacuum Glove Box (22"x17"x16") with Vacuum Flange & Gauge - VGB-1

SKU: vgb-1

Price: RFQ

Description

 VGB-1 is a small size stainless steel glove box with Airlock Chamber, Gauges, and vacuum Flanges, which allows the glove box to vacuum the chamber to remove moisture and oxygen without expensive inert gas purging, It is an ideal tool for material and chemical researchers to process air sensitive materials and solutions. SPECIFICATIONS: Glove Box Chamber Case Material: Made of 11 gauge (3mm thickness) 304 stainless steel sheet with the support frame, which provides the heavy-duty structure for vacuum Dimensions: 555mm(L) x 444mm(W) x 414mm(H) Max. Absolute Pressure for Gloves: 810 Torr (1.06 atm) Min. Absolute Pressure for Gloves: 710 torr (0.94 atm) Max. Vacuum Level: 1.59E-2 Torr ~50 Torr after 5 min pumping ~6E-2 Torr after 4 hr pumping. Note : Stainless Steel case may deform at a higher vacuum level Leakage Rate in GloveBox: < 6 Torr/hour Overall Dimension Drawing Section View Enlarging Air-lock Chamber Dimensions: 200mm(ID) x 232mm(L) Vacuum gauge and valves Two vacuum flanges are included for the glove box to achieve vacuum to remove moisture and oxygen without expensive inert gas purging. Do not operate under vacuum. Vacuum is used for purging the chamber before the operation. One KF-25 connector is installed on the back for connecting the humidity monitor or other testing equipment. On the Glove Box Chamber Dimension On the Air-lock Chamber Power Extension One extension socket (Max power 1500W) is installed in the glove box main chamber. Power Input Socket External Power Cord Internal Power Extension Note: 110V power cord was included for immediate use. ( For 208~240V power supply, no plug will be included ) Gloves One pair of Latex Gloves are included Vacuum pump and Pressure Controller (Optional) The vacuum pump and fittings are not included. (Please order separately under Personalization) Not e: A KF25 Vacuum Right-Angle Valve is necessary fo r connecting to a vacuum pump, please order it accordingly. In order to keep constant pressure of inert gas inside the chamber, you need a pressure controller by click Pic below. Pressure controller Product Dimensions 1186mm(L) x 480mm(W) x 490mm(H) Warranty One year limited warranty with lifetime support Rusting and damage due to improper storage condition or maintenance is not covered by warranty Gloves are consumable items and are not covered under warranty Operation Video Application Notes Corrosive liquid (such as LiPF6 electrolyte) must be remain sealed in a container inside the glove box. Otherwise, liquid-vapor may condense and corrode the steel chamber and purification pipeline. By closing the vacuum flange, the glove box can be vacuumed by a mechanical pump up to 0.5 torrs before filling inert gas. The moisture can be reduced below 50 ppm by vacuuming the glove box After refilling the glove box with high purity Argon gas (5N purity), the glove box moisture can be kept below 180 ppm and oxygen below 200 ppm. In this way, you can save 1-2 tank of inert gas from purging at each operation Please call or email us to get the price and lead time for multi-pins feedthrough on the glove box if you need to measure the sample inside the chamber. 16 pins electrical feed through outside the glove box (4 pins per one feed through) 16 pins electrical feed through inside the glove box (4 pins per one feed through) You may choose the device below to monitor gas humidity and oxygen content inside the glove box. Digital Humidity & Temperature Monitor Precision humidity analyzer Trace Oxygen Analyzer (0.01 -3000PPM ) with KF40 Connector Humidity & Oxygen Purifying system < 1 ppm) Warning: This glove box is not suitable for Li-ion battery research because the humidity cannot be lowered to 10ppm. Please order VGB-5 , VGB-6 , or VGB-7 or purification system for Li-ion battery research Shipping Size 48"x40"x32" Shipping Weight 320 lbs


Glove Box Chamber




  • Case Material: Made of 11 gauge (3mm thickness) 304 stainless steel sheet with the support frame, which provides the heavy-duty structure for vacuum
  • Dimensions: 555mm(L) x 444mm(W) x 414mm(H)
  • Max. Absolute Pressure for Gloves: 810 Torr (1.06 atm)
  • Min. Absolute Pressure for Gloves: 710 torr (0.94 atm)
  • Max. Vacuum Level: 1.59E-2 Torr
    • ~50 Torr after 5 min pumping
    • ~6E-2 Torr after 4 hr pumping.
    • Note: Stainless Steel case may deform at a higher vacuum level
    • Leakage Rate in GloveBox: < 6 Torr/hour
Air-lock Chamber
  • Dimensions: 200mm(ID) x 232mm(L)
Vacuum gauge and valves
  • Two vacuum flanges are included for the glove box to achieve vacuum to remove moisture and oxygen without expensive inert gas purging.
    • Do not operate under vacuum. Vacuum is used for purging the chamber before the operation.
  • One KF-25 connector is installed on the back for connecting the humidity monitor or other testing equipment.
On the Glove Box Chamber Dimension On the Air-lock Chamber
Power Extension
  • One extension socket (Max power 1500W) is installed in the glove box main chamber.
  • Power Input Socket  External Power Cord Internal Power Extension
  • Note: 110V power cord was included for immediate use. (For 208~240V power supply, no plug will be included)
Gloves
Vacuum pump and Pressure Controller
(Optional)
  • The vacuum pump and fittings are not included. (Please order separately under Personalization)
  • Note: A KF25 Vacuum Right-Angle Valve is necessary for connecting to a vacuum pump, please order it accordingly.
  • In order to keep constant pressure of inert gas inside the chamber, you need a pressure controller by click Pic below.
        Pressure controller
Product Dimensions 1186mm(L) x 480mm(W) x 490mm(H)
Warranty
  • One year limited warranty with lifetime support
  • Rusting and damage due to improper storage condition or maintenance is not covered by warranty
  • Gloves are consumable items and are not covered under warranty
Operation Video
Application Notes
  • Corrosive liquid (such as LiPF6 electrolyte) must be remain sealed in a container inside the glove box. Otherwise, liquid-vapor may condense and corrode the steel chamber and purification pipeline.
  • By closing the vacuum flange, the glove box can be vacuumed by a mechanical pump up to 0.5 torrs before filling inert gas. The moisture can be reduced below 50 ppm by vacuuming the glove box
  • After refilling the glove box with high purity Argon gas (5N purity), the glove box moisture can be kept below 180 ppm and oxygen below 200 ppm. In this way, you can save 1-2 tank of inert gas from purging at each operation
  • Please call or email us to get the price and lead time for multi-pins feedthrough on the glove box if you need to measure the sample inside the chamber.
  • 16 pins electrical feed through outside the glove box
    (4 pins per one feed through)
    16 pins electrical feed through inside the glove box
    (4 pins per one feed through)

Shipping Size 48"x40"x32"
Shipping Weight 320 lbs
,
Power Input Socket  External Power Cord Internal Power Extension
,
16 pins electrical feed through outside the glove box
(4 pins per one feed through)
16 pins electrical feed through inside the glove box
(4 pins per one feed through)

,
Precision humidity analyzer  Trace Oxygen Analyzer (0.01 -3000PPM ) with KF40 Connector Humidity & Oxygen Purifying system < 1 ppm)
