Specifications
| Model | KJT-2V-HN14 (for MTI VGB-1 or VGB-3) | KJT-2V-K25 (for MTI VGB-4A) |
| Working Voltage | 110V AC ~ 220V AC | 110V AC ~220V AC |

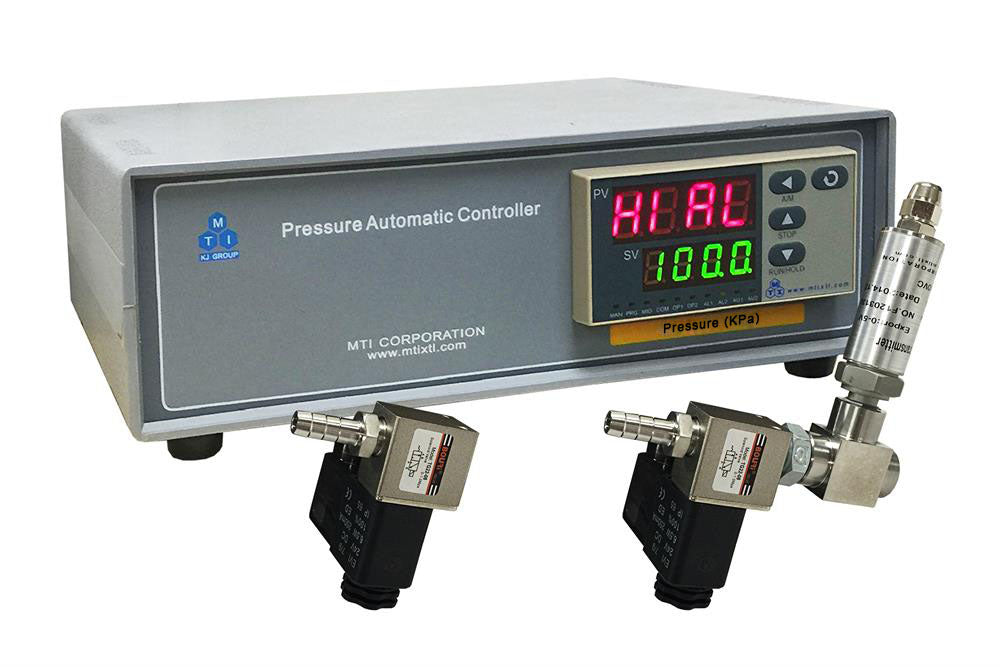

Package Includes (KJT-2V-HN14 Structure)  (KJT-2V-K25 Structure) |
|
|
|
Installation Diagram |
  Note: The solenoid valve sets are designed to replace the on/off valve on the glovebox |
  Note: The solenoid valve sets are designed to be installed on the KF-25 port on the glovebox |
Operation Procedures
|
|
|
|
Back View of Controller |
 |
|
|
Dimensions of Controller |
 10" X 8" X 3.5" |
|
| Operation Video & Manual |
|
|
| Warranty | One year limited with lifetime support | |
|
Optional |
|
|
| Item | KJT-2V-HN14 | Qty | KJT-2V-K25 | Qty | |
| 1 | Pressure controller | 1 | Pressure controller | 1 | |
| 2 | Pressure transducer | 1 | Pressure transducer | 1 | |
| 3 | Solenoid valve | 2 | Solenoid valve | 2 | |
| 4 | 1/4"BSPP to 1/4" BSPP fittings - EQ-FIT-14M-14M | 3 |
1/4"BSPP to 1/4" BSPP fittings - EQ-FIT-14M-14M |
1 | |
| 5 | 1/4 bspp & M14 T fitting - EQ-TP-14BSPP | 1 |
1/4 bspp & M14 T fitting - EQ-TP-14BSPP |
1 | |
| 6 | 3/8" barbed fittings - EQ-Fit-Barbed8.3 | 2 | 3/8" barbed fittings - EQ-Fit-Barbed8.3 | 2 | |
| 7 | 110V power cable and plug - EQ-PLUG-13-110 | 1 | 110V power cable and plug - EQ-PLUG-13-110 | 1 | |
| 8 | PTFE o-rings - EQ-ORing-PTFE11 | 3 | PTFE o-rings - EQ-ORing-PTFE11 | 3 | |
| 9 | KF25 to 1/4"BSPP fittings - EQ-BSPP-KF25-S | 2 |
