Three-Electrode Split Test Cell for R&D Battery - 15 mm Diameter Cell - 3ESTC
  • Three-Electrode Split Test Cell for R&D Battery - 15 mm Diameter Cell - 3ESTC
  • Three-Electrode Split Test Cell for R&D Battery - 15 mm Diameter Cell - 3ESTC
  • Three-Electrode Split Test Cell for R&D Battery - 15 mm Diameter Cell - 3ESTC
Three-Electrode Split Test Cell for R&D Battery - 15 mm Diameter Cell - 3ESTC

Three-Electrode Split Test Cell for R&D Battery - 15 mm Diameter Cell - 3ESTC

SKU: 3estc

Price: RFQ

Specifications

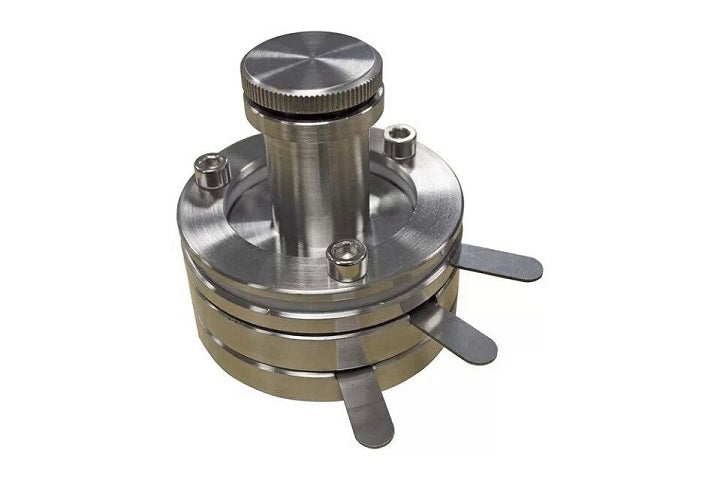

 The EQ-3ESTC split-able test cell is designed for R&D of rechargeable battery materials by testing three electrodes. It is designed to test various electrodes easily and quickly by providing the user with a structure to simulate assembled coin cells without the need to crimp actual coin cell cases. Two sides of the test cell connect to both electrode (the anode and cathode), with the middle being connected to the reference electrode which can be used for monitoring voltage variations of the two electrodes. This test cell can accept 15 mm diameter electrodes and 24mm separators. Note: Customized (Au coated) test cells are non-returnable and non-exchangeable. Reference: Development and Use of a Lithium-Metal Reference Electrode in Aging Studies of Lithium-Ion Batteries SPECIFICATIONS Item Number EQ-3ESTC-Al EQ-3ESTC15 EQ-3ESTC15P Structure Aluminum Alloy: LY12 (dedicated to using at high voltage > 4.5V) Full stainless steel SS304 SS304 with Digital Pressure Gauge Features This is a three-electrode with dimension of cathode/anode  and reference ring as the follow: Cathode disk:  15 mm Dia. or less Anode disk:    15 mm Dia. or less Li Reference ring:   OD 26 mm x ID 19mm. Air-tight sealed by electrolyte corrosive-proof O-rings is included Electrolyte corrosive-proof PTFE Guide Sleeve capable of withstanding up to 250 ºC is included. PTFE sleeves as consumables can be purchased from EQ-3ESTC-PS The adjustable spring tension on top to accept various electrode thicknesses is included Easy to separate after testing. Small enough to be put into and taken out from a glove box. Additional Features N/A Needle valve w/ 1/4" brass fitting. Detailed Illustrations of the Cell Installation and Operation Notices Pic.1 Pic.2 Pic.3 Pic.4 Max. Working Temperature 200 ºC Optional An option MSK-T- 13 disc cutter is needed to cut all electrode disc, including a ring-shaped reference electrode (26mm OD x 19 mm ID, usually Li metal). Please click on the left picture below to order. For strong corrosive  electrolyte, you may choose gold coating inside the cell (choose from personalization) Please click here to order your own gold plating kit. Warranty One year limited manufacturer warranty with lifetime support Rusted and damaged parts due to improper storage condition or maintenance are not covered by warranty Demo Video (Old video) (The latest video) Note: The reference electrode O-ring, separator films, electrodes, electrolyte and etc. shown in the video are NOT included.

Item Number EQ-3ESTC-Al EQ-3ESTC15 EQ-3ESTC15P
Structure Aluminum Alloy: LY12 (dedicated to using at high voltage > 4.5V) Full stainless steel SS304

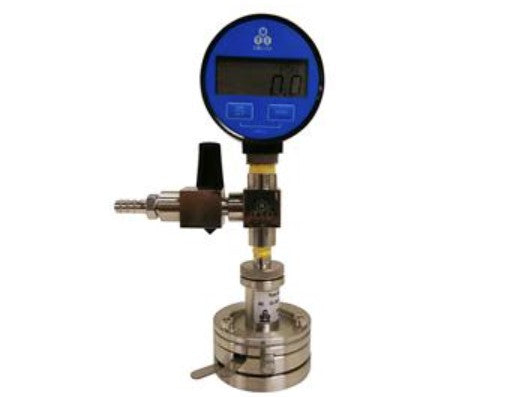

 		SS304 with Digital Pressure Gauge
Features
  • This is a three-electrode with dimension of cathode/anode  and reference ring as the follow:
    • Cathode disk:  15 mm Dia. or less
    • Anode disk:    15 mm Dia. or less
    • Li Reference ring:   OD 26 mm x ID 19mm.
  • Air-tight sealed by electrolyte corrosive-proof  O-rings is included
  • Electrolyte corrosive-proof PTFE Guide Sleeve capable of withstanding up to 250 ºC is included.
  • PTFE sleeves as consumables can be purchased from EQ-3ESTC-PS
  • The adjustable spring tension on top to accept various electrode thicknesses is included
  • Easy to separate after testing.
  • Small enough to be put into and taken out from a glove box.
Additional Features
  • N/A
  • Needle valve w/ 1/4" brass fitting.
Detailed Illustrations of the Cell


Installation and Operation Notices Pic.1    Pic.2   Pic.3   Pic.4
Max. Working Temperature
  • 200 ºC
Optional
  • An option MSK-T-13 disc cutter is needed to cut all electrode disc, including a ring-shaped reference electrode (26mm OD x 19 mm ID, usually Li metal). Please click on the left picture below to order.

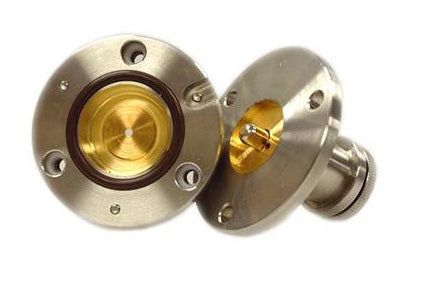

  • For strong corrosive  electrolyte, you may choose gold coating inside the cell (choose from personalization)
  • Please click here to order your own gold plating kit.


Warranty
  • One year limited manufacturer warranty with lifetime support
  • Rusted and damaged parts due to improper storage condition or maintenance are not covered by warranty
Demo Video
 (Old video)
(The latest video)

Note: The reference electrode O-ring, separator films, electrodes, electrolyte and etc. shown in the video are NOT included.
