Description

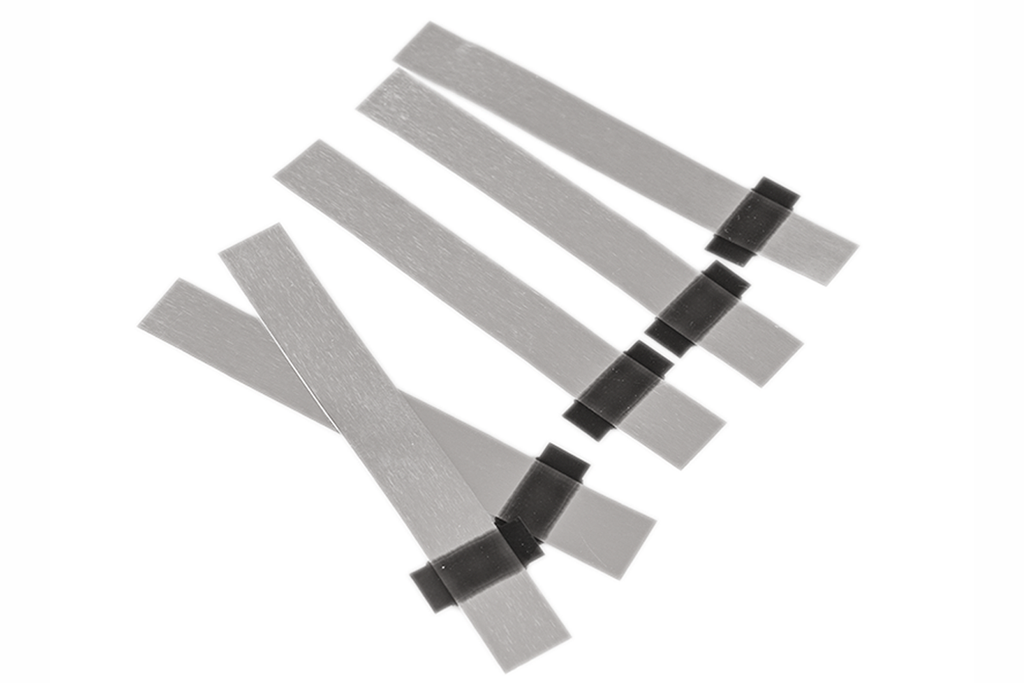

15mm Width Aluminum Tab with Adhesive Polymer Tap as Positive Terminal for Pouch Cell, 50pcs/Box
- Material: Aluminum 99.99%
- Dimension Detail:
- A: 44 ±0.5mm
- B: 8 ±0.25 mm
- C: 8 ±0.5 mm
- D: 15 ±0.01 mm
- E: 4 ±0.25 mm
- Thickness (T1): 0.35 ±0.03 mm
- Thickness(T2): 0.15 ±0.1 mm
- Application: Connect to cathode current collector as polymer battery-positive terminal
- Net Weight: 0.39 ±0.1g /pcs
- Gross Weight: 22.55 ±0.2 g (Tabs with Box)
- Suggested Sealing Method (parameter below may vary from case to case):
- Soft-type heat-sealing blade (Blade with rubber, see MSK-140)
- 180-200°C for the upper blade
- 160-180°C for lower blade
- 40PSI (0.3Mpa)
- 3 seconds heating time
-
Adhesive Polymer Tape is attached to the tab for immediate hot sealing

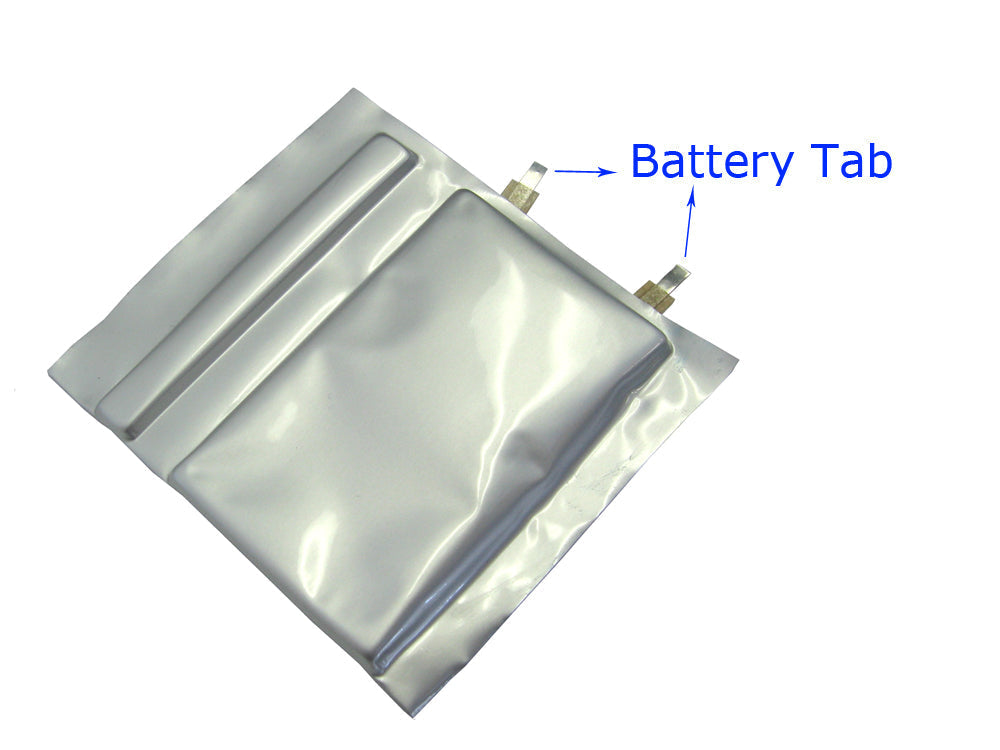

- Click the picture below to see polymer battery with tab:
