150C Max. Larger Capacity (360L) Vacuum Drying Oven with Tri-level Shelf Heating Modules - DZF-3120

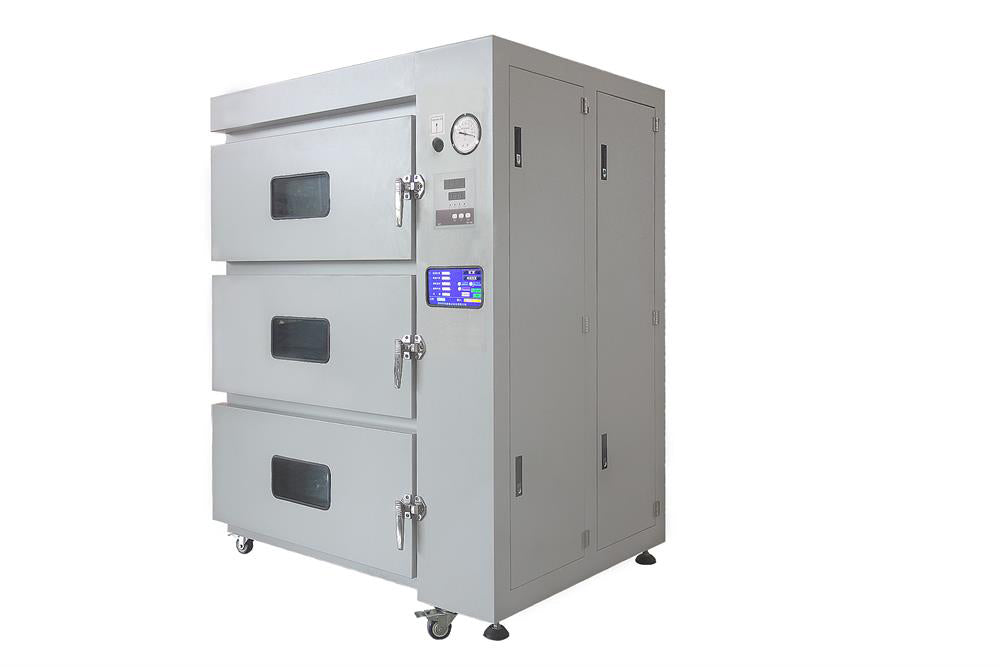

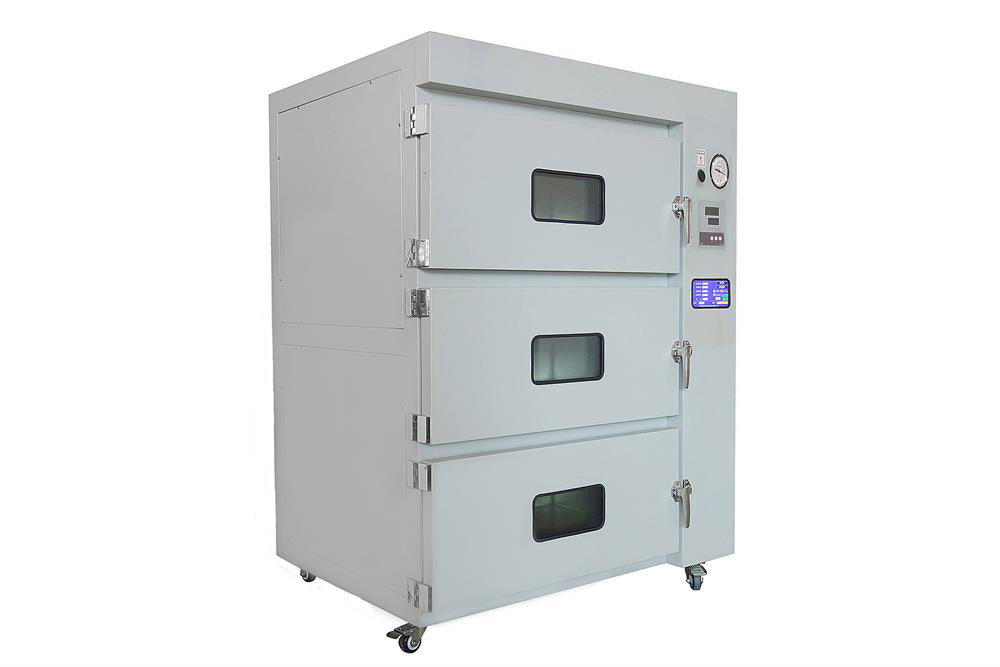

DZF-3120 is a floor stand vacuum drying/degassing/bake-out oven with large capacity (360 liters). It is manufactured with carefully selected UL/CSA/MET electrical components ( >24V DC/AC) which ensure the outstanding system performance and quality. ADVANCED FEATURES: Tri-level individual shelf heating modules provide ideal temperature uniformity, heat-up efficiency, and spacing for vacuum drying, degassing and bake-out applications. PLC touch screen control enables automatic cycling conditions such as vacuuming, backfill with an inert gas, heating to the set temp., dwell, timing and pressure control. Local temperature measuring for each heated shelf. The actual temperature of each shelf can be seen separately on the temperature controller.

SPECIFICATIONS:

Structure	Total capacity: 360 liters (120 liters per level) Inner Chamber size: W800mm x D500mm x H300mm per level A good vacuum seal is achieved by silicone door gasket and positive latch door Three observation windows (12mm thick temper glass), one for each level  High-quality glass wool insulation prevents heat loss and maintains a relatively low surface temp. < 40°C during the work Interior material: Stainless Steel 304 (3mm thick) Exterior material: Cold rolled steel plate (1.5mm thick)
Working Voltage	Three Phase AC 208VAC (Three Phase AC 380V is available upon request)
Power Consumption	18KW
Heating Rates	RT-80°C, less than 20 minutes (unloaded)
Thermocouple	K type
Working Temperature	RT ~150°C
Temperature Control	PID precise temperature controls with built-in over-temperature protection Temperature uniformity: +/-5°C @ 100°C Temperature Stability: +/-1°C of the setpoint
Vacuum Pump (optional)	Vacuum pump is not included, please click the highlighted link in below to order separately: 240 L/m Heavy Duty Double Stage Rotary Vane Vacuum Pump with Exhaust Filter - EQ-YPT-550-LD
Gas Inlet/Vacuum Port	Features 1/4" tube fitting for chamber purging with inert gas Vacuum Port: KF-25
Certification	CE Certificate with UL/CSA certified components (>24VAC/DC) UL certification for the entire system (UL 61010) is available upon request. Additional certification fee will be applied.
Application Notes	Such an oven is an excellent tool for the larger volume of battery electrode drying. MTI offers cathode/anode materials for battery research, please click the picture in below to order:
