1400 °C Max. Microwave Heated SPS to 100 MPa - WE-SPS-1400

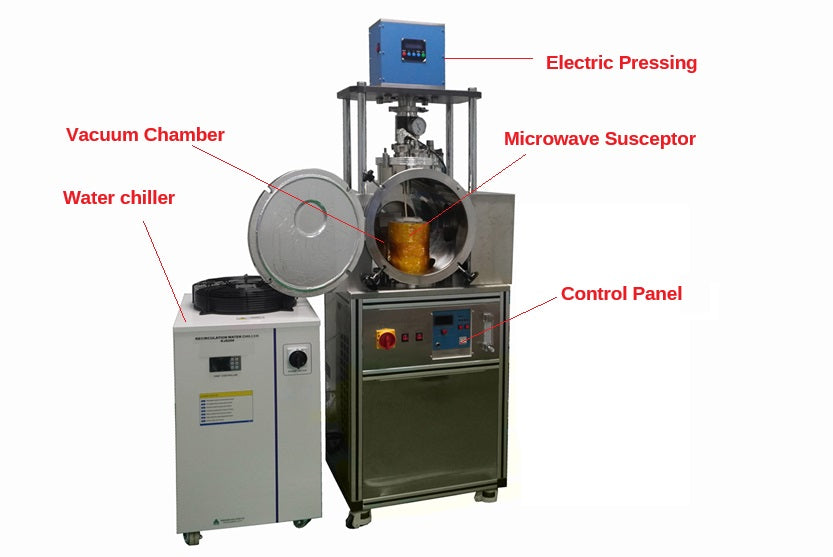

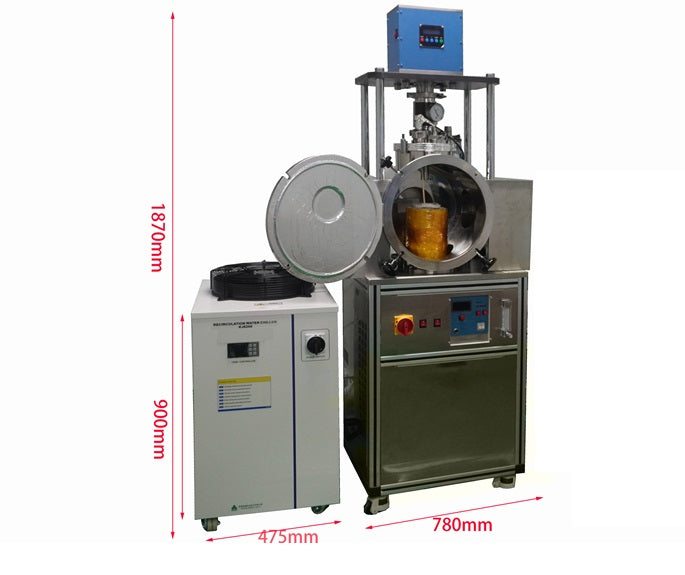

WE-SPS-1400 is a microwave-heated SPS furnace with up to 1400 °C and 100 MPa Pressure. It is designed to press a 10 - 12.7 mm diameter pellet with a maximum. heating speed of 100oC/ minute.  It is a new tool for pressing ceramic and metallic materials under inert gases and vacuum condition.

SPECIFICATIONS:

Furnace Power	208 - 240 VAC, 50/60Hz, single phase Water cooling magnet with 2.45 GHz ±25 MHz Microwave power:  2500 kW

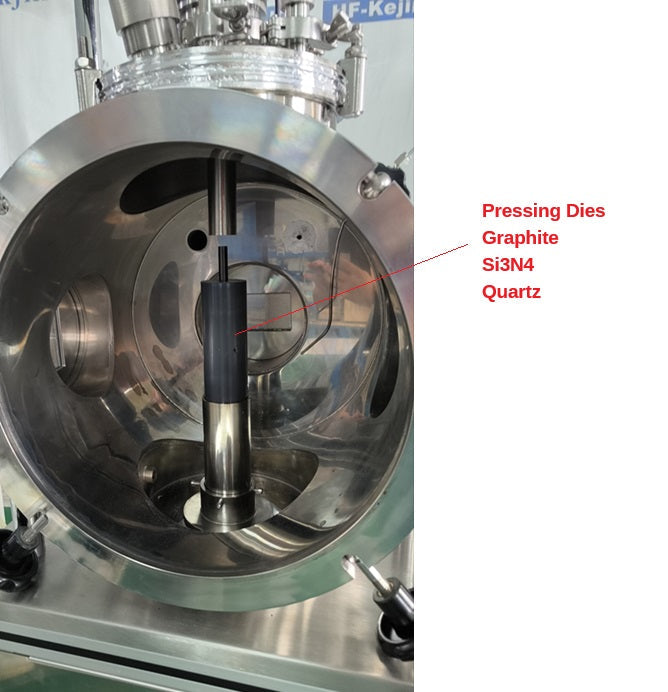

Pressure & Pressing Die	Precision servo motor to apply load to pressing die up to 2000 Kgf PID control pressure to provide constant pressure with +/- 0.5 Kg accuracy One Si3N4 die with an ID of 12.75 mm is included.   Max.. pressure of graphite die: 100 MPa Graphite and Quartz die is available upon request
Vacuum Chamber	The vacuum chamber is made of stainless steel Vacuum Chamber: Ø315 mm × 315 mm H (inner dimension) One Ø120 mm quartz observation window.  One KF25 and one KF40 vacuum port are built at the back of the chamber Max. Vacuum level: 10-5 torr Max.. positive pressure: 0.5 bar The vacuum pump is available upon request

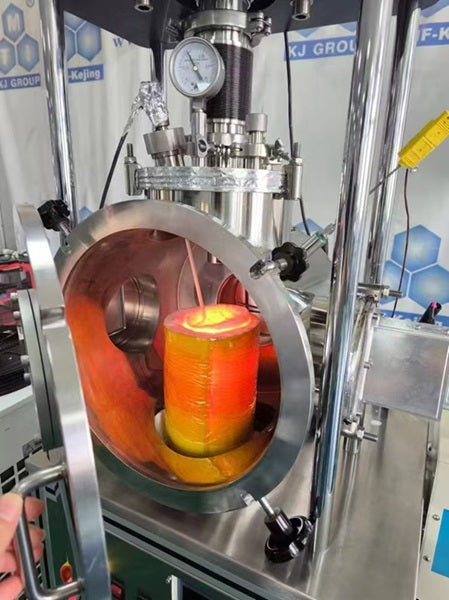

Heater	SiC foam is  used as a heater Under 1 - 10 torr with Ar gas, plasma will form to enhance sintering
Temperature Control	SCR temperature controller S-type thermal couple  Max.. working temperature: 1400 °C Max. Heating Rate:  100 °C/ minute 30-segment programmable temperature controller with +/- 2°C accuracy Touch screen panel to control both temperature and vacuum level, and atmospheric pressure RS-485 port and software are included for PC operation and recording temperature and pressure profile
Water Chiller	Digital Temperature Controlled Recirculating Water Chiller with 16L/min Flow, 6K BTU/hr -KJ5300 is included
Optional:
Compliance	CE Certified NRTL or CSA certification is available at extra cost.
