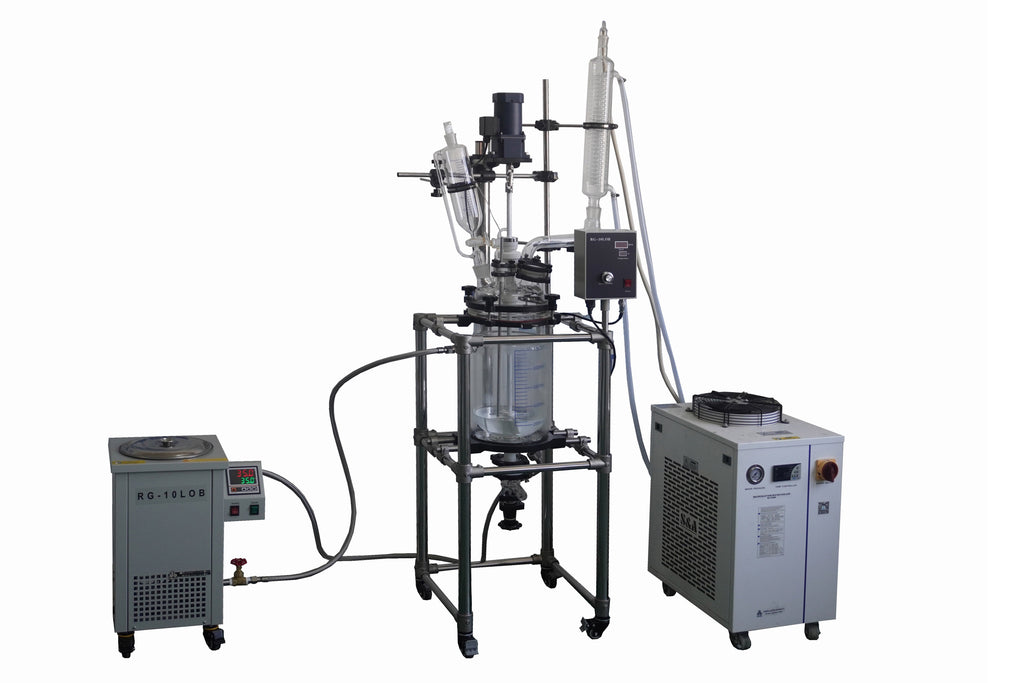

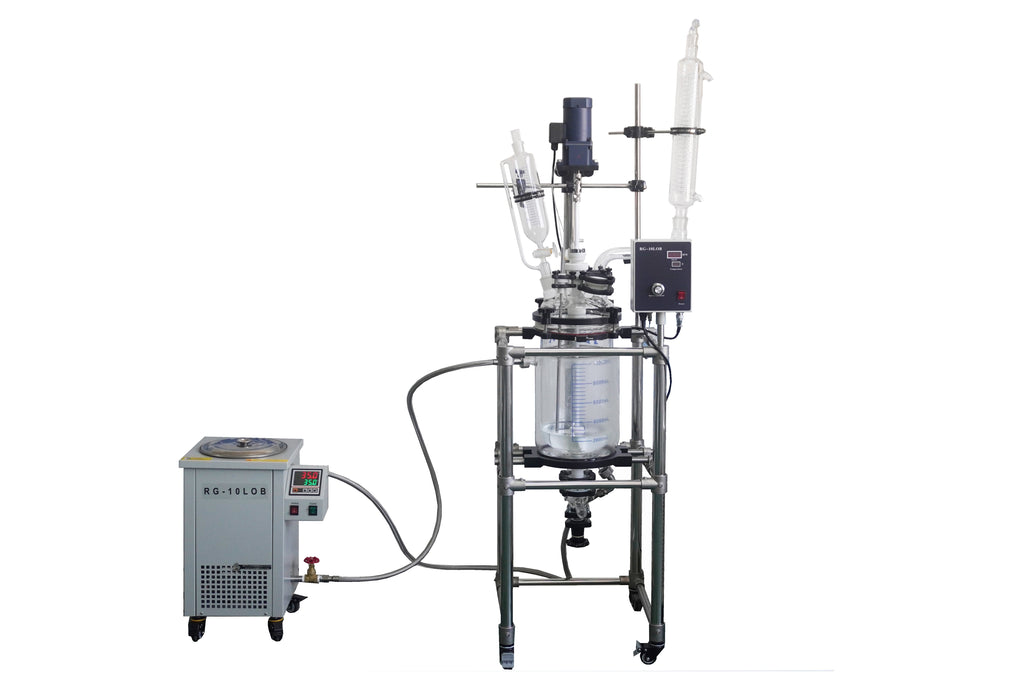

10L or 20L Glass Reactor with Optional PTFE Stirring Blade & 200oC Oil Bath - RG- LXX

For Glass Reactor for 10L:

• Working Voltage: AC208-240V, Single Phase, 50Hz
• Output Power: 100W
• an AC110V is available via a 200W transformer

For Bath Heater for 10 L:

• Working Voltage: AC208-240V, Single Phase, 50Hz
• Output Power: 3KW

• Max. 200 °C Oil Bath Heater is available upon request to heat the reactor.
• A separated bath heater is connected to the glass reactor system via the liquid delivery tubes (Stainless-steel bellow tube) for temperature regulation.

• PT100 sensor is utilized for temperature detection of the Bath Heater to offer ±1 °C temperature accuracy, which is regulated by a  PID temperature control.
• Working Temperature Range for Water Bath: RT - 99°C; Working Temperature Range for Oil Bath: RT -  200°C
• The bath heater is equipped with a pump that recirculates thermal fluid to the heating jacket at a constant flow rate of 10 L/min.

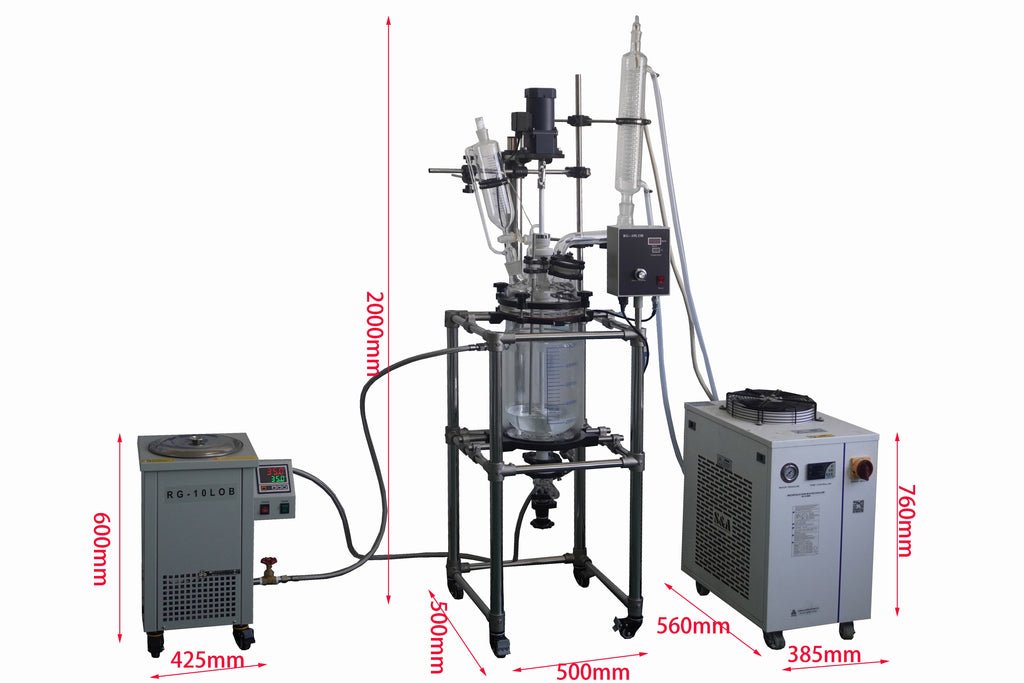

• Bath Heater Dimension: 425 mm x 325 mm x 600mm (L x W x H)
• A drainage gate valve is located on the bottom of the Bath Heater to release the thermal fluid into the heating jacket, while a return port located on the side of the Bath Heater enables the continuous circulation of thermal fluid.


Application Notes:

For thermal fluid selection, deionized or distilled water should be used for water-based circulation. thermal oils with a viscosity below 100cSt are recommended for use within this equipment as oil-based circulation.

Reactor Chamber

• The reactor chamber is made of double-layer glass with air-tight sealed
• 10L or 20 L capacity is selectable from product option
• 10 L Reactor Dimensions: 390 mm O.D x 330 mm I.D
• The Drainage is built at the bottom of the reactor to empty the reactor after a batch reaction.
• For the Bath Heater optional, the heating jacket is integrated around the reactor to allow the thermal fluid to circulate through  the heating jacket for heating. A thermal cloth layer is applied to enhance efficiency.
•

• Rotating Speed: 0 - 25 rpm variable by constant torque
• The stirring blade is made of PTFE

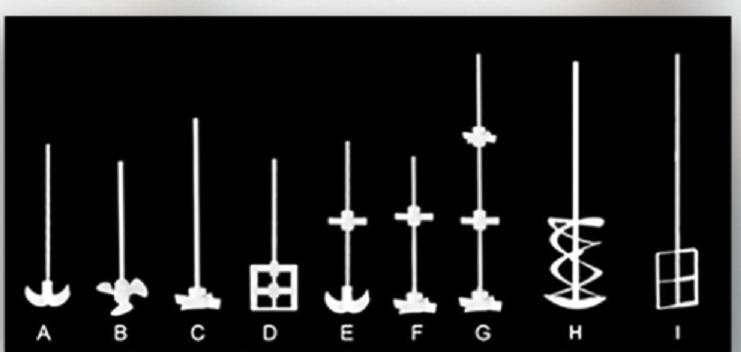

• Various blades are selectable as an option, but A type blade is included as standard

• CE certified
• NRTL or CSA certification is available at the extra cost
