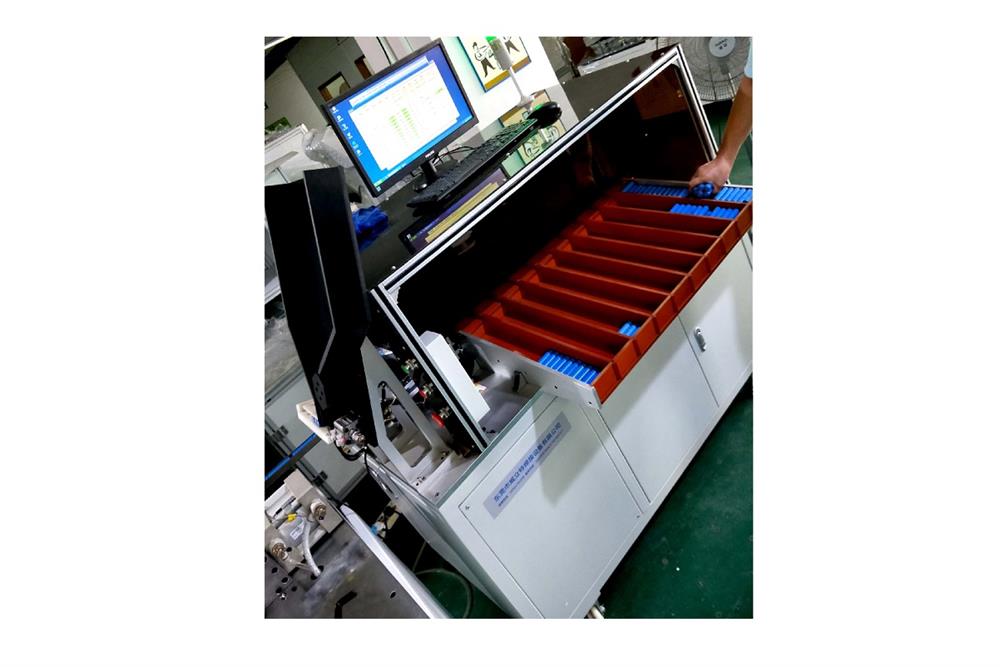

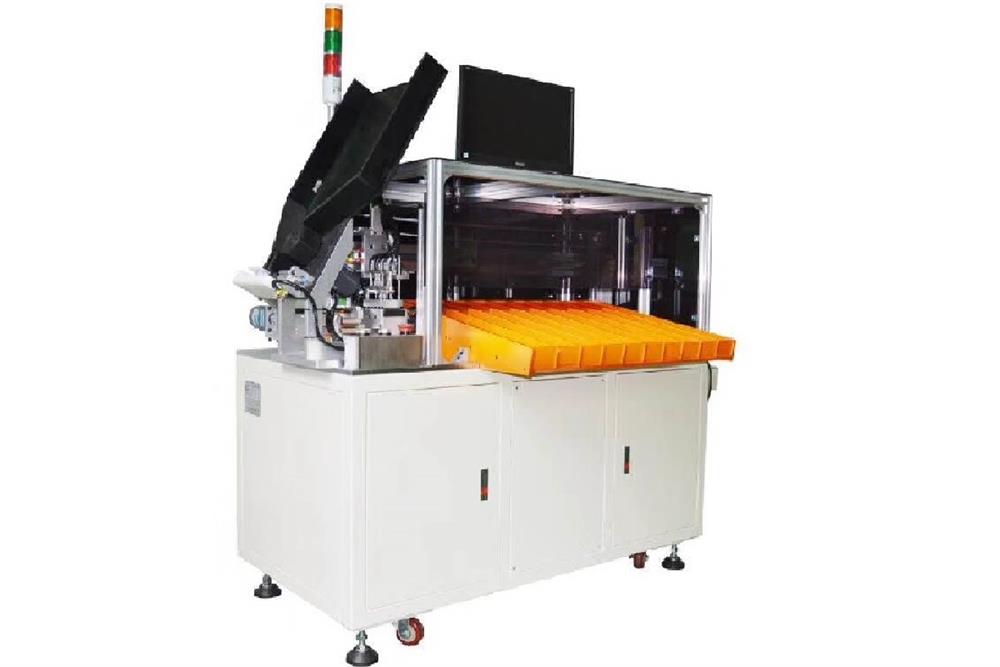

10 Channels Automatic Battery Sorter/ Battery Selector for 18650 or 21700 Cell - MSK-BS-10
  • 10 Channels Automatic Battery Sorter/ Battery Selector for 18650 or 21700 Cell - MSK-BS-10
  • 10 Channels Automatic Battery Sorter/ Battery Selector for 18650 or 21700 Cell - MSK-BS-10
10 Channels Automatic Battery Sorter/ Battery Selector for 18650 or 21700 Cell - MSK-BS-10

10 Channels Automatic Battery Sorter/ Battery Selector for 18650 or 21700 Cell - MSK-BS-10

SKU: 10-channels-automatic-battery-sorter-battery-selector-for-18650-or-21700-cell-msk-bs-10

Price: RFQ

Specifications

 MSK-BS-10 is a 10-channel automatic Battery Sorter/Selector for sorting cylindrical 18650 battery cells by voltage and impedance up to 10 groups. SPECIFICATIONS: Feature A must have equipment for Battery Pack Manufacturer! 10 Channesl automatic cell sorter is designed to sort cylindrical 18650 cells Sort by cell's voltage and impedance up to 10 groups Voltage measurement range: 0 ~ 10V ± 0.01% rdg (0.1 mV/scale) Impedance measurement range: 0 ~ 60mΩ ± 0.5 rdg (0.1mΩ/scale) Automatic sorting control Fast sorting speed (5000 batteries/hr) Easy to refill cells during the process Long post-test cell trail 4 wheels design, easy to move the machine to any operating place. Input Power Voltage: 220 VAC (50Hz/60Hz) Power: 800W LCD Control Panel Screen 5.7" Operation Temperature & Humidity Temperature: 0-50 Humidity: < 75% Air Pressure Range 0.1 - 0.8 Mpa ( air compressor is required, please order at the related product below ) Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator . pic1 pic2 Efficiency Maximum: 80 PPM Compliance MET, UL or TUV certificate is available at extra cost Weight 200 Kg (440 lbs) Dimension 1320 mm (L) x 860 mm (W) x 1200 mm (H) Warning Avoid putting objects other than 18650 batteries in pretest battery space Be careful not to pinch fingers in operating conveyor Do not open the machine when it is operating Remove bracelets or any other jewelries before operation Always check the quantity of the batteries before and after the test in order to prevent blocking the conveyor inside the machine. Warranty One-year limited warranty with lifetime support Operation Manual

Feature
  • A must have equipment for Battery Pack Manufacturer!
  • 10 Channesl automatic cell sorter is designed to sort cylindrical 18650 cells
  • Sort by cell's voltage and impedance up to 10 groups
  • Voltage measurement range: 0 ~ 10V ± 0.01% rdg (0.1 mV/scale)
  • Impedance measurement range: 0 ~ 60mΩ ± 0.5 rdg (0.1mΩ/scale)
  • Automatic sorting control
  • Fast sorting speed (5000 batteries/hr)
  • Easy to refill cells during the process
  • Long post-test cell trail
  • 4 wheels design, easy to move the machine to any operating place.
Input Power
  • Voltage: 220 VAC (50Hz/60Hz)
  • Power: 800W
LCD Control Panel Screen
  • 5.7"
Operation Temperature & Humidity
  • Temperature: 0-50
  • Humidity: < 75%
Air Pressure Range
  • 0.1 - 0.8 Mpa ( air compressor is required, please order at the related product below )
  • Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
           pic1                pic2
Efficiency
  • Maximum: 80 PPM
Compliance
  • MET, UL or TUV certificate is available at extra cost
Weight
  • 200 Kg (440 lbs)
Dimension
  • 1320 mm (L) x 860 mm (W) x 1200 mm (H)
Warning
  • Avoid putting objects other than 18650 batteries in pretest battery space
  • Be careful not to pinch fingers in operating conveyor
  • Do not open the machine when it is operating
  • Remove bracelets or any other jewelries before operation
  • Always check the quantity of the batteries before and after the test in order to prevent blocking the conveyor inside the machine.
Warranty
  • One-year limited warranty with lifetime support
