Description
Specifications:
- Crystal: Si, P-type B-doped
- Resistivity:10-15 ohm.cm

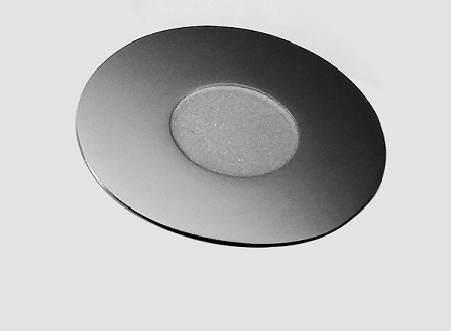

- Size: 30 mm diameter x 1.0 mm Thickness,with a cavity in the center of the plate with 20mm dia. and 0.5 mm depth
- Zero diffraction plate is made of Silicon cut at special orientation
- Perfect for sample holder of powder XRD, which has no background noise from 20 to 120 degree (2θ angle Cu Ka X-Ray)
- Fit with XRD of Siemens, Scintag, Rugaku and many more.
- Warning: X-ray beam shall be 5 mm dia or less and hit in the center of sample when you use cacity zero diffraction plate ! Otherwise the edge may result in a peak.
- Typical XRD of Si zero plate
