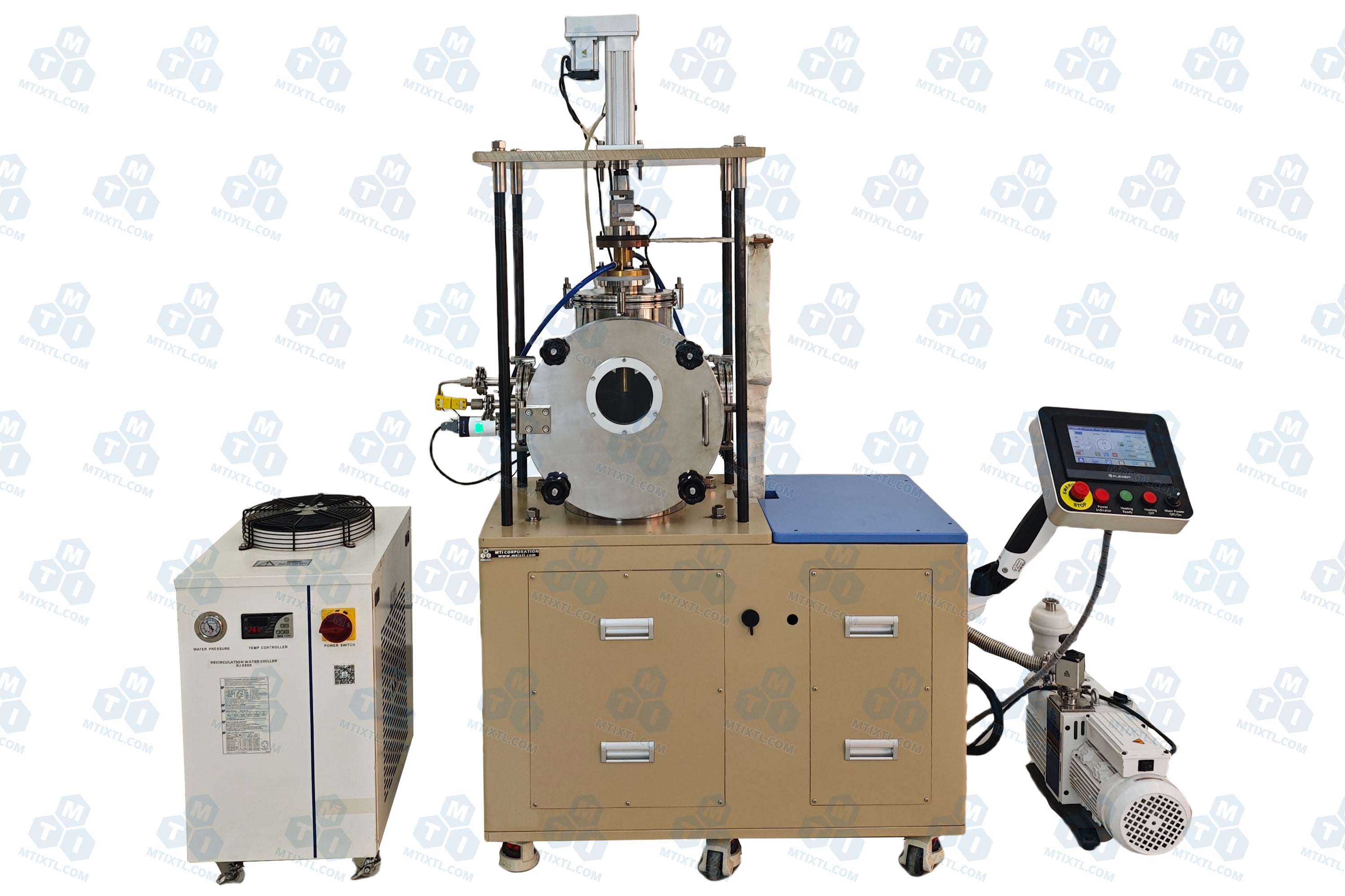

1200 °C Max. Compact SPS Furnace up to 100 MPa YJL-SPS-1200

YJL-SPS-1200 is a low-temperature & low-cost SPS furnace with up to 1200 °C and 100 MPa Pressure. It is designed to press a 6 - 12.7 mm diameter pellet for most battery, thermal, electric, and metallic materials.

SPECIFICATIONS:

Furnace Power	208 - 240 VAC, 50/60Hz, single phase 10 kW

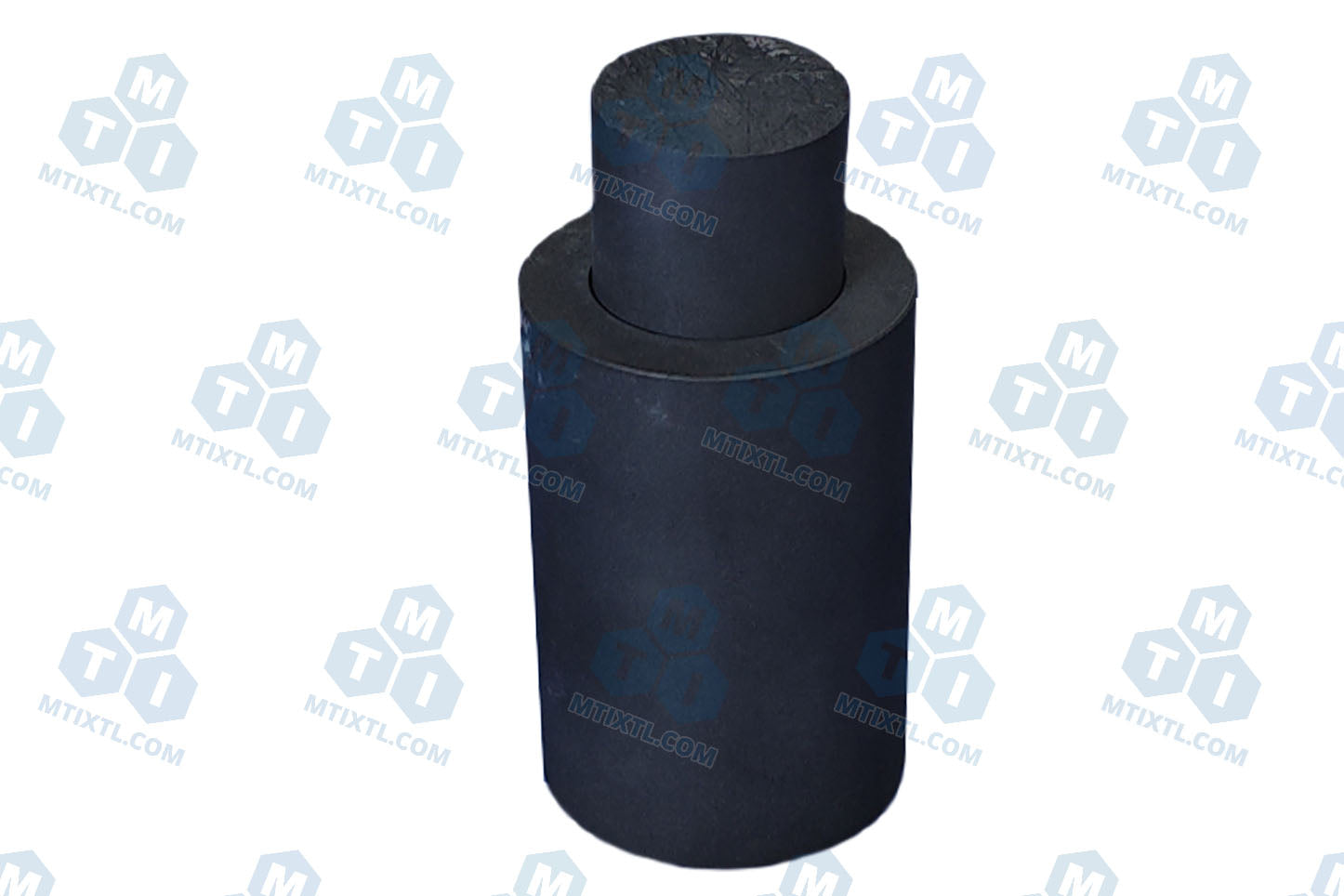

Pressure & Pressing Die	Precision servo motor to apply load to the graphite die up to 2000 Kgf PID control pressure to provide constant pressure with +/- 0.5 Kg accuracy One graphite die with an ID of 12.75 mm is included.  Customized die is available upon request Max.. pressure of graphite die: 100 MPa

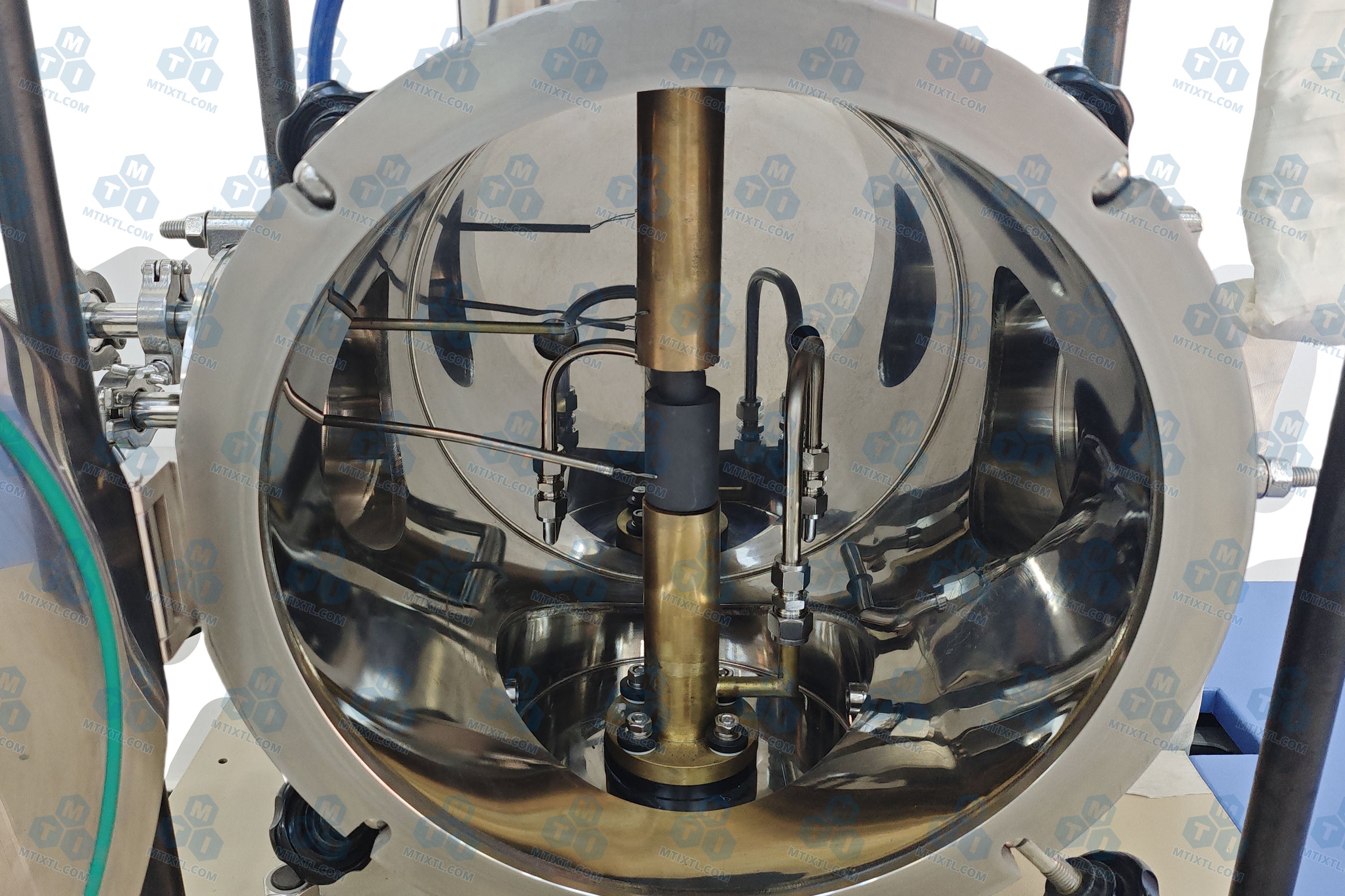

Vacuum Chamber	The vacuum chamber is made of stainless steel Vacuum Chamber: Ø315 mm × 315 mm H (inner dimension) One Ø120 mm quartz observation window.  One KF25 and one KF40 vacuum port are built at the back of the chamber DN160 ISO-K port is built on the left of the chamber for connection of a turbopump Two KF16 and a KF25 port on the top of the chamber for a vacuum meter or other devices The vacuum pump is available upon request
Temperature Control	Resistance heating at 10VAC up to 1000A K-type thermal couple  Max.. working temperature: 1200 °C Max. Heating Rate:  200 °C/ minute 30-segment programmable temperature controller with +/- 1oC accuracy Touch screen panel to control both temperature and vacuum level, and atmospheric pressure RS-485 port and software are included for PC operation and recording temperature and pressure profile
Water Chiller	Digital Temperature Controlled Recirculating Water Chiller with 75L/min Flow, 30K BTU/hr - KJ6300 is included
Optional:
Compliance	CE Certified NRTL or CSA certification is available at extra cost.
