Customized 200 - 400°C - 25T Hydraulic Flat Hot Press with Dual Temp. Controller - YLJ-HP1818V
  • Customized 200 - 400°C - 25T Hydraulic Flat Hot Press with Dual Temp. Controller - YLJ-HP1818V
  • Customized 200 - 400°C - 25T Hydraulic Flat Hot Press with Dual Temp. Controller - YLJ-HP1818V
Customized 200 - 400°C - 25T Hydraulic Flat Hot Press with Dual Temp. Controller - YLJ-HP1818V

Customized 200 - 400°C - 25T Hydraulic Flat Hot Press with Dual Temp. Controller - YLJ-HP1818V

SKU: ylj-hp1818v

Price: RFQ

Description

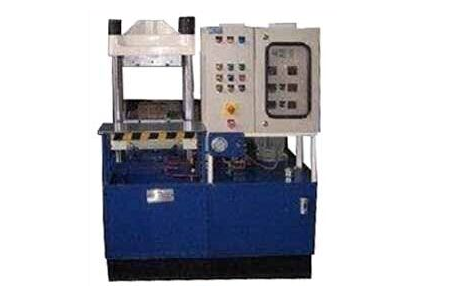

 YLJ-HP1818V is a large heatable Lamination press with 18"x18" platens with a Max 250 °C working temperature and 200 PSI working pressure, which consists of a 25T hydraulic press with a manually operated oil pump & two heated platens. The temperatures of heated platens are controlled by two digital temperature controllers separately One pressure gauge (250 KN) is also mounted to monitor the pressure applied on the platens. SPECIFICATIONS: Hydraulic Press Hydraulic press manually operated as picture left ; electrically operated version available at extra cost) 25 metric Tone ( 250 KN) Voltage 220VAC +/-10%, 50/60Hz 7000W Max. ( 40A breaker required ) Pressure Gauge Measuring Accuracy is +/-1.25 KN Heated Platen Area Platen Area: 10"x10" , 18"x18" ( optional ) Material: Headen Steel Surface: Flating with CNC grinding Max. Travel Distance 5" (125mm) Max. Max. Working Temperature 205°C continous 250°C for less 30 minutes Max. 400 is vailable upon request at teh additional cost Heating Rate 5°C/min ( ~ 10 F/min ) Temperature Control Two digital controller installed in one box with one point control and ayto-tune faction Temperature accuracy ±1°C. Compliance CE Certified

Hydraulic Press
  • Hydraulic press manually operated as picture left ; electrically operated version available at extra cost)
  • 25 metric Tone ( 250 KN)
Voltage 220VAC +/-10%, 50/60Hz
7000W Max. ( 40A breaker required )
Pressure Gauge Measuring Accuracy is +/-1.25 KN
Heated Platen Area
  • Platen Area: 10"x10" , 18"x18" ( optional )
  • Material: Headen Steel
  • Surface: Flating with CNC grinding
Max. Travel Distance
  • 5" (125mm) Max.
Max. Working Temperature
  • 205°C continous
  • 250°C for less 30 minutes
  • Max. 400 is vailable upon request at teh additional cost
Heating Rate
  • 5°C/min ( ~ 10 F/min )

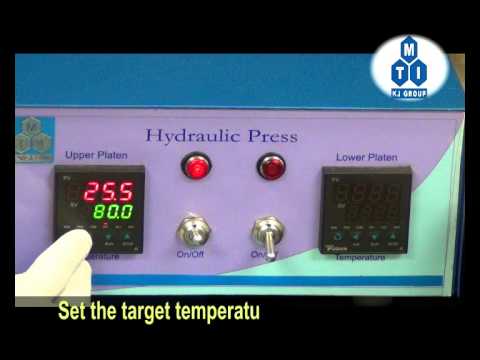

Temperature Control
  • Two digital controller installed in one box with one point control and ayto-tune faction
  • Temperature accuracy ±1°C.
Compliance
  • CE Certified
