330 MPa CIP (Cold Isostatic Pressing) Press with 30mm ID Vessel up - YLJ-CIP-20B

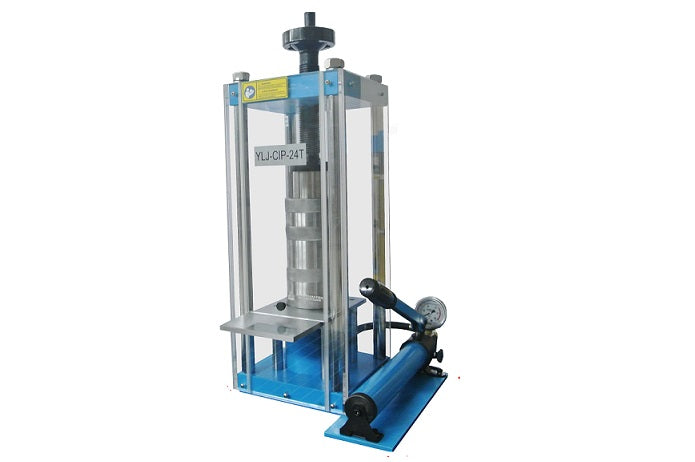

YLJ-CIP-20B is a compact cold isostatic press (CIP). It has a 30mm dia. x110mm pressure vessel made by ultra-strength alloy, which can provide isostatic hydraulic pressure up to 330 MPa via a 24T manual hydraulic press. It is an excellent tool for the material research lab to prepare high-density compound samples at ease, especially to prepare 1" Dia. the target for PLD. YLJ-CIP-20B has a small footprint, can be placed in a glove-box to prepare air-sensitive materials. A plastic protection cover is included.

Pressure Vessel Size	30mm Dia. x 110mm Height (pressing die cavity) Max sample height: 60mm Hydraulic oil volume (with sample loaded): 40mm distance to the top edge.  Made of high strength alloy with stainless steel protective jacket Spare CIP die is available at extra cost for the existing customer 30mm ID 22mm ID Click to learn: What is Cold Isostatic Pressing (CIP)?
Max. Hydraulic Pressure in Chamber	300 Mpa -- for continuous holding at 21T 330 Mpa - for less 5 minutes holding at 23.3 T
Gauge Pressure vs Force	Gauge Displayed Pressure Value (Mpa) 5 10 15 20 25 30 35 39  43 Actual Force Applied on the Hydraulic Cylinder (Ton) 4 6 9 11 14 17 19 21 23.3 CIP Die Pressure (Mpa) 55 83 125 152 194 236 264 300  330 The actual force applied to the Vessel Cylinder (Ton) equal to the force applied to your working piece For calculating the actual pressure (Mpa) applied on your working piece, please follow the equations in below: P = (T x g x 10) / (π x r^2) P: Pressure (Mpa) applied to your working piece T: Force (metric ton) Applied on the Pressure Vessel Cylinder g: Standard gravity. g ≈ 9.8 m/s2 π: ~3.14 r: Radius (cm) of the Pressure Vessel ( 1.5 cm) *1000 Kg = 1 Metric Tone; 1 Mpa = 10 Kg/cm2
Hydraulic Machine	24T Max. Hydraulic Press is included.  The manual pump is separated from the cylinder for safe operation Optional: the electric pump with programmable pressure control is available at the extra cost:
Operation Temperature	10 - 40°C
Bottom Cylinder Traveling Distance	20 mm maximum. The bottom cylinder (piston) is shown in the illustration in the dimension section.

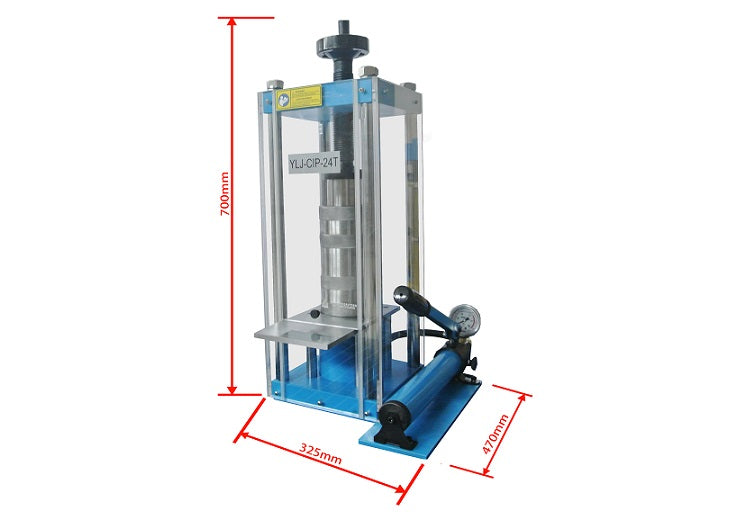

Working Space	D1: 100mm D2: 100mm D3: 140mm H1: 370mm H2: 340mm
Compliance	CE Certified
Accessories in the Standard package	Spare O-ring and accessories are included
Application Notes	You may use the liquid rubber to seal the sample to be CIP ( click Pic below to order ). Check this link to understand liquid rubber for sample preparation. ( Pic. 1) Also, you may use a chamber vacuum sealer to seal the sample before CIP ( Pic. 2) In order to get a high density of the sample, you shall press pre-pressing a pellet, then CIP ( Pic. 3) Pic. 1  Pic. 2 Pic. 3
Warning	Never let the press holding the target pressure for more than 1 hour. Pressure must be completely released first, then make sure the hand wheel and the pressure release valve has been tightened before pressing Do not raise the bottom cylinder (piston) more than it's maximum traveling distance. (20mm)
