Description
YLJ-10TA is a compact electric compressive & oil-less press with a digital pressure gauge and load cell up to max. 10 metric tone force via a DC motor (10 metric Tons). It is designed for pressing small pellets in the glove box (Ar compatible) for ceramic research and solid-state battery. The compact press can be placed inside the glovebox via an antechamber. PC control software and PC connection are included for 2023 and newer models.
SPECIFICATIONS:
|
Power
|
- 24V DC input
- NRTL & CSA certified 110 - 240V AC to 24V DC 120W power adapter for universal use
|
|
Pressure
|
- A built-in load cell with a digital display for pressure measurement and control
- Digital control panel for programmable pressure and dwell time
- Automatically keeps constant pressure during
- Pressure adjustment range: 0.5 -10 T
- Pressure accuracy: +/- 2 Kg dwell period
- Time setting: 1 - 999 minutes
|
|

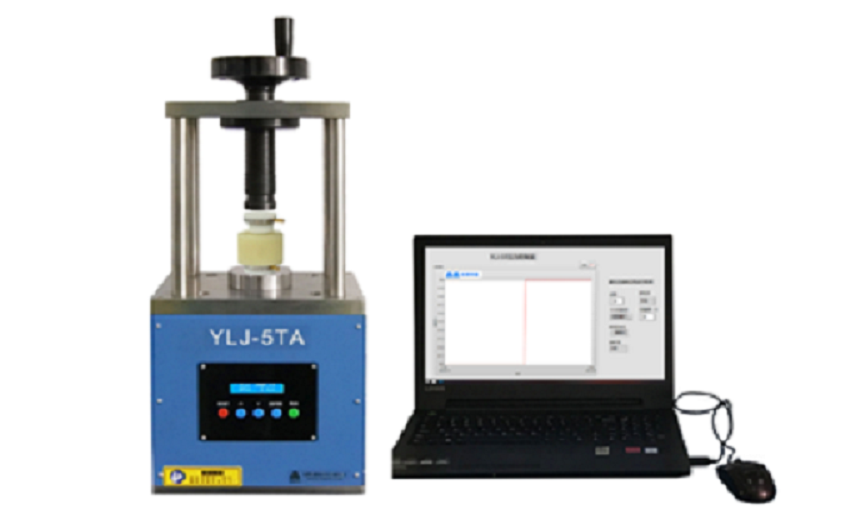

PC Control Software
|
- The PC port is built in for possible remote operation
- Software functionalities, which is available upon request at extra cost
- Pressure Monitoring.
- Data Logging/Exporting to Excel.
- Set up the pressure and pressing time.
- Start and stop the press.
- Optional: A laptop with pre-installed software is available upon request at an extra cost
|
| Structure |
Heavy-Duty Steel Platform |

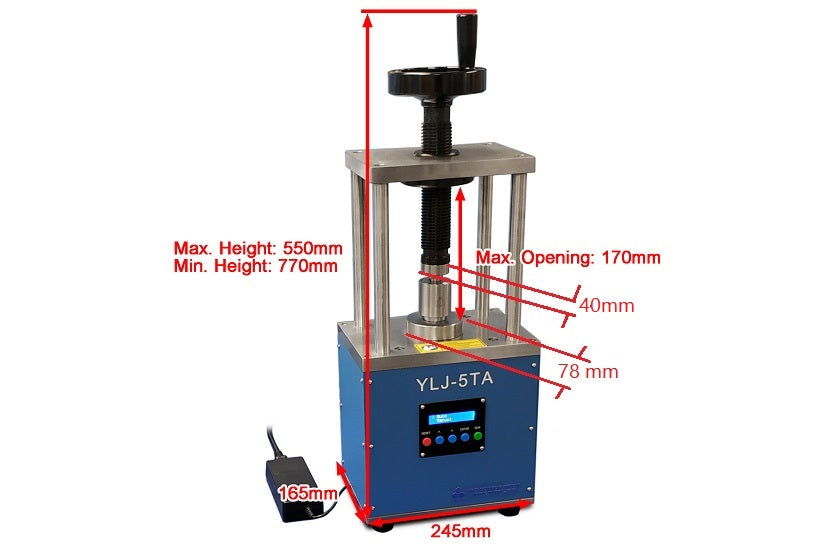

| Working space |
Stroke: 35 mm
Width: 135 mm |
| Compliance |
- CE approval
- NRTL or CSA certification is available upon request at an extra cost.
- Note: NRTL certification is not necessary due to 24VDC safe device
|
