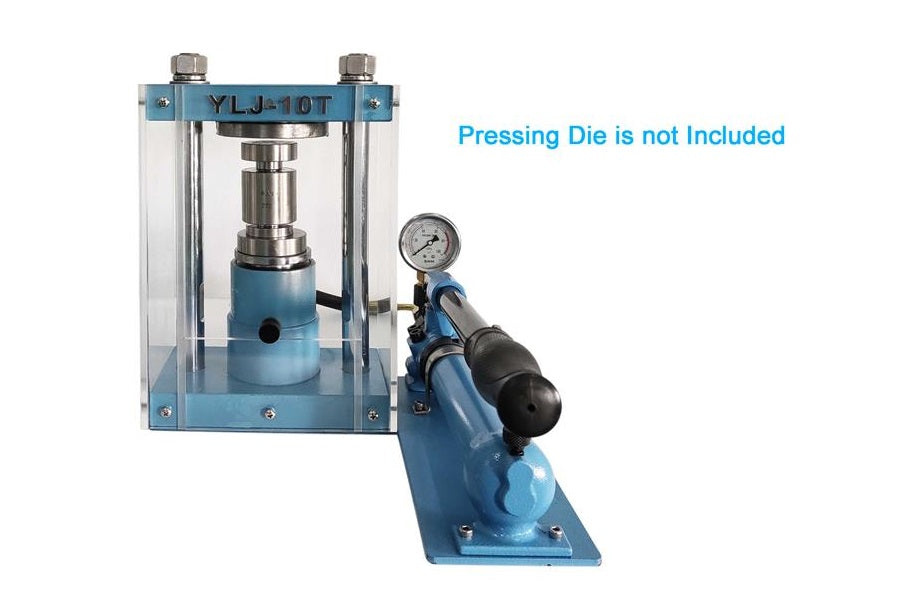

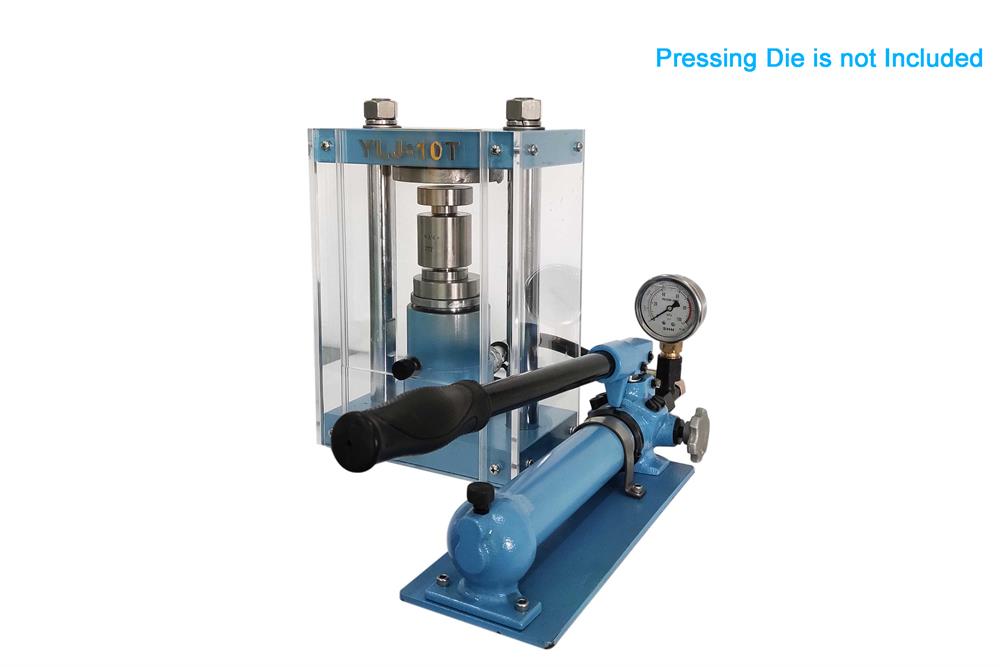

10T Compact Lab Press with Separable Hydraulic Pump & Safety Cover - YLJ-10T

• 10 Metric Ton
• The pressure gauge is built-in

• Displayed pressure value to actual applied force conversion: 1 MPa = ~ 0.3 Ton
• The actual force applied to the vessel cylinder (Ton) is equal to the force applied to your working piece
• For calculating the actual pressure (Mpa) applied to your working piece, please follow the equations below:
• P = T x g x 10/ (πr^2)
• P: pressure (Mpa) applied to your working piece
• T: force (metric ton) applied to the pressure vessel cylinder
• g: standard gravity. g ≈ 9.8 m/s2
• π: ~3.14
• r: radius (cm) of the pressure vessel (3 cm)
• *1000 Kg = 1 Metric Ton; 1 Mpa = 10 Kg/cm2

• 10 T Max.
• The hydraulic cylinder travel distance is 45 mm
• Cylinder diameter: 35 mm

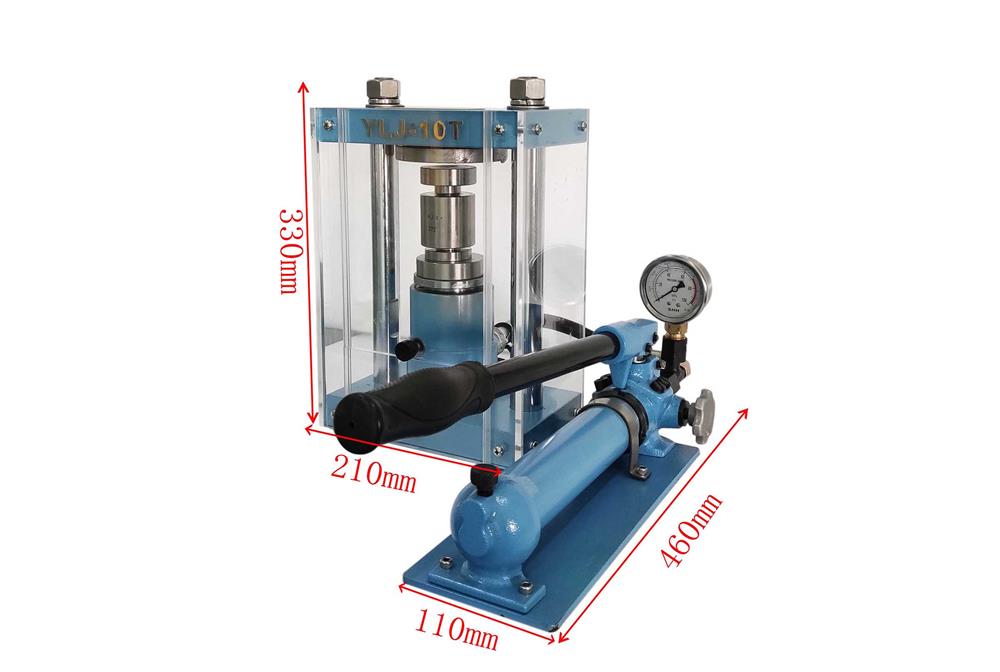

• Working space: 125LX100WX100H ( mm)
• The manual hydraulic pump is separated from the cylinder for safe operation
• When pressing with a small/short die, spacers are needed to obtain the desired pressure

• Please click picture below to choose a pressing die
•

• The pressing die is not suggested to be used for pressing powder with particle size < 30 microns. Small particles may slip into the gap between the pushing rod and the steel sleeve and cause damage to the sleeve during the compression. Ball mill and sieve the powder and apply only the 32~75 microns powder to the pressing die to avoid damage. Please consider using the 3'' Dia. Sieve Set No.200&450 Mesh to separate the 32~75 microns particles from the powder clumps. Please clean the mold using ethanol after completing each experiment.

Force Applied to the Cylinder (Ton)

1

2

3

4

5

6

7

8

9

10

Gauge Displayed Pressure (Mpa)

1

4

9

13

16

20

23

26

30

34
