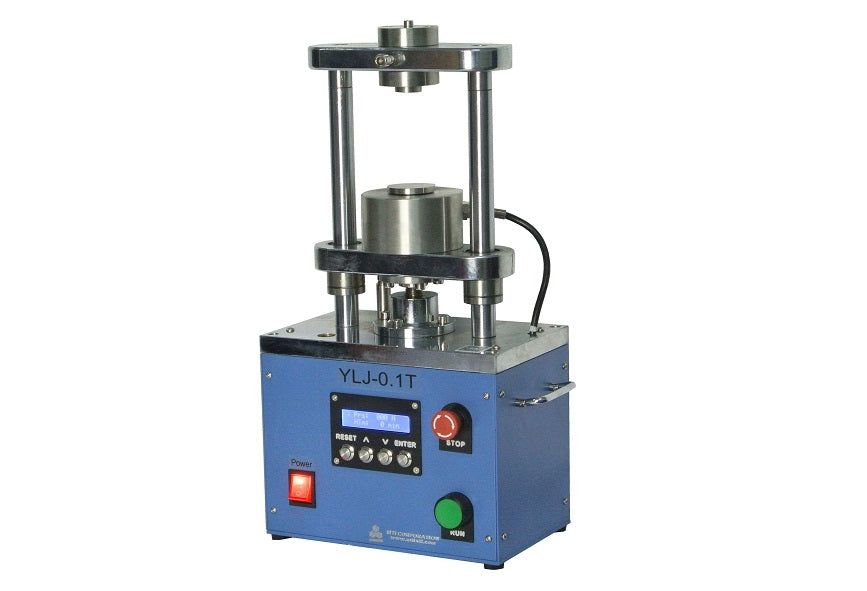

50 - 450N Precision Electric Press with +/- 5N Accuracy - YLJ01TA
  • 50 - 450N Precision Electric Press with +/- 5N Accuracy - YLJ01TA
  • 50 - 450N Precision Electric Press with +/- 5N Accuracy - YLJ01TA
  • 50 - 450N Precision Electric Press with +/- 5N Accuracy - YLJ01TA
  • 50 - 450N Precision Electric Press with +/- 5N Accuracy - YLJ01TA
50 - 450N Precision Electric Press with +/- 5N Accuracy - YLJ01TA

50 - 450N Precision Electric Press with +/- 5N Accuracy - YLJ01TA

SKU: ylj-01ta

Price: RFQ

Specifications

 YLJ-01TA is a compact & precision electric press with a digital pressure gauge up to 450N. It is designed for the precise compressing of small pellets Ø1/4") in the glovebox for ceramics and solid-state battery and liquid Li-ion pouch cells. SPECIFICATIONS: Power 110 - 240V AC (50/60Hz) power adapter, NRTL & CSA certified 24V DC motor, 15W Ar environment compatible Pressure Control A built-in load cell with a digital display for pressure measurement and control Pressure adjustment range: 50 N - 450N ( 5kg - 45Kg) Digital pressure control with +/- 5N accuracy (0.5 Kg) Dwell time: 2- 9999 min programmable Working Space Working plate: φ55 mm Max sample height: <100mm Travel distance: 20mm You may add two rectangular aluminum plates ( W 55mm x L 60 mm) to press a pouch cell. The press with rectangular plates (70x58mm) is available upon request at an extra cost. Pic.1 Pic.2 Pic 3. Compliance CE approval NRTL or CSA (UL 1450) is available upon request at extra cost. Note: NRTL certification is not necessary due to 24VDC safe device Application Notes It can be used as a jig for compressing pressure adjustable split test cell, please click the picture below for details: It also can be used for pressing pellets via < 0.5" diameter die in the glove box under both N2 and Ar gas The press machine can be put into the glove-box through the air-lock chamber P1. P2. P3. P4.

Power
  • 110 - 240V AC (50/60Hz) power adapter, NRTL & CSA certified
  • 24V DC motor, 15W
  • Ar environment compatible

Pressure Control
  • A built-in load cell with a digital display for pressure measurement and control
  • Pressure adjustment range: 50 N - 450N ( 5kg - 45Kg)
  • Digital pressure control with +/- 5N accuracy (0.5 Kg)
  • Dwell time: 2- 9999 min programmable

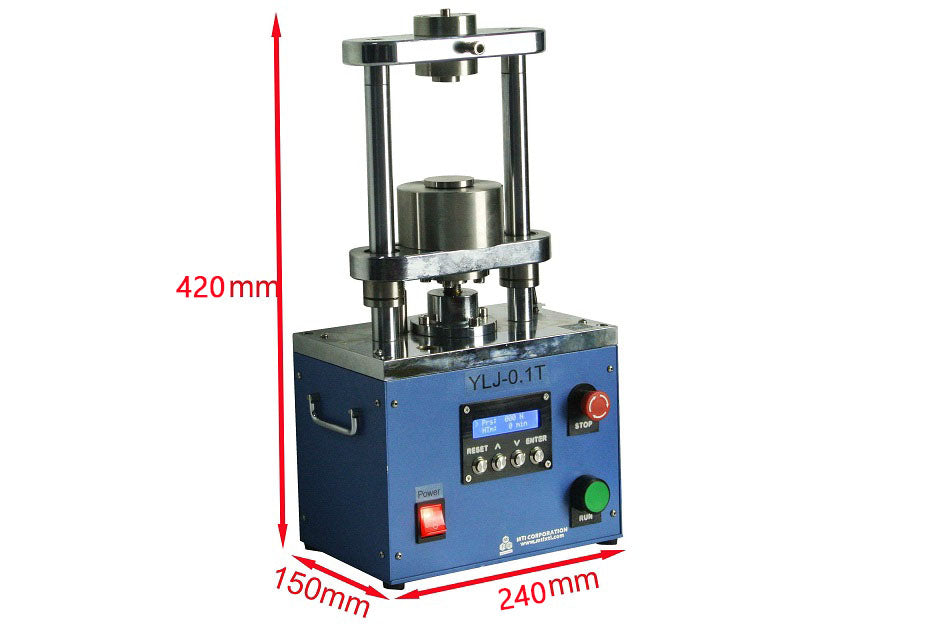

Working Space
  • Working plate: φ55 mm
  • Max sample height: <100mm
  • Travel distance: 20mm
  • You may add two rectangular aluminum plates ( W 55mm x L 60 mm) to press a pouch cell.

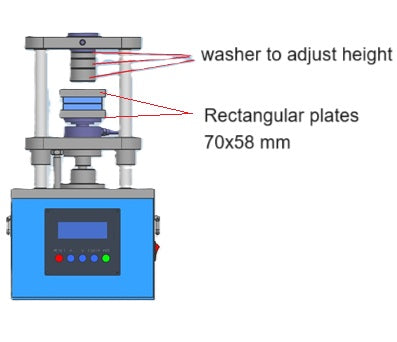

  • The press with rectangular plates (70x58mm) is available upon request at an extra cost.
Pic.1      Pic.2         Pic 3.
Compliance
  • CE approval
  • NRTL or CSA (UL 1450) is available upon request at extra cost.
  • Note: NRTL certification is not necessary due to 24VDC safe device
Application Notes
  • It can be used as a jig for compressing pressure adjustable split test cell, please click the picture below for details:
  • It also can be used for pressing pellets via < 0.5" diameter die in the glove box under both N2 and Ar gas
  • The press machine can be put into the glove-box through the air-lock chamber
P1.P2.P3.P4.
