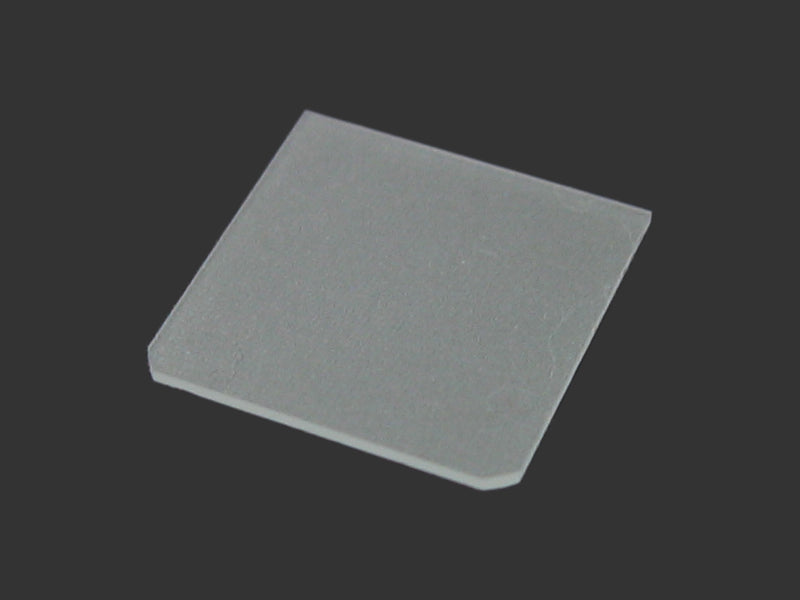

YAG (100) 10x10x1.0mm, 1sp - YAGa101010S1
  • YAG (100) 10x10x1.0mm, 1sp - YAGa101010S1
YAG (100) 10x10x1.0mm, 1sp - YAGa101010S1

YAG (100) 10x10x1.0mm, 1sp - YAGa101010S1

SKU: yaga101010s1

Price: RFQ

Description

 Single crystal of YAG Size: 10mm x 10mm x 1.0mm Orientation: (100) Polish: one side polished Undoped YAG (Y 3 Al 5 O 12 ) is a new substrate and window material for both UV and IR optics. It is particularly useful for high temperature and high-energy applications. YAG shows no trace absorption in 2-3micron region where glasses tend to be highly absorbent due to the strong H2O2 band.  The YAG's mechanical and chemical stability is similar to sapphire, but YAG is no birefringence and has higher optical homogeneity. Physical Properties of YAG Crystal Structure Cubic:   a =12.01 Å Crystal Purity > 99.999% Melt Point 1970 o C Density 4.56   g/cm 3 Hardness 8.5 ( mohns) Thermal Expansion 6.9 x10 -6 / o C at  0- 250 o C Thermal Conductivity, 143 W/(m.k)  @ 20 o C d h / dt 7.4  x10 -6 / o C Transmission Range 250 ~ 5000 nm  without absorption in 2000 - 3000 nm Related Products CdWO 4 LSAT LaAlO3 MgO Film Coaters SrLaAlO4 NdCaAlO4 SrTiO3 YSZ Wafer Boxes



Physical Properties of YAG

Crystal Structure

Cubic:   a =12.01 Å

  Crystal Purity

> 99.999%

Melt Point

1970 oC

 Density

4.56   g/cm3

Hardness

8.5 ( mohns)

Thermal Expansion

 6.9 x10-6/ oC at  0- 250 oC

Thermal Conductivity,

143 W/(m.k)  @ 20 oC

dh / dt

7.4  x10-6/ oC

Transmission Range

250 ~ 5000 nm  without absorption in 2000 - 3000 nm

,
