SKU: vgb6otf2vbf

Price: RFQ

Description

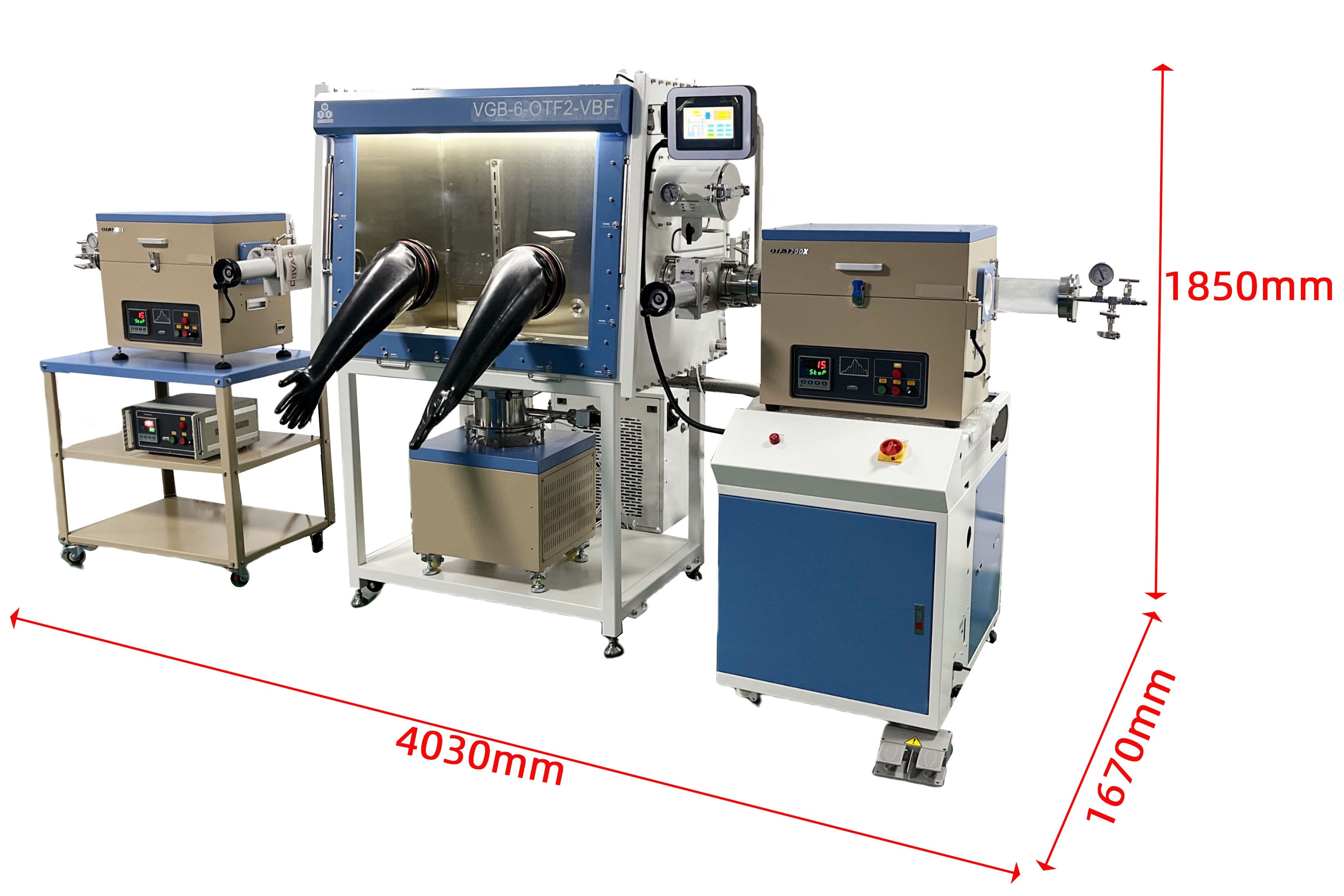

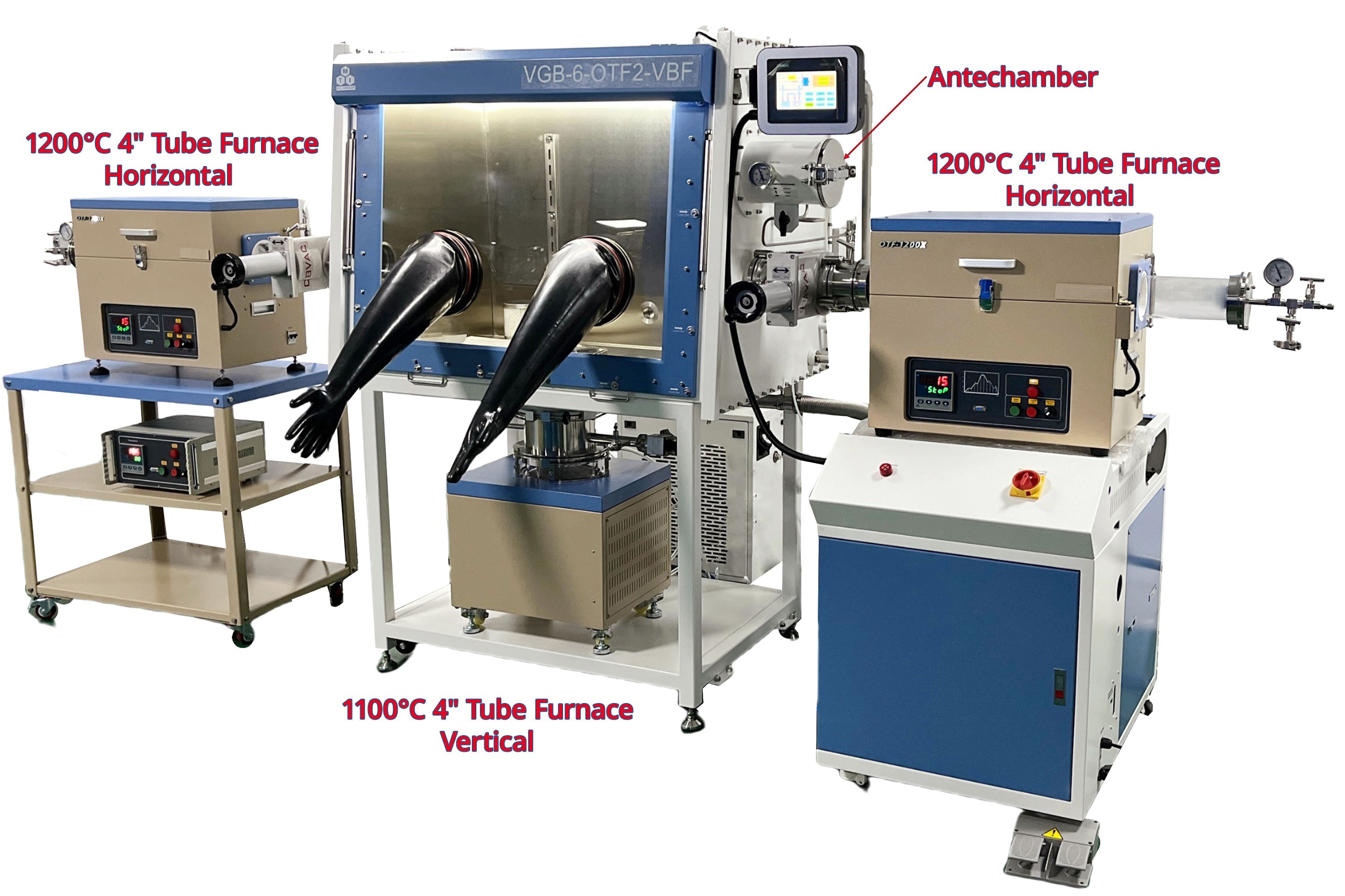

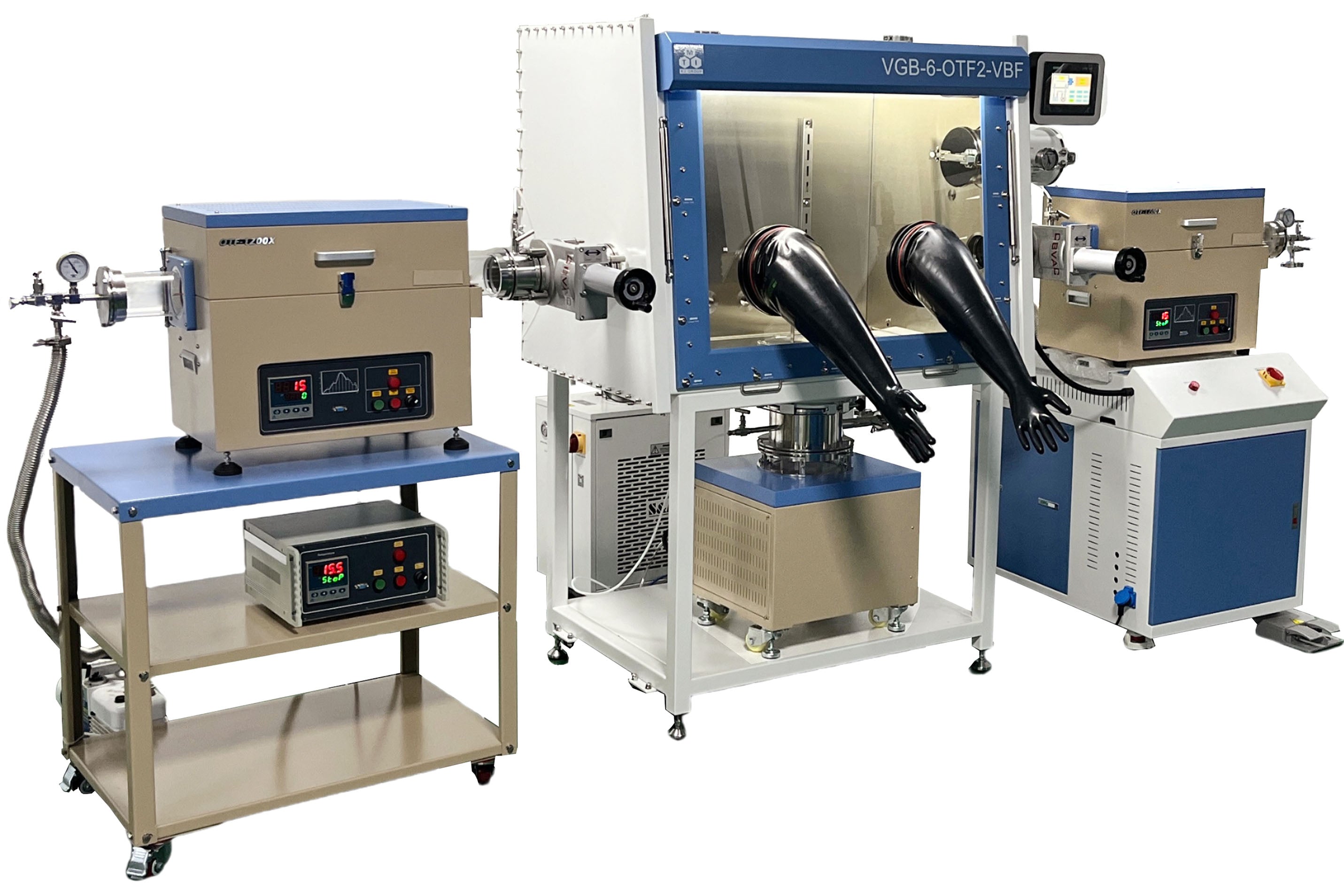

 The VGB-6-OTF2-VBF system consists of three tube furnaces connected to a glovebox equipped with a water and oxygen purification system , achieving H₂O and O₂ levels below 1 PPM . Heat-treated samples can be transferred directly into the glovebox for further processing. SPECIFICATIONS Voltage Single-phase 208-240VAC, 50/60 Hz Max. Power Consumption Glovebox Power: 1500W Total Power of High-Temperature Furnaces: 8.5KW Furnaces One 1200°C single-zone tube furnace on each side Max Temperature: 1200°C, Continuous Operating Temperature: 1100°C Tube Dimensions: 100mm OD × 96mm ID × 1000mm L A vertical furnace at the bottom of the glovebox Max Temperature: 1100°C, Continuous Operating Temperature: 1000°C Single-end sealed Φ200 × 340mm quartz tube Circulating Water Chiller Equipped with a Recirculating Water Chiller for Bottom Flange Sealing of the Vertical Tube Furnace Model: KJ-5300 Operating Voltage: AC 220V 50Hz Operating Current: 0.7–8 A Cooling Capacity: 6,274 Btu/h Compressor Power: 600 W Reservoir Capacity: 10 L Maximum Flow Rate: 16 L/min Net Weight: 45 kg Certification All electrical components (with input voltage ≤ 24V) are UL or CSA certified.

Voltage Single-phase 208-240VAC, 50/60 Hz
Max. Power Consumption
  • Glovebox Power: 1500W
  • Total Power of High-Temperature Furnaces: 8.5KW
Furnaces

One 1200°C single-zone tube furnace on each side

  • Max Temperature: 1200°C, Continuous Operating Temperature: 1100°C
  • Tube Dimensions: 100mm OD × 96mm ID × 1000mm L

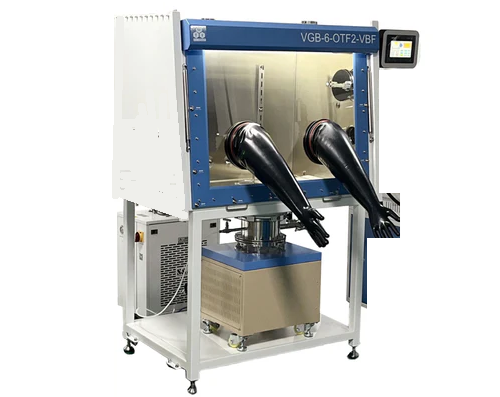

A vertical furnace at the bottom of the glovebox

  • Max Temperature: 1100°C, Continuous Operating Temperature: 1000°C
  • Single-end sealed Φ200 × 340mm quartz tube





Circulating Water Chiller

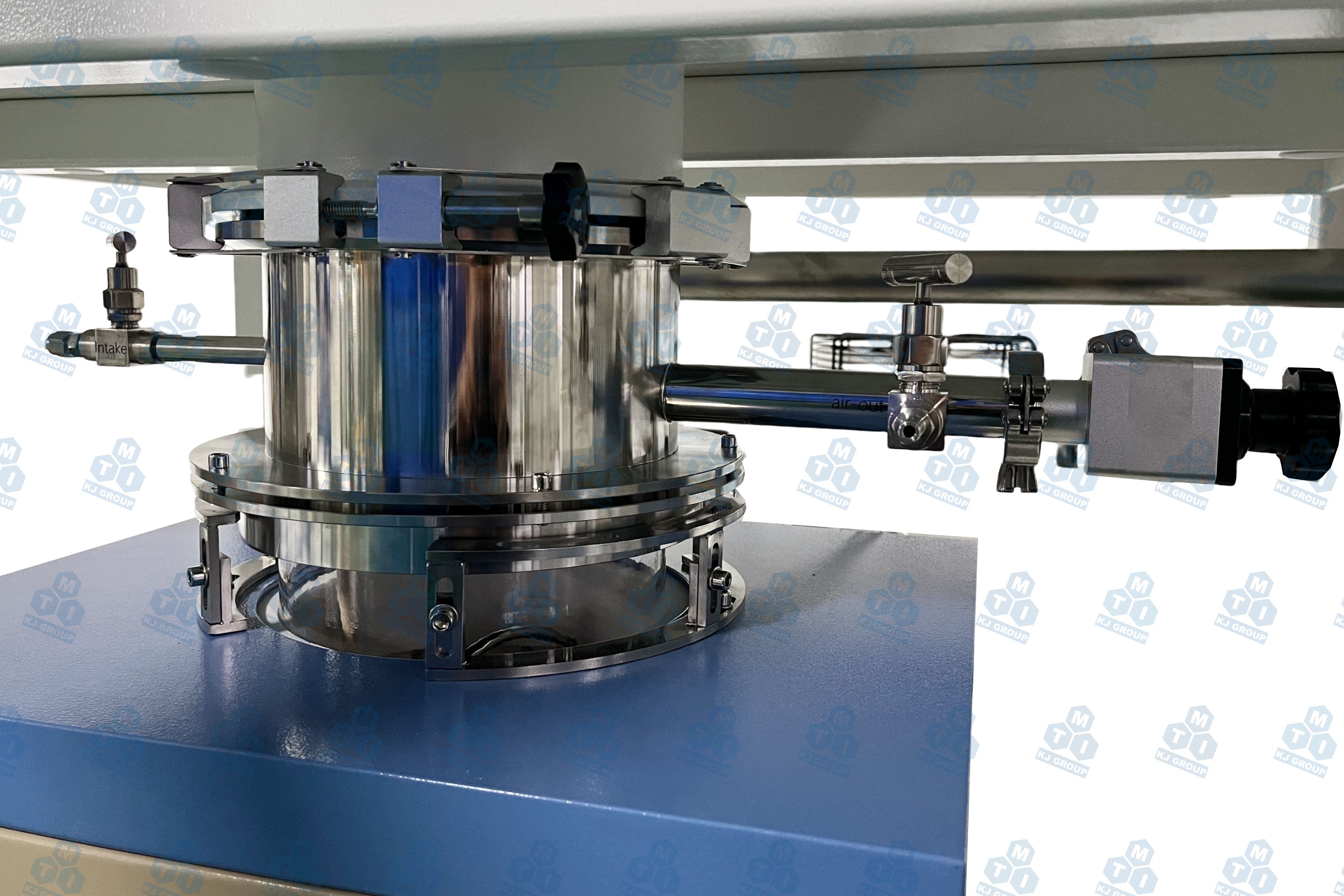

 Equipped with a Recirculating Water Chiller for Bottom Flange Sealing of the Vertical Tube Furnace
Model: KJ-5300

  • Operating Voltage: AC 220V 50Hz
  • Operating Current: 0.7–8 A
  • Cooling Capacity: 6,274 Btu/h
  • Compressor Power: 600 W
  • Reservoir Capacity: 10 L
  • Maximum Flow Rate: 16 L/min
  • Net Weight: 45 kg
Certification

All electrical components (with input voltage ≤ 24V) are UL or CSA certified.
