Heavy Duty (12") Precision Grinding / Polishing Machine with Complete Accessories - UNIPOL1210
  • Heavy Duty (12") Precision Grinding / Polishing Machine with Complete Accessories - UNIPOL1210
Heavy Duty (12") Precision Grinding / Polishing Machine with Complete Accessories - UNIPOL1210

Heavy Duty (12") Precision Grinding / Polishing Machine with Complete Accessories - UNIPOL1210

SKU: unipol1210

Price: RFQ

Description

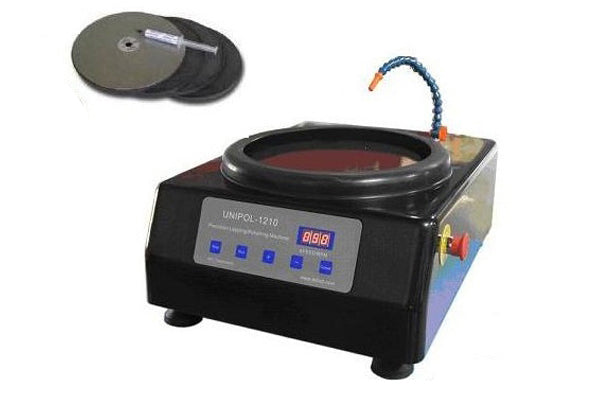

 UNIPOL-1210 grinding/polishing machine is equipped with a 12" lapping plate and can be used as a standard manual grinder, or lapping/polishing machine for both flat sample and metallographic samples. It is the most cost-effective solution for the material research lab to prepare metallographic samples and failure analysis. SPECIFICATIONS Power DC 24V An AC 110 - 240V to DC 24V power adapter is included. Motor 300 W high torque DC motor with one year warranty Features D igital control panel with "touch button" operation Water resistance 12" Aluminum master plate with a magneticpad and steel buffer sheet for an easy diamond plate and sandpaper replacement Variable speed 50 - 600 RPM with digital display Emergency stop Emergency stop possible Dimensions 600 L x 460 W x 280 H (mm) Hose Diameter Water hoses (for water inlet and outlet) were included Hose I.D for the water outlet: 25mm Hose I.D for the water inlet: 15mm Net weight 32 kg Dimensions of shipment 48" x 40" x 25" Weight of shipment 140 Lbs Accessories One 12" diameter aluminum metal plate was pre-installed with a magnetic pad . (EQ-MagnetP12) Five steel buffer sheets (Zinc coated) for carrying sandpaper and polishing pad, which can be attached to the magnetic plate stable and easy detachment Two 12" PSA Diamond Lapping plates with 600 mesh and 800 mesh separately One 12" PSA black polishing pads for final polishing One 10g diamond paste for testing polishing . Optional: Please click the link below to order diamond polishing paste or sandpaper Compliance CE Certified NRTL certification is available at the extra cost Operation Instructions Warranty One year limited with lifetime support Rusting and damage due to improper storage condition or maintenance are not covered by warranty STANDARD PACKAGE: (Updated 2017.02.23) Part No Description Quantity Picture EQ-Unipol-1210 Heavy Duty (12") Precision Grinding / Polishing Machine 1 unit Unipol-1210-1 Pre-installed 12" diameter aluminum metal plate with a magnetic pad . (EQ-MagnetP12) 1 set Unipol-1210-2 Anti-Splash Plastic safeguard ring (Pre-installed) 1 set EQ-PP-12PSA-PC Ø12" Polishing Pad (Frosted Leather) (Black) 1 set EQ-PFP012 12" Polyamide Foam Polishing Pad (Brown) 1 set EQ-PP-12SL Ø12" Polishing Pad (Synthetic Leather) (White) 1 set EQ-SteelBF12 Five steel buffer sheets (Zinc coated) for carrying sandpaper and polishing pad, which can be attached to magnetic plate stable 5 pcs EQ-MW One 10g diamond paste for testing polishing 1 set EQ-DGP Two 12" PSA Diamond Lapping plates with 600 mesh and 800 mesh separately 1 set Consumables & Accessories (Click to view recommended spare parts list) * Optional parts are not included in the standard package. You have to order separately. Prices are subject to change without notification.

Power

DC 24V
An AC 110 - 240V to DC 24V power adapter is included.
Motor 300 W high torque DC motor with one year warranty

Features
  • Digital control panel with "touch button" operation
  • Water resistance
  • 12" Aluminum master plate with a magneticpad and steel buffer sheet for an easy diamond plate and sandpaper replacement
Variable speed 50 - 600 RPM with digital display
Emergency stop Emergency stop possible
Dimensions 600 L x 460 W x 280 H (mm)
Hose Diameter Water hoses (for water inlet and outlet) were included
  • Hose I.D for the water outlet: 25mm
  • Hose I.D for the water inlet: 15mm
Net weight 32 kg
Dimensions of shipment 48" x 40" x 25"
Weight of shipment 140 Lbs
Accessories
Compliance
  • CE Certified
  • NRTL certification is available at the extra cost
Operation Instructions

Warranty
  • One year limited with lifetime support
  • Rusting and damage due to improper storage condition or maintenance are not covered by warranty
,
Part No

Description

Quantity

EQ-Unipol-1210 Heavy Duty (12") Precision Grinding / Polishing Machine

1 unit
Unipol-1210-1 Pre-installed 12" diameter aluminum metal plate with a magnetic pad. (EQ-MagnetP12)

1 set
Unipol-1210-2 Anti-Splash Plastic safeguard ring (Pre-installed)

1 set
EQ-PP-12PSA-PC Ø12" Polishing Pad (Frosted Leather) (Black)

1 set
EQ-PFP012

12" Polyamide Foam Polishing Pad (Brown)

1 set
EQ-PP-12SL

Ø12" Polishing Pad (Synthetic Leather) (White)

1 set
EQ-SteelBF12

Five steel buffer sheets (Zinc coated) for carrying sandpaper and polishing pad, which can be attached to magnetic plate stable

5 pcs

EQ-MW

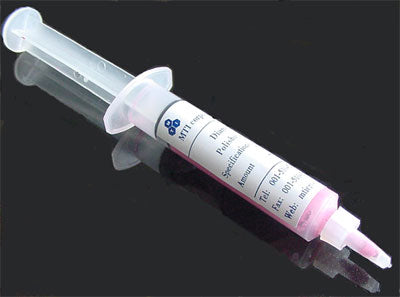

One 10g diamond paste for testing polishing

 1 set
EQ-DGP

Two 12" PSA Diamond Lapping plates with 600 mesh and 800 mesh separately

 1 set
Consumables & Accessories (Click to view recommended spare parts list)
* Optional parts are not included in the standard package. You have to order separately. Prices are subject to change without notification.
