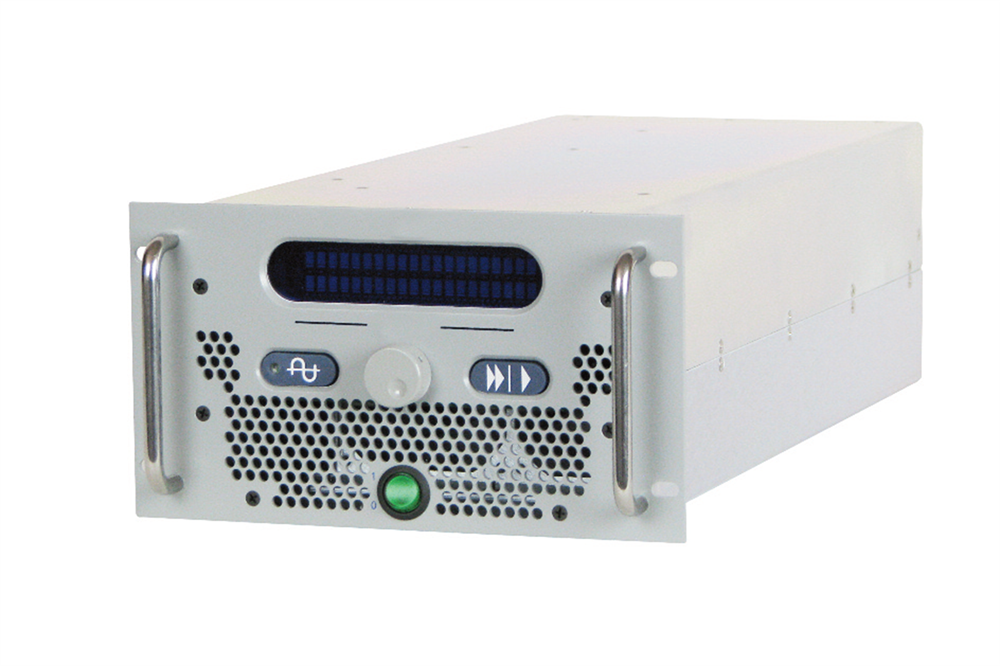

| Electrical Specification |
| AC Input Voltage |
- 208VAC; no neutral; 1 phase with ground.
|
| AC Line Frequency |
|
| AC Input Current: |
|
| Output Characteristics: |
- Up to 600W continuous forward power at the unit’s rear bulkhead RF connector into a 50 Ohm load. The forward power out is to track the command set-point for any load conditions where the reflected power is less than 100W.
|
| Accuracy/Regulation |
- ±2W or ±1.0% of set-point, whichever is greater, from 10% to 100% max output, as measured by either the actual output power and/or the forward analog readback signal.
|
| Short Term Stability |
- ±1.0% for output power set-point (10-100%) during one continuous hour of output.
|
| Long Term Stability |
- ±3.0% for output power set-point (10-100%) during 3 years of continuous output.
|
| Rise Time |
- Less than 200ms; from leading edge of enable signal to 90% of power level requested
|
| Zero Set-point |
- Less than 1.0W actual output power and less than 1.0W read back power when the set-point signal is at zero or at a negative
|
| Available frequencies |
- 400kHz, 2MHz, 13.56MHz, 27.12MHz, 40.68MHz, 60MHz
|
| Frequency stability |
|
| Output Filtering (for full power into 50 Ohms) |
- Harmonic Signals: Less than -40dBc
|
- Spurious Signals: Less than -40dBc
|
- AM & FM Noise (@ 50 KHz offset): Less than -40dBc
|
| Signals and Connections |
| Signal Input Impedance |
|
| Signal Input Isolation |
- 1000 VDC minimum to the A/C supply line.
|
| Input Power Connection |
- Harting HAN 5Q rear panel bulkhead connector.
|
- Mating connector:
- shell: Comdel JI0952, Harting 09200030427, strain relief: Comdel JI0950, Harting09000005082
- insert: Comdel JI0958, Harting 09120053101, female pin: Comdel JI0957, Harting 09330006202
|
- 15 pin sub miniature "D" type (female) receptacle.
|
| Control I/O Connector |
| DeviceNet Connector |
- 5 pin micro style (male).
|
| Output Power Connector |
- Type "N" female coaxial connector.
|
| RS232 Connector |
- 9 pin subminiature "D" type (female) receptacle.
|
Mechanical
|
| RF Unit Dimensions |
- 8.5"W x 5.25"H x 18.5"D ( 21.6cm x 13.4cm x 46.9cm)
|
| Weight |
|
| Mounting |
- Standard 19" EIA rack mounting with ½ rack filler panel.
|
| Environmental |
| Operating Temperature & Humidity: |
- +10 to +40° C (50 to 104° F) ambient, 5-85% R.H. (non-condensing, no formation of ice), 86-106 kPa. Temperature, humidity and air pressure operating range class 3K3 per prEN50178.
|
| Inlet Air Requirements: |
|
| Coolant Type: |
|
| Storage temperature/humidity/air pressure |
- -25 to +70° C (class 1k4 per EN50178), 5 - 95% humidity (non-condensing, no formation of ice, class 1k3), 70-106 kPa (class 1k4).
|
| Transport temperature/humidity/air pressure |
- -25 to +70° C, 5 - 95% humidity, 70-106 kPa
|
| Regulatory Compliance |
- This unit is designed to meet the safety compliance requirements of EN 61010-1:2010, UL 61010-1:2012, and CSA C22.2 No. 61010-1:2012. Certified compliant systems carry the TUV mark for safety and/or EMC to all appropriate latest international standards.
|
- This unit is designed and tested for full functionality through all SEMI F47-0200 voltage sag immunity events.
|
- The unit is designed to meet Samsung Power Vaccine requirements.
|
