Description

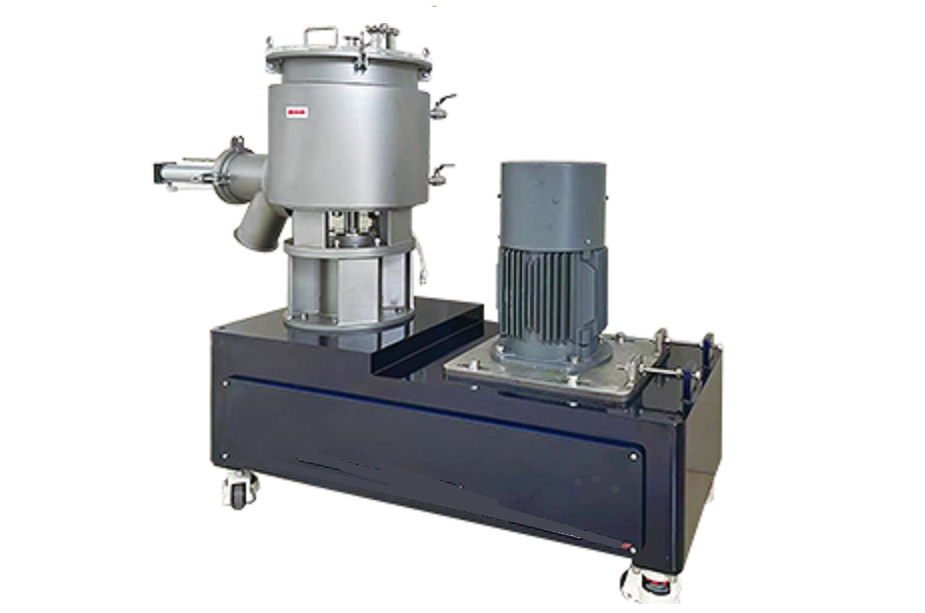

TSL-LL is a universal friction mixer for free-flowing raw materials for both dry powder and slurry. Circumferential speeds of 10 m/s to 30 m/s result in a marked mixing vortex, which can be used for powder dispersion, powder surface coating, and CO2 capture into cement.
Specifications:
Power Supply |
|

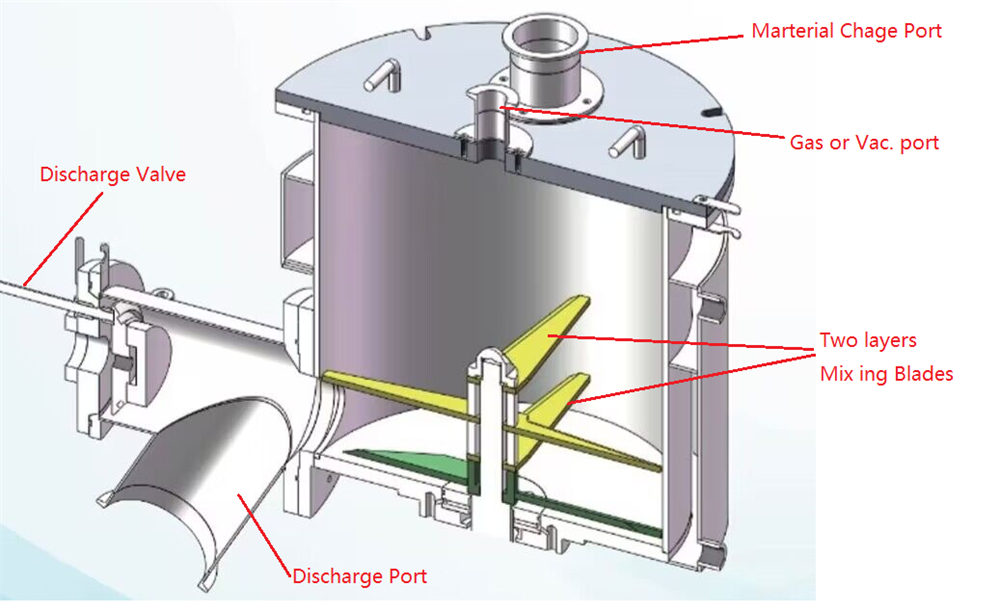

Mixing Vessel
|
- Materials: inside vessel SS 316 and Outside SS304
- Build-in temperature sensor
- Water cooling / Oil heating jacket outside of the vessel
- Material charge port, gas inlet, or vacuum port are built-in on the top of the vessel
- Material discharge ports with valves driven by compressive air, are built at the bottom of the vessel
- Double-layer mixing blades
|
Optional Capacity of Vessel
and Power |
Four types of vessel capacities are available below
- 5 L (Φ200 mm x H200 mm ), Max. speed: 1450 RPM, Power: 2.2 KW
- 30L (Φ350 mm x H350 mm ), Max. speed: 1300 RPM, Power: 5.5 KW
- 70L (Φ350 mm x H350 mm ), Max. speed: 700 RPM, Power: 7.0 K W
- 130L (Φ550 mm x H550 mm ), Max. speed: 500 RPM, Power: 15 KW
|
Optional Device |
- The vacuum pump is available ( click Pic. 1 to order )
- The temperature-controlled circulating water chiller is available ( Click Pic. 2 to order )
- The temperature-controlled recirculating oil heater up to 300oC is available ( Click Pic. 3 to order)
 Pic. 1  Pic. 2  Pic. 3 |
