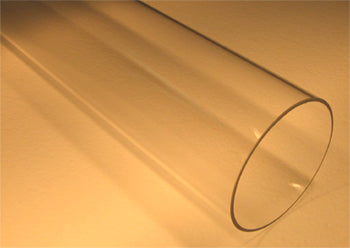

Quartz Tube: 25 OD x 21 IDx 1400 L mm (1"Dx55"L) for DIY Tube Furnace - TQ25D1400
  • Quartz Tube: 25 OD x 21 IDx 1400 L mm (1"Dx55"L) for DIY Tube Furnace - TQ25D1400
Quartz Tube: 25 OD x 21 IDx 1400 L mm (1"Dx55"L) for DIY Tube Furnace - TQ25D1400

Quartz Tube: 25 OD x 21 IDx 1400 L mm (1"Dx55"L) for DIY Tube Furnace - TQ25D1400

SKU: tq25d1400

Price: RFQ

Description

 MTI Corporation provides the high purity quartz tube as a replacement part for high-temperature tube furnaces in universities, companies, and national labs. It can be used at operating temperature up to 1200ºC. Purchase Notes: Please make sure the specification of the tube meets your need before making a purchase. Since Nov 10, 2016, we no longer accept return delivery of any tubes due to the fragile nature of the materials. All tubes are not refundable, not exchangeable, nor covered under the warranty (Consumables) . Please check the package for damages before accepting the delivery. For more information or damaged upon arrival please contact us . SPECIFICATIONS O.D 25mm ±0.5mm (1") I.D 21mm ±0.5mm (0.83") Tube Length 1400mm (55") Max. Operating Temperature 1200ºC Click here for SDS Application Notes For vacuum sealing, please choose vacuum flanges at the related products below This quartz tube is excellent for DIY tube furnaces below 1200°C Vacuum pressures may only be safely used up to 1000°C Quartz tubes are designed for use under vacuum and low pressure < 0.2 bars / 3 psi / 0.02 MPa To get longer tube service life, Please use a quartz or alumina crucible to carry the sample, instead of loading the sample directly inside the tube, please click the picture below to choose one crucible boat: Inspect your delivery: Please check the package for damages before accepting delivery. Should damages be found, please keep all packaging materials, take pictures, and report immediately to carrier/MTI.

O.D 25mm ±0.5mm (1")
I.D 21mm ±0.5mm (0.83")
Tube Length 1400mm (55")
Max. Operating Temperature 1200ºC
Click here for SDS
Application Notes
  • For vacuum sealing, please choose vacuum flanges at the related products below
  • This quartz tube is excellent for DIY tube furnaces below 1200°C
  • Vacuum pressures may only be safely used up to 1000°C
  • Quartz tubes are designed for use under vacuum and low pressure < 0.2 bars / 3 psi / 0.02 MPa
  • To get longer tube service life, Please use a quartz or alumina crucible to carry the sample, instead of loading the sample directly inside the tube, please click the picture below to choose one crucible boat:
