Thermocouple: K type for KSL1200XM / KSL1200XL - EQ-TCK200
  • Thermocouple: K type for KSL1200XM / KSL1200XL - EQ-TCK200
  • Thermocouple: K type for KSL1200XM / KSL1200XL - EQ-TCK200
Thermocouple: K type for KSL1200XM / KSL1200XL - EQ-TCK200

Thermocouple: K type for KSL1200XM / KSL1200XL - EQ-TCK200

SKU: thermocouple-k-type-for-ksl1200xm-ksl1200xl-eq-tc-k-200

Price: RFQ

Description

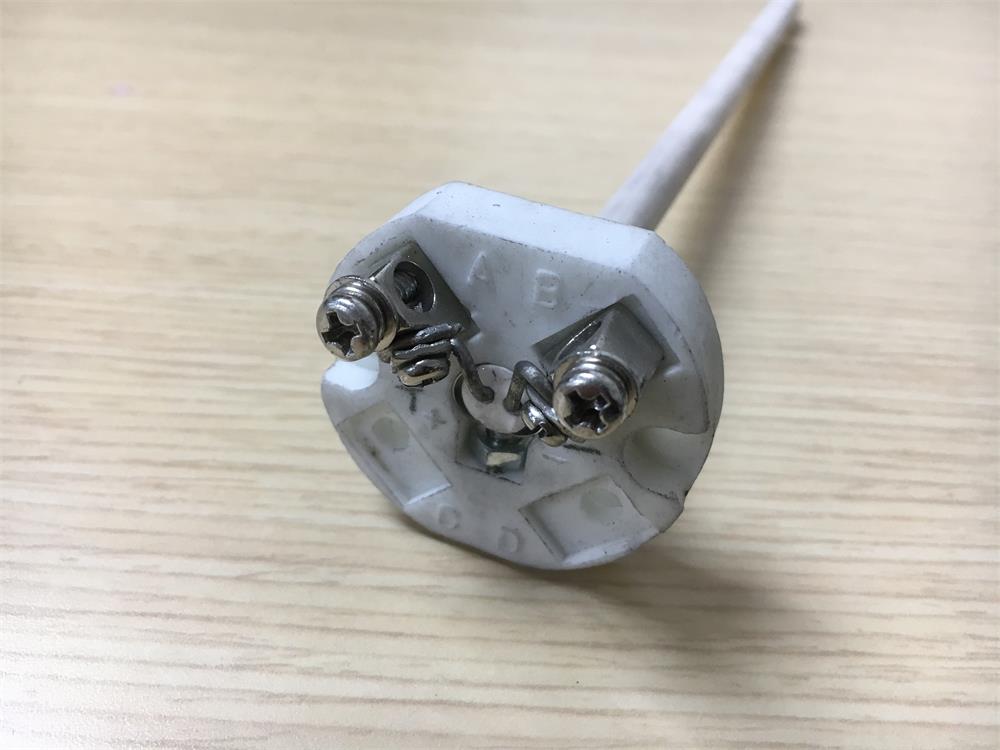

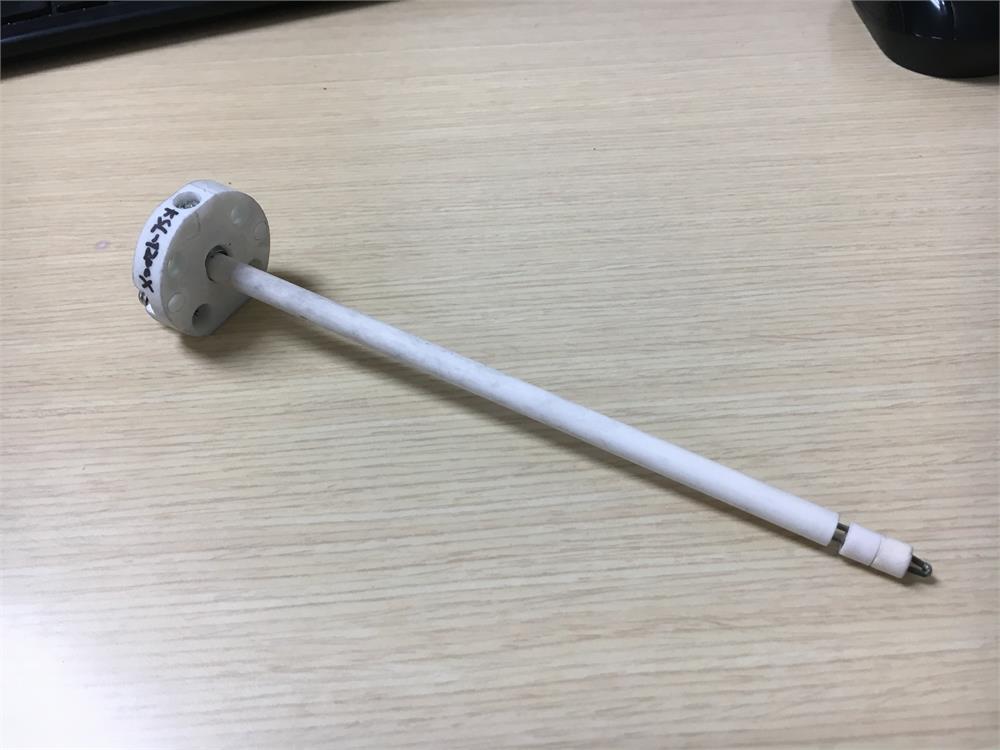

 Features: K type thermocouple for high heat applications at temperatures up to 1250 o C Measures room temperature - 1250 o C, Suitable for KSL-1200X-M / KSL-1200X-L Thermocouple Length: 160mm (6.25") Ceramic end holder with screws to connect TC with temperature controller Application Note: If necessary, please check out K type thermocouple extension wire with mini male plug . Using compensating wires is equivalent to stretching them to keep them operating at a constant temperature. The advantages of using compensating cables are saving material costs and solving the problem of constant temperature, etc. There are 2 polarities for K type thermocouple: positive and negative. Please check the polarity of K type thermocouple before use. Wrong polarity may cause temperature measuring error. It is also easy to test the polarity of K type thermocouples. The negative wire is MORE magnetic than the positive wire. Just put a magnet up to each wire. One will be more magnetic than the other.
